Double Bed Raschel Knitting Machine DR1-42

Classification : Double Bed Raschel Knitting Machine

FUNG CHANG INDUSTRIAL CO., LTD.

FUNG CHANG INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-3-4717824
Fax: 886-3-4717702
Contact Person: Mr.Yu

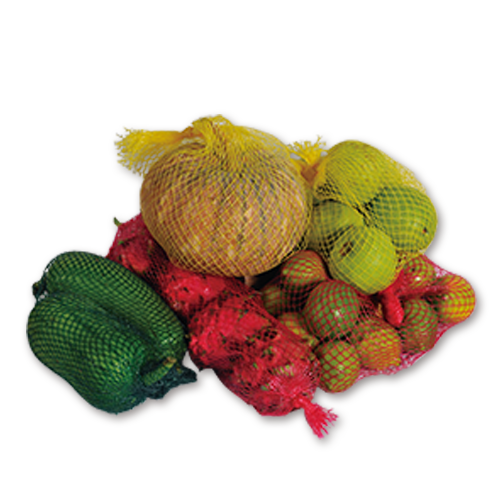

Model DR1-42 is special model for making tubular mesh packing bag, the modification is under the base of our DR serious. It can make continuous tubular bags, is suit for all of agriculture products auto packing, especially for small package using in super market and shopping center.

The advantage of DR1-42 is high out put, perfect yarn feeding system and flexible size adjustment. The same mesh but different size bags will be made in the same time. The performance is higher than the traditional circular knitting machine.

The size of bag is determined by the yarn numbers and mesh size. This machine is equipped with 12 gauges / inch latch needle, within 1008 yarn numbers; it can knit different size of bags in the same machine and no need to change the cylinder.

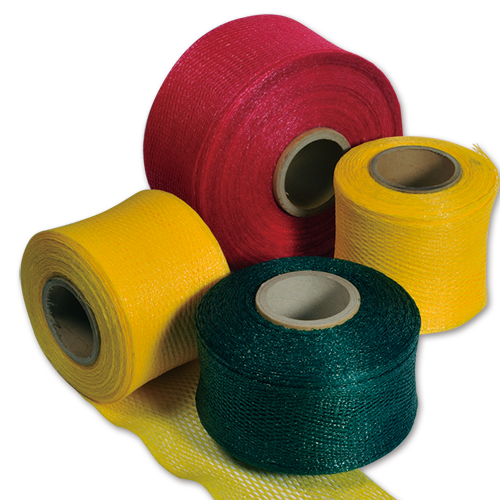

DR1-42 is suitable for tubular mesh bag.
■ The size of mesh is adjustable.
■ The size of bag is adjustable.
■ Slitting and Extension machine can offer the yarn at min.100 denier.

Model DR1-42
Available Width 42"
Gauge of Needle Bed 12G/1"
Drive Bar (Total) 8
Main Motor W/Inverter 2HP x 4P
Power Consumption 2.65KW
Yarn Left Off System Slitting & Extension Machine or Creel
Dimension L x W x H (mm) 2,225 x 1,125 x 2,115

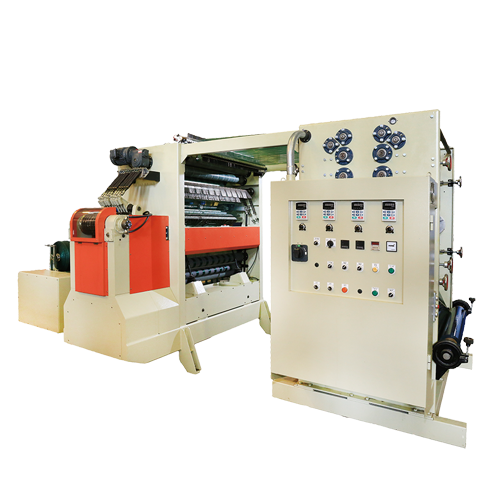

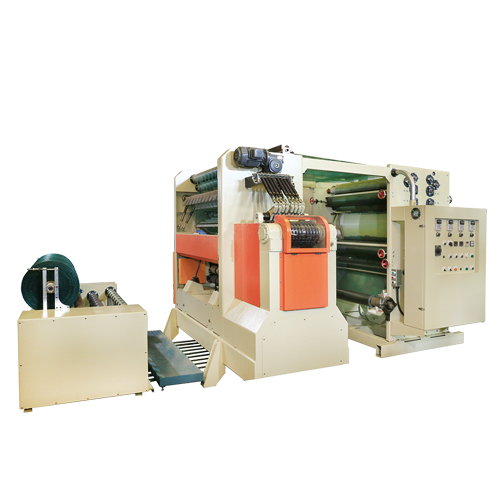

Model SE-120-T
Available Width 118cm
Extension Multiple 5-10
Number of Film Single layer x 2 rolles (Max. Dia: 70cm)
Power Consumption 6.2KW
Heater Capacity 5KW
Dimension L x W x H (mm) 2,125 x 1,270 x 2,025
