PE Monofilament Making Machine FCM-65

Classification : Extruder

FUNG CHANG INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-3-4717824

Fax: 886-3-4717702

Contact Person: Mr.Yu

Video Inquiry Now

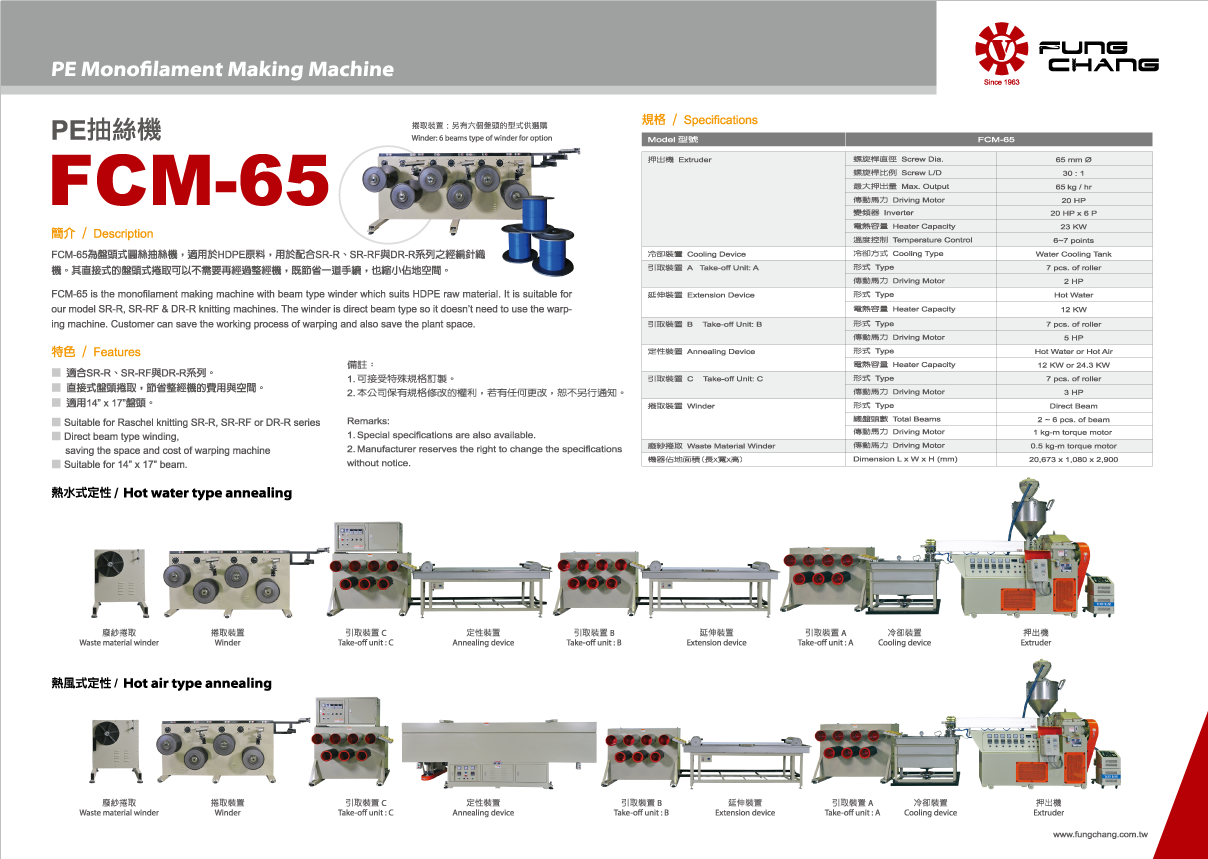

FCM-65 is the monofilament making machine with beam type winder which suits HDPE raw material.
It is suitable for our model SR-R, SR-RF and DR-R knitting machines.
The winder is direct beam type so it does not need to use warping machine.
Customer can save the working process of warping and the plant space.

Remarks:
1.Special specifications are also available.
2.Manufacturer reserves the right to change the specifications without notice.

Suitable for Raschel knitting machine SR-R, SR-RF or DR-R Series.

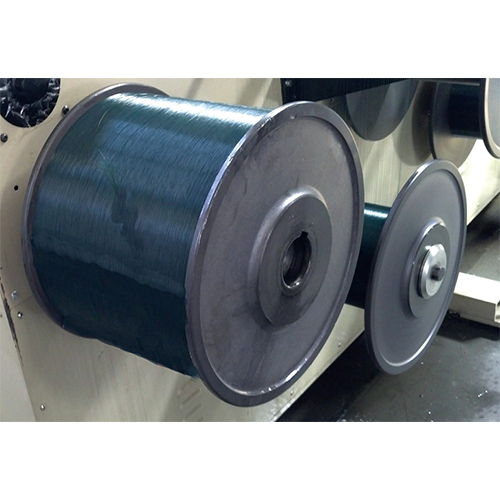

Direct beam type winding, saving the space and cost of warping machine.
Suitable for 14” x 17” beam.

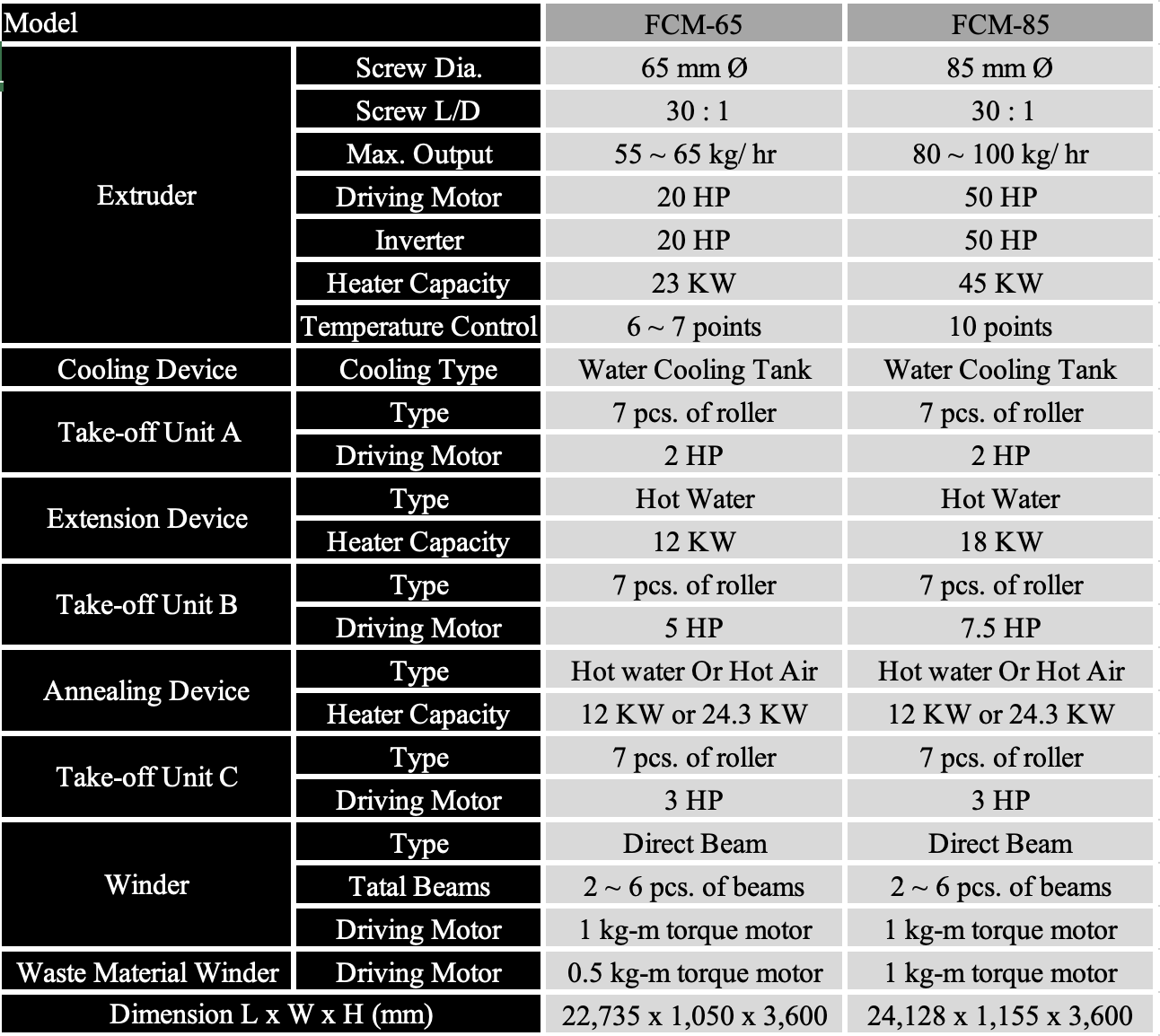

Model	FCM-65
Extruder	Screw Dia. Screw L/D Max. Output Driving Motor Inverter Heater Capacity Temperature Control	65 mm 30 : 1 65 kg / hr 20HP 20HP x 6P 23KW 6~7 points
Cooling Device	Cooling Type	Water Cooling Tank
A Take-off Unit: A	Type Driving Motor	7 pcs. of roller 2HP
Extension Device	Type Heater Capacity	Hot Water 12KW
B Take-off Unit: B	Type Driving Motor	7 pcs. of roller 5HP
Annealing Device	Type Heater Capacity	Hot Water or Hot Air 12KW or 24.3KW
C Take-off Unit: C	Type Driving Motor	7 pcs. of roller 3HP
Winder	Type Total Beams Driving Motor	Direct Beam 2~6 pcs. of beam 1kg-m torque motor
Waste Material Winder	Driving Motor	0.5kg-m torque motor
Dimension L x W x H (mm)	20,673 x 1,080 x 2,900 (mm)
