KT Series Injection Molding Machine (ROTARY TABLE)

Classification : Injection Molding Machine - KT series

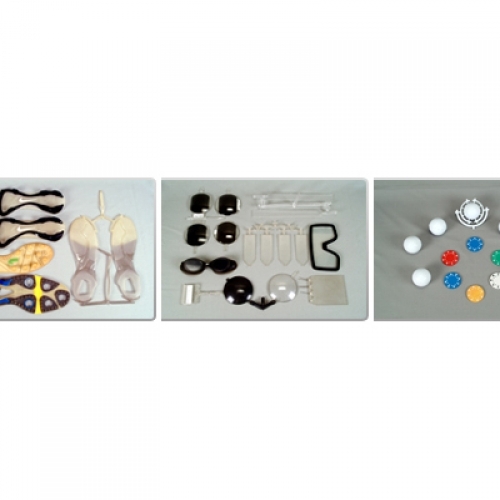

Applications: Houseware & Kitchen Lifestyle & Cosmetics Automotive Applications Optical Elements Sports & Outdoor Construction Materials Knife And Fork Sets Filter Razor Handle Toothbrush Handle

TAIWAN KINKI MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-2-2281-3361

Fax: 886-2-2281-8206

Contact Person: Terry Hsieh

Blog Video Inquiry Now

KT Series Injection Molding Machine

Vertical mold clamping and injection, small footprint and high degree of precision. This machine is ideal for injection of medium and small products with inclusions.
Dual-cylinder injection system offers high injecting pressure for fast operation, making this injection machine your best choice for production of thin items.
Direct-pressure mold clamp allows even injection force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
Choose a platen or a rotary plate in accordance with the type of products to be injected, in order to achieve the best possible in feed and injection effects.
This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
There are also many other control systems that facilitate flexible production and keep costs low while maximizing precision.

Machine Type	Unit	KT-100-R			KT-200-R			KT-300-R			KT-400-R			KT-500-R			KT-600R			KT-700R			KT-800R			KT-900R
Screw Diameter	mm	20	25	25	30	35	30	35	40	35	40	45	50	36	42	50	45	50	55	50	55	60	60	65	70	65	70	80
Injection Pressure	kg/cm²	1715	1098	2509	1742	1280	2170	1594	1220	2171	1663	1314	1064	2436	1789	1263	2129	1742	1425	2688	2221	1866	1866	1590	1371	1855	1600	1225
Theoretical Shot Volume	cm³	31	49	59	85	115	99	135	176	135	176	223	275	183	249	353	349	432	522	471	570	678	678	796	923	995	1154	1507
Max. Shot Weight(PS)	g	29	45	54	77	105	90	123	160	123	160	203	250	166	226	321	314	388	469	424	513	610	617	724	840	905	1038	1356
Max. Shot Weight(PS)	oz	1	1.5	1.9	2.7	3.7	3.2	4.3	5.7	4.3	5.7	7.2	8.9	5.8	8	11.3	11.2	13.8	16.7	15.1	18.3	22	22	25	30	32	37.3	48.8
Injection Rate	cm³/sec	27	42	36	52	71	51	69	90	98	125	159	196	92	124	177	129	160	193	148.3	178	212.5	247	291	336	193	224	319
Screw Stroke	mm	100			120			140			140			180			220			240			240			300
Screw Speed Max.	rpm	0-205			0-190			0-175			0-250			0-180			220			0-160			0-140			0-126
Nozzle Contact Force	tons	4.4			2.4			2.6			2.9			3.3			4.2			6			6.2			6.7
Nozzle Retraction Stroke	mm	150			180			200			220			300			300			320			340			350
Number of Temperature Control	-	2			3			3			4			5			5			6			7			8
Material Hopper Capacity	\|	15			20			20			30			30			90			90			90			90

Machine Type	Unit	KT-100-R	KT-200-R	KT-300-R	KT-400-R	KT-500-R	KT-600R	KT-700R	KT-800R	KT-900R
Clamping Force	tons	15	45	55	85	120	160	200	250	300
Opening Force	tons	7	8.3	13.5	10.5	15	20	26	28	34
Platen Size	mm	Ø580	Ø740	Ø880	Ø1000	Ø1200	Ø1400	Ø1600	Ø1800	Ø1900
Distance Between Tie Bare	mm	-	-	-	-	-	-	-	-	-
Min. Mold Height	mm	125	200/150	200/150	250/200	250/200	310/250	360/300	410/350	460/400
Opening Stroke	mm	140	200	200	250	250	350	350	400	500
Max. Open Daylight	mm	265	400/350	400/350	500/450	500/450	660/600	710/650	810/750	960/900
Ejector Force	tons	1.3	1.3	1.3	2.1	4.8	5.2	5.2	6.8	8.5
Ejector Stroke	mm	50	50	50	75	75	95	150	200	250

Machine Type	Unit	KT-100-R	KT-200-R	KT-300-R	KT-400-R	KT-500-R	KT-600R	KT-700R	KT-800R	KT-900R
Slide Stroke	mm	-	-	-	-	-	-	-	-	-
Rotary Station	-	2-3	2-4	2-4	2-4	2-4	2-3	2-4	2-4	2-4
Max. Mold Weight	kg	60x2/40x3	90x2/80x3	90x2/80x3	150x2/100x3	225x2/150x3	450x2/300x3	750x2/500x3	1050x2/700x3	1200x2/800x3
Station Accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02

KT-100-R	KT-200-R	KT-300-R	KT-400-R	KT-500-R	KT-600R	KT-700R	KT-800R	KT-900R
140	140	140	140	140	175	175	175	175
26	43-17	56-10	95-17	114-19	125-19	136-19	153-19	184-19
100	130	150	400	450	550	620	720	800
400-600	600-800	800-1000	1200-1500	1500-1800	1800-2000	2000-2200	2000-2200	2000-2200
3.5	7.5	11	14.7	18.4	22	30	37.3	55
2	3.5	4.5	5.6	7.5	14.3	17	18	23
5.5	11	15.5	20.3	25.9	36.3	47	55.3	78

Machine Type	Unit	KT-100-R	KT-200-R	KT-300-R	KT-400-R	KT-500-R	KT-600R	KT-700R	KT-800R	KT-900R
Machine Weight	tons	1.1	2.6	2.8	5.5	6.8	7.2	13.2	16	18.4
Machine Dimensions(L x W x H)	m	1.3x1.25x2.37	1.98x1.48x3.08	2.22x1.89x3.33	2.0x1.7x3.2	2.7x2x3.33	3.3x2.1x4.3	3.4x2.2x4.5	3.6x2.1x4.8	4.3x2.2x5.7
Shipping Weight	tons	1.4	3.1	3.2	6.2	7.5	8.0	14.4	17	19.6
Shipping Measurements(L x W x H)	m	1.7x1.4x2.3	2.1x1.6x2.3	2.4x2.2x2.6	2.3x2x1.8	2.9x2.2x1.9	3.5x2.3x2	3.6x2.3x2.2	4.0x2.3x2.3	4.6x2.3x2.4
