KT Series Injection Molding Machine (SINGLE SLIDE)

Classification : Injection Molding Machine - KT series

Country: Taiwan

Phone: 886-2-2281-3361

Fax: 886-2-2281-8206

Contact Person: Terry Hsieh

KT Series Injection Molding Machine

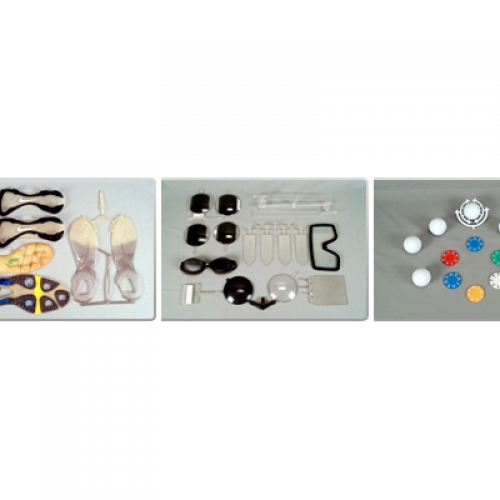

Vertical mold clamping and injection, small footprint and high degree of precision. This machine is ideal for injection of medium and small products with inclusions.
Dual-cylinder injection system offers high injecting pressure for fast operation, making this injection machine your best choice for production of thin items.
Direct-pressure mold clamp allows even injection force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
Choose a platen or a rotary plate in accordance with the type of products to be injected, in order to achieve the best possible in feed and injection effects.
This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
There are also many other control systems that facilitate flexible production and keep costs low while maximizing precision.

Machine Type	Unit	K2S(D)			KT-200-D(DM)			KT-300-D(DM)			KT-400-D(DM)			KT-500-D(DM)			KT-600-D(DM)			KT-700-D(DM)			KT-800-D(DM)			KT-900-D(DM)
Screw Diameter	mm	20	25	20	25	30	25	30	35	30	35	40	35	40	45	50	35	40	45	50	40	45	50	55	45	50	55	60	60	65	70
Injection Pressure	kg/cm²	1715	1098	2730	1747	1213	2509	1742	1280	2170	1594	1220	2171	1663	1314	1064	2577	1973	1559	1263	2695	2129	1724	1425	3318	2688	2221	1866	1866	1590	1371
Theoretical Shot Volume	cm³	31	49	31	49	71	59	85	115	99	135	176	135	176	223	275	173	226	286	353	276	349	432	522	381	471	570	678	678	796	923
Max. Shot Weight(PS)	g	29	45	29	45	64	54	77	105	90	135	160	123	160	203	250	158	206	261	321	248	314	388	469	343	424	513	610	617	724	840
Max. Shot Weight(PS)	oz	1	1.5	1	1.6	2.3	1.9	2.7	3.7	3.2	4.3	5.7	4.3	5.7	7.2	8.9	5.6	7.3	9.3	11.3	8.8	11.2	13.8	16.7	12.2	15.1	18.3	22	22	25	30
Injection Rate	cm³/sec	20	30	22	35	50	36	52	71	51	69	90	82	107	135	167	87	114	144	177	102	129.3	159.6	193	123.6	148.3	178	212.5	247	291	336
Screw Stroke	mm	100			100			120			140			140			180			220			240			240
Screw Speed Max.	rpm	0-215			0-205			0-190			0-175			0-200			0-180			0-220			0-160			0-140
Nozzle Contact Force	tons	-			2.0			2.4			2.6			2.9			3.3			4.2			6			8.7
Nozzle Retraction Stroke	mm	-			140			180			200			220			300			300			320			340
Number of Temperature Control	-	2			3			3			3			4			5			5			5			5
Material Hopper Capacity	\|	15				20				20				30				30				30				30				30		30

Machine Type	Unit	K2S(D)	KT-200-D(DM)	KT-300-D(DM)	KT-400-D(DM)	KT-500-D(DM)	KT-600-D(DM)	KT-700-D(DM)	KT-800-D(DM)	KT-900-D(DM)
Machine Weight	tons	0.5/0.55	1.1/1.2/1.3	1.4/1.5/1.6	2.1/2.3/2.5	4.5/4.8/5	4.9/5.2/5.4	5.2/5.6	5.5/5.9	6.5/7.2
Machine Dimensions(L x W x H)	m	1.4x0.8x2.1	1.6x1.24x1.9	1.7x1.35x2.15	1.8x1.45x2.65	2.0x1.7x3.2	2.4x1.6x3.1	2.1x1.5x4.3	2.1x1.7x4.5	2.5x2.2x5.2
Shipping Weight	tons	0.75/0.85	1.3/1.5/1.9	1.7/1.9/2.1	2.6/2.9/3.2	5.1/5.6/5.8	5.6/6/6.1	5.6/6.3	5.9/6.5	7.2/8.0
Shipping Measurements(L x W x H)	m	1.6x1.0x2.23	1.8x1.45x2.1	1.9x1.5x2.2	2.1x1.7x1.5	4.2x2.0x1.7	4.6x2.2x1.8	4.7x2.4x1.9	5.0x2.4x2.1	6.0x2.4x2.4
