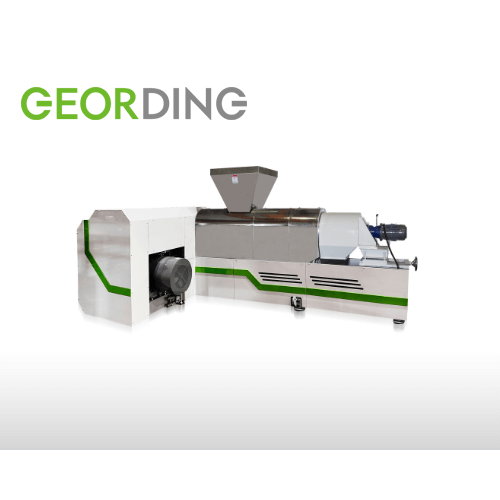

Force Feeding Two Stages Die-Face Cutting Recycling & Pelletizing Machine

Classification : Plastic Recycling Machine

GEOR-DING MACHINERY CO., LTD.

GEOR-DING MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-26821888
Fax: 886-4-26819777
Contact Person: Jessica Liu

High torsion, low-noice; temp. controls stability; double degassing

  • Suitable for a variety of raw materials.
  • Easy to operate; prority transcends traditional model.
  • Low labor cost.
  • Optional equipment- crusher and mixer, enables every batch of material to mix well.
  • Two stages filter makes material more clean


Model

GD-85F-2DF

GD-100F-2DF

GD-120F-2DF

GD-150F-2DF

GD-175F-2DF

Main Extruder

Screw Diameter L/D Ratio

32

36

36

36

36

Main Power

40~60HP

60~100HP

100~150HP

150~250HP

200~300HP

Temp. Control

5 zone

7 zone

8 zone

9 zone

10 zone

Heating Capacity

36KW

50KW

75KW

110KW

150KW

Hydraulic Power

3HP

5HP

5HP

7.5HP

7.5HP

Enforce Hopper Power

3HP

3HP

5HP

7.5HP

7.5HP

Max. Outpou/Hr

100~150kg

180~250kg

250~500kg

500~800kg

800~1000kg

Sub-extruder

Screw Diameter L/D Ratio

8

8

8

8

8

Power

10HP

20HP

30HP

40HP

50HP

Temp. Control

3 zone

4 zone

5 zone

6 zone

6 zone

Heating Capacity

22KW

25KW

38KW

40KW

58KW

Die Face Cutter

Power

2HP

3HP

3HP

5HP

7.5HP

Separator

Power

10HP

10HP

10HP

15HP

20HP

Vibration Motor

Motor

1/4HP*2

1/4HP*2

1/4HP*2

1/4HP*2

3/4HP*2

Blower

Power

3HP

5HP

5HP

7.5HP

10HP

Storage Barrel

Capacity

1000L

1000L

1000L

1000L

1000L


PP/PE Parti-Colour


PP/PE Cap


HDPE Hydrochloric Acid Tank
