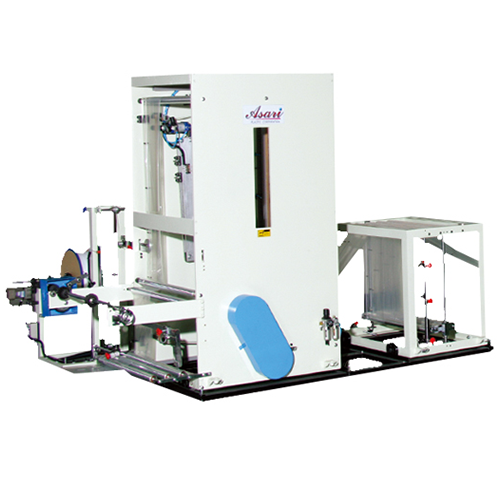

Zipper Applicator And High Speed Silicone Carpet Side Sealing Machine

Classification : Bag Making

ASARI PLASTIC CORPORATION

Country: Taiwan

Phone: 886-6-5933-566

Fax: 886-6-5933-567

Contact Person: Mr. Liang

Inquiry Now

The unit suitable for LDPE PP OPP CPP BOPP.
The machine uses fully automatic digitalized servo motor to control length; it is easy for operation and provides strong sealing and quality appearance.
Process of production begins from rolled film, triangular folding device, automatic edge alignment, slitting, zipper attachment, automatic slider insertion, photo cell, hole punching, heat cutting and seal and ends with automatic counter; all of the above operations are fully automate by PLC system.
The machine equips automatic stop equipment for running out of material, photo cell error and temperature abnormality.

Zipper Applicator
Take-Up Motor	1HP AC+Inverter
Teflon Heat Resistant Tape	4Pc
Copper Attachment Knife	2Pc
Side Slitting Knife	1 Set
Zipper Storage Frame	1 Set
800mm Take-Up Roller	1 Set
Side Sealing Unit
Bag Type	Side Sealing
Bag Length	500mm
Bag Width	700mm
Bag Thickness	0.04~0.2mm
Speed	Side Seal Bag 30~230 pc/min
	Zipper Bag 30~140 pc/min
Tension Control Unit
Main Motor	AC 2HP+Inverter

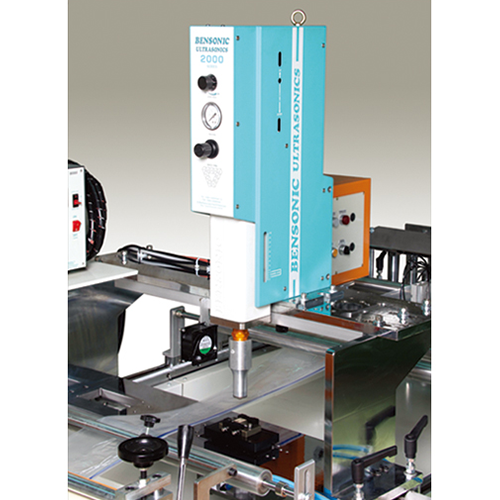

Ultrasonic Stamping Unit	2000W
Silicon Carpet Heat Sealing
Alloy Sealing Knife	1 Set
Cooling Pressure Plate 1/8HP Water Pump Motor
Photo Cell	German SICK x 1 Set

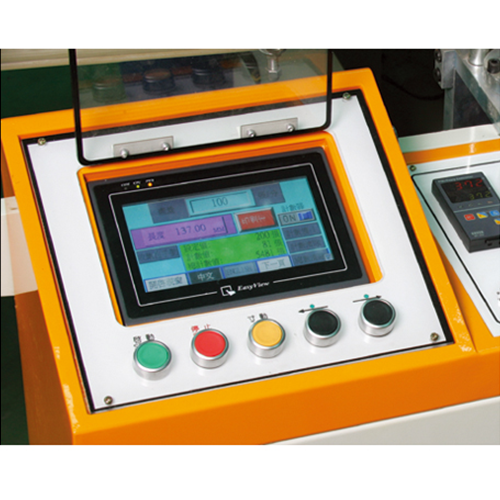

HCI Touch Screen Interface
Feeding Method	2000W Japan Servo Motor
Collector
PLC Control System
Total Power Required	8 Kw
Suitable for string like zipper profile
Selective Equipment
Automatic Slider Insertion	Perforating Knife
White Tape Reinforcement Unit	Gusseting Unit
Varies Hole Punch Unit	CE Self Declaration Modification
Triangular Folding Unit with EPC	Hanger Insertion Unit
