Automatic High-Speed Rotogravure Printing Machine

Automatic High-Speed Rotogravure Printing Machine

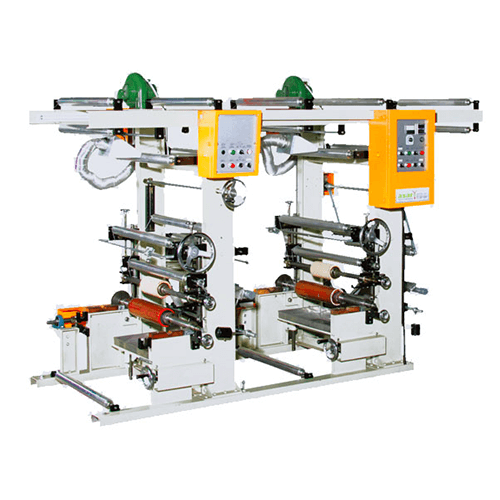

Automatic High-Speed Rotogravure Printing Machine(ARP)
Classification : Printing
ASARI PLASTIC CORPORATION
ASARI PLASTIC CORPORATION
Country: Taiwan
Phone: 886-6-5933-566
Fax: 886-6-5933-567
Contact Person: Mr. Liang
E-catalog Inquiry Now

• This machine is designed for printing on materials such as OPP, PE, PP, PVC, shrinkable film, wrapping paper, and aluminum foil.

• The machine uses one piece cast machine frame, EPC web guided device, and auto-tension controller to improve performance.

• Printing can performe synchronically on front and reverse.

• Printing range from 1 to 12 colors.

• Main machine is controlled and driven by AC motor with inverter, no adjustment is required and easy to operate.

• The machine will stop automatically when running out of materials.

• Great stability and continuous high speed to increase efficiency.

MODEL ARP800 ARP1000
One Process Color Printing 1 2 3 4 5 6 7 8
Printing Speed 20~90m/min 20~90m/min
Max. Printing Width 800mm 1000mm
Printing Length 300mm~1000mm 300mm~1000mm
Thickness 0.018mm~0.2mm 0.018mm~0.2mm
Max. Winding Diameter. 750mmf 750mmf
Drying Equipment Heater style, Two-step control, 7.2 kw for each color
AC Driving Motor 2HP 2HP 3HP 5HP 5HP 7.5HP 7.5HP 10HP
Power Required (kw) 12.4 19.6 27.5 36.2 44.9 54.6 61.8 71.7
Machine Dimension:
LxWxH (cm) 		270x158
x215 		405x158
x215 		540x158
x215 		675x158
x215 		810x158
x215 		945x158
x215 		1080x158
x215 		1215x158
x215
270x178
x215 		405x178
x215 		540x178
x215 		675x178
x215 		810x178
x215 		945x178
x215 		1080x178
x215 		1215x178
x215
Machine Weight (kg) 1150 1700 2250 2800 3350 3900 4450 5000
1230 1780 2330 2880 3430 3980 4530 5080
Packed Dimension:
LxWxH (cm) 		285x168
x233 		420x168
x233 		555x168
x233 		690x168
x233 		825x168
x233 		960x168
x233 		1095x168
x233 		1230x168
x233
285x188
x233 		420x188
x233 		555x188
x233 		690x188
x233 		825x188
x233 		60x188
x233 		1095x188
x233 		1230x188
x233
Gross Weight (kg) 1550 2180 2810 3420 4050 4680 5310 5920
1680 2310 2660 3550 4180 4810 54400 6050
