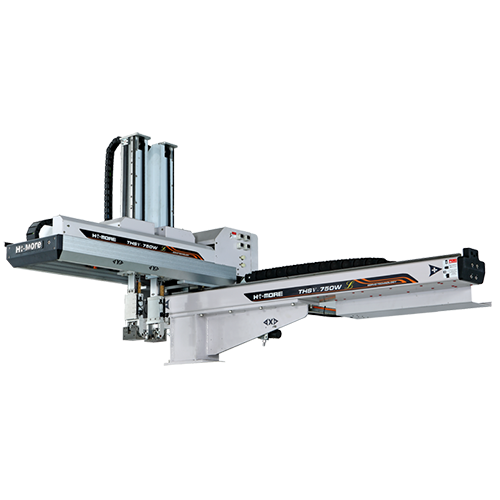

THS 850/950

Classification : THS series 3-5 Axis Servo Series

HI-MORE ROBOT CO., LTD.

Country: Taiwan

Phone: 886-3-3811613

Fax: 886-3-3818559

Contact Person: Vic Chen

Inquiry Now

‧ Equipped with mold document for management function (file)

‧ Free programmable palletizing/ stacking 3D screen

‧ User friendly FREE programmable / TEACH

‧ Built-in PLC software (ladder)

MODEL	THS-850	THS-950
Items	III/V	III/V
Molding Machine Size (ton)	180-250	250-350
A. Full length	2420/2500	2630/2730
B. Full width	1425	1525
C. Height of main arm	1475	1645
D. height of sub arm	X/1475	X/1645
E. max. radius of products	337	337
F. min. distance bw 2 arms	X/60	X/60
G. stand-bv of mian arm	86	136
H. stand-bv of sub arm	X/133	X/183
I. distance bw main arm to base	120/255	110/245
J. distance bw sub arm to base	X/105	X/95
K. max. for. pos. of main arm	790	880
R. Height control box	770	820
Y.Control box to main arm center	810/870	910/970
X.Traverse stroke	1370	1500
U. height of base	275	325
Zm. up/down stroke of main arm	800	900
Zs. up/down stroke of sub arm	X/850	X950
PAYLOAD	5KG
