PURPOSE OF MACHINE

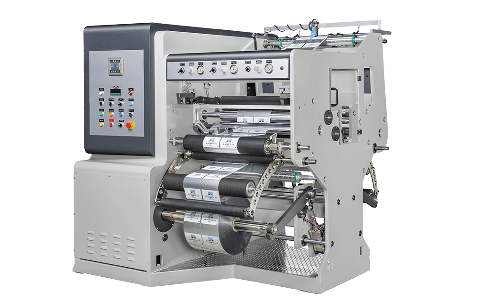

  • The INSPECT-V model is designed for the width of web not more than 600mm; it is suitable for rewinding/inspecting the web after slit. 3 motors controlled ensure stable tension performance. Synchronous stroboscope provides a better view of web.

Memory Function

Memory Function

  • When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, the defects will be stopped at center of inspection table for operator to easily find and cut off the part.

Man-machine Interface (MMI)

Man-machine Interface (MMI)

  • All models come standard with MMI touch screen interface. The touch screen has high resolution color as well as a long service life. All models come standard with independent and free-standing operator panels.

Pressure Wheel

Pressure Wheel

Model

INSPECT-V600

Speed(M/min)

300

Available width(mm)

600

Unwind diameter(mm)

600

Rewind diameter(mm)

600

STANDARD

Digital guiding system

Shaftiess unwind/rewind

N/A

Shaft unwind/rewind

N/A

Cantileverd unwind/rewind unit with 3” air shaft

Forward and backward operation

Tension transducers for unwind and rewind unit

Dancer tension control on unwind and rewind unit

N/A

Taper tension mode

OPTIONAL

Auto. Defects detection system(100% inspection)

Stroboscope

Splice Table

Trim Slitting System

Unwind and rewind diameter increase – 1000mm.

N/A

Unwind 6” chuck

Rewind 6” chuck

CE/UL
