Classification : Zipper Extrusion
Country: Taiwan
Phone: 886-6-5933-566
Fax: 886-6-5933-567
Contact Person: Mr. Liang
- AB45AZ Zipper Profile Extruder is the pioneer of the Chinese world; The quality, output speed, service, research and development are deeply love by those in Europe, America, Japan and other countries.

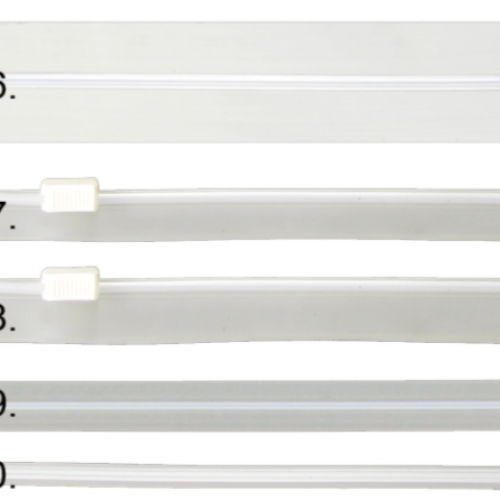

- Changing die can produce all kinds of zipper profile.
- The machine is suitable for LDPE and PP resin.
- The machine produces high quality zipper profile roll from the extrusion mold, chilling water system, vacuum high-pressure air-dryer, zipper closures joint device, and automatic tension control and servo winding unit with automatic calculation of width/length/quantity.
- With additional f25mm extruder the machine can produce co-extrusion colored zipper profile or ultra low temperature zipper profile with color from LDPE, LLDPE, PP or EVA.
Main Unit | ||
Main Motor | 10HP AC *1 Set | |
Total Power Require | 17Kw | |
JSI Gearbox | 3-Axis 1 SET | |
Barrel & screw | L/D 1:30 42mm SACM-645 | |
Output | 20~60m/min (Ourput varies depend on resin, cooling, profile, profile size, operator and etc) | |
Stainless Steel Circulation Water Tank | 1 SET | |
High-Pressure Vacuum Air Blower | AC 2HP | |
Take-up Motor | AC 1/2HP Gear Inverter | |
Take-up Rubber Roll | x 3 Set | |
Main & Secondary Control Panel | ||
Zipper Closure Joint Unit | x 1 Set | |
Chiller For Two Unit | 5HP | |
Include 2 Die | LD1513 PP1513 LD2004 PP2004 LD1518 PP2010 PP2225 LD2025 LD2040 | |
Manual Operate Joint Unit | ||
Control Panel | ||
DC Motor | DC 1/4 HP | |
Take-Up Frame & Take-Up Roll | ||
Manual Operate Winder | ||
Winder Motor | ||
L-R DC Motor | DC 1/8 HP | |
L-R Return | ||
DC Motor Governor | ||
Torque Motor Governor | ||
Manual Operate Winder | ||
Toolbox, Heater, Temperature Controller, On/Off Switch, Filter |
