Classification : Bag Making
Country: Taiwan
Phone: 886-6-5933-566
Fax: 886-6-5933-567
Contact Person: Mr. Liang

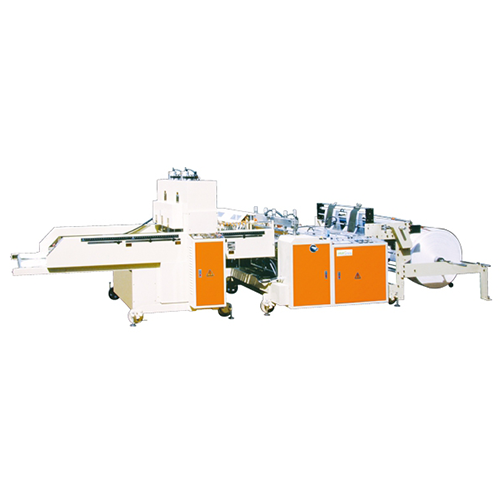

- Heat seal-suitable for T-shirt bags.
- Dual track operation for twin lines printed bags.
- HCI touch sceen for simple operation.
- Sevro motor feeding control for high-speed production.
- Auto-punching bags folding device.
- Punch-out scraps are collected by conveyor for easy disposal.
- Air blowing out feed system incorporating with bottom smoothing device. Ensure neatly bags are stacked for accurate bags gripping and punching.
- Automatic punching machine use air pressure to push oil hydraulics. Easily operation, without noise.
| MODEL | AKH-500V | AKH-800V | AKH-1000V |
| Bag width (each line) | 500 mm x 1 | 400 mm x 2 | 500 mm x 1 |
| Bag Length (Max) | 300~700 mm | 300~700 mm | 300~700 mm |
| Production Speed | 120 Meter/min:150~320 Cycle/min | 120 Meter/min:150~320 Cycle/min | 120 Meter/min:150~320 Cycle/min |
| Thickness | 0.010~0.035 m/m | 0.010~0.035 m/m | 0.010~0.035 m/m |
| Main Motor | 2 HP | 2 HP | 2 HP |
| Heater | 5 KW | 7 KW | 8 KW |
| Power Requires | 7 KW | 10 KW | 12 KW |
| Air Volume & Pressure | 5 kg/cm2: 500 Ni/min | 7 kg/cm2: 700 Ni/min | 7 kg/cm2: 700 Ni/min |
| Dimension LxWx H | 625 x 120 x 175 (cm) | 625 x 185 x 175 (cm) | 625 x 205 x 175 (cm) |
| Machine Weight | 1800kgs | 2500kgs | 2600kgs |
| Packing LxWxH (cm) | 215 x 130 x 150 : 350 x 120 x 177 | 215 x 200 x 150 : 350 x 160 x 177 | 215 x 220 x 150 : 350 x 215 x 177 |
| Gross Weight | 2300 kgs | 2900 kgs | 3100 kgs |
