Automatic Blow Molding machine- O Series

Automatic Blow Molding machine- O Series
Classification : Automatic Blow Molding Machine
FULL SHINE PLASTIC MACHINERY CO., LTD.
FULL SHINE PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang
Inquiry Now
● Carriage Movement by Tie Bars with Hydraulic System to Move as V-type Oblique Movement.
● PLC Program with Separate Electric Control Panel.
● Equipped with Auto Cutting Device, Conveyor, Parison Wall Thickness Controller as Option.
● High-efficient Plasticizing Extrusion Screw for Processing Materials Completely.
● Full Shine Special-designed Brake System for the Carriage to Provide Stable Movement and Swift Positioning.
EXPOSITION OF FULL SHINE'S MACHINE MODEL
SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS-40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
FS-45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
FS-55 (O) Standard / Oblique (T) Three Mold Heads   (D) Two Layers
FS-65 (A) Pneumatic (F) Four Mold Heads   (T) Three Layers
FS-75 (L) Frontal (E) Eight Mold Heads   (F) Four Layers
FS-80 (I) Lateral     (L) Six Layers
FS-90       (V) View Stripe
FS-100       (P) PC baby bottle
Example
FS-65 P D S D
MODEL FS-40 OSSO FS-45 OSSO FS-55 OSSO FS-65 OSSO FS-75 OSSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5 7.5 10 15 25
Oil hydraulic drive motor(HP) 5 7.5 10 10 15
Optional air compressor(HP) 5 5 7.5 7.5 10
Air pressurer(kg/cm2) 4-6 4-6 4-6 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 4 4 4 5 5
Heating capacity(KW) 7 9.5 12.5 16.8 18
Total installed power(KW) 15 21 30 35 48
Extruding capacity per hour(kg/hr) 15 24 36 55 75
Dry cycle per hour(time/hr) 1285 1030 880 720 650
Product capacity(c.c./L) 15-500 60-1000 150-2500 500-5000 1L-10L
Product weight(g.) 5-40 10-100 20-170 40-280 80-500
Min./Max. diameter of product(m/m) 10-75 20-100 30-140 50-200 80-260
Extruding mouth outer diameter(m/m) 50 56 80 150 200
Mold center distance(m/m) * * * * *
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-210 126-232 156-292 200-380 240-421
Width of mold capacity(m/m) 200 290 306 350 425
Machine net weight(kg) 2200 2700 3200 4100 7000
Machine dimension(m) 2.3*1.4*2.2 3*1.4*2.3 3*1.5*2.3 3*1.6*2.6 4.2*1.7*2.7

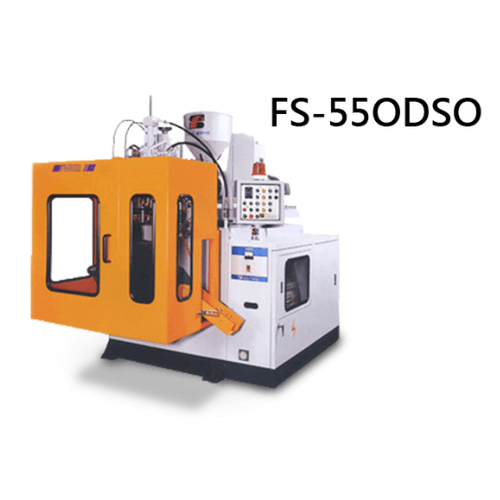

MODEL FS-40 ODSO FS-45 ODSO FS-55 ODSO FS-65 ODSO FS-75 ODSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5 7.5 10 15 40
Oil hydraulic drive motor(HP) 5 7.5 10 10 20/15
Optional air compressor(HP) 5 5 7.5 7.5 10
Air pressurer(kg/cm2) 4-6 4-6 4-6 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 6 6 7 8 9
Heating capacity(KW) 7.5 10.25 13.6 17.5 25
Total installed power(KW) 15 21 30 35 48
Extruding capacity per hour(kg/hr) 15 24 36 55 75
Dry cycle per hour(time/hr) 1285 1030 880 720 650
Product capacity(c.c./L) 15-500 40-500 100-1250 280-1800 0.5L-2.5L
Product weight(g.) 4-25 5-40 10-100 20-170 40-170
Min./Max. diameter of product(m/m) 10-65 20-70 30-85 40-100 40-130
Extruding mouth outer diameter(m/m) 38 42 50 65 80
Mold center distance(m/m) 85 100 120 140 180
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-210 126-232 156-292 200-380 240-421
Width of mold capacity(m/m) 200 290 306 350 425
Machine net weight(kg) 2200 2700 3200 4100 7000
Machine dimension(m) 2.3*1.4*2.2 3*1.4*2.3 3*1.5*2.3 3*1.6*2.6 4.2*1.7*2.7
MODEL FS-40 OTSO FS-45 OTSO FS-55 OTSO FS-65 OTSO FS-75 OTSO
Material PE/PP PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 40 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 20-66 15-61 15-60 15-60 15-58
Inveter motor(HP) 5 7.5 10 15 25
Oil hydraulic drive motor(HP) 5 7.5 10 10 15
Optional air compressor(HP) 7.5 7.5 10 10 15
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7 5-7
Clamping force(Ton) 2.8 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 38 55 60 80 120
Nunber of heaters(ZONE) 8.5 12 15 19.3 21.5
Heating capacity(KW) 7.5 10.25 13.6 17.5 25
Total installed power(KW) 16.5 23.5 32 39 52.5
Extruding capacity per hour(kg/hr) 15 24 36 55 75
Dry cycle per hour(time/hr) 1250 1000 850 720 650
Product capacity(c.c./L) 10-125 20-325 40-825 100-1000 180-4500
Product weight(g.) 3-10 5-25 10-50 10-90 15-145
Min./Max. diameter of product(m/m) 10-45 20-55 30-55 30-80 95
Extruding mouth outer diameter(m/m) 30 37 40 55 80
Mold center distance(m/m) 75+75 85+85 100+100 120+120 120+120
Clamping distance(m/m) 120-230 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 100-210 126-232 156-292 200-380 243-466
Width of mold capacity(m/m) 200 290 306 350 425
Machine net weight(kg) 2500 3100 3600 4600 7500
Machine dimension(m) 2.3*1.4*2.2 3*1.4*2.3 3*1.5*2.3 3*1.6*2.6 4.2*1.7*2.7
MODEL FS-55 OFSO FS-65 OFSO FS-75 OFSO FS-90 OFSO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75 90
Screw L/D ratio(L/D) 24/1 24/1 24/1 28/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58 15-58
Inveter motor(HP) 15 20 30 50
Oil hydraulic drive motor(HP) 10 15 15 15
Optional air compressor(HP) 15 15 20 20
Air pressurer(kg/cm2) 6-8 6-8 6-8 6-8
Clamping force(Ton) 4.4 6.9 10 13
Oil tank capacity(Gallon) 60 80 120 250
Nunber of heaters(ZONE) 11 13 13 15
Heating capacity(KW) 16.5 20.8 25.7 30
Total installed power(KW) 37.5 48 61 80
Extruding capacity per hour(kg/hr) 36 55 75 100
Dry cycle per hour(time/hr) 750 750 650 650
Product capacity(c.c./L) 30-300 100-500 300-1000 500-2500
Product weight(g.) 10-25 10-40 15-90 40-170
Min./Max. diameter of product(m/m) 20-55 30-55 30-90 30-90
Extruding mouth outer diameter(m/m) 37 42 50 75
Mold center distance(m/m) 85+85+85 85+85+85 120+120+120 120+120+120
Clamping distance(m/m) 140-410 150-540 160-670 200-780
Length of mold capacity(m/m) 156-292 200-380 243-466 250-550
Width of mold capacity(m/m) 380 430 510 550
Machine net weight(kg) 3800 4800 7900 8900
Machine dimension(m) 3.1*1.8*2.3 3.2*1.9*2.6 4.3*2*2.7 5.2*3.1*3.5
MODEL FS-45 OSDO FS-55 OSDO FS-65 OSDO FS-75 OSDO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-61 15-60 15-60 15-58
Inveter motor(HP) 7.5 10 15 30
Oil hydraulic drive motor(HP) 7.5 10 10 15
Optional air compressor(HP) 10 15 15 20
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7
Clamping force(Ton) 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 60 80 120 250
Nunber of heaters(ZONE) 4 4 5 5
Heating capacity(KW) 9.5 12.5 16.8 18
Total installed power(KW) 22 28 37 53
Extruding capacity per hour(kg/hr) 24 36 55 75
Dry cycle per hour(time/hr) 1030*2 880*2 720*2 650*2
Product capacity(c.c./L) 40-500 65-1250 150-2500 500-5000
Product weight(g.) 5-40 10-100 20-170 40-280
Min./Max. diameter of product(m/m) 10-75 20-100 30-140 50-280
Extruding mouth outer diameter(m/m) 56 80 150 200
Mold center distance(m/m) * * * *
Clamping distance(m/m) 120-320 140-410 150-540 160-670
Length of mold capacity(m/m) 126-232 156-292 200-380 240-640
Width of mold capacity(m/m) 250 280 380 420
Machine net weight(kg) 6400 6900 7400 8300
Machine dimension(m) 3*1.8*2.5 3.2*1.9*2.5 3.2*2*2.8 4.2*2.1*2.9
MODEL FS-45 OSDO FS-55 OSDO FS-65 OSDO FS-75 OSDO
Material PE/PP PE/PP PE/PP PE/PP
Screw diameter(m/m) 45 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-61 15-60 15-60 15-58
Inveter motor(HP) 10 10 15 30
Oil hydraulic drive motor(HP) 7.5 10 10 15
Optional air compressor(HP) 10 15 15 20
Air pressurer(kg/cm2) 4-6 4-6 5-7 5-7
Clamping force(Ton) 3.9 4.4 6.9 10
Oil tank capacity(Gallon) 60 80 120 160
Nunber of heaters(ZONE) 6 7 8 8
Heating capacity(KW) 10.25 13.6 17.5 19
Total installed power(KW) 26 30 38 54
Extruding capacity per hour(kg/hr) 24 36 55 75
Dry cycle per hour(time/hr) 1030*2 880*2 720*2 650*2
Product capacity(c.c./L) 30-200 40-500 100-1000 280-2000
Product weight(g.) 4-20 5-40 10-65 20-110
Min./Max. diameter of product(m/m) 10-65 20-70 30-85 40-110
Extruding mouth outer diameter(m/m) 42 50 65 80
Mold center distance(m/m) 100 120 140 160
Clamping distance(m/m) 130-320 140-410 150-540 160-670
Length of mold capacity(m/m) 126-232 156-292 200-380 243-466
Width of mold capacity(m/m) 250 280 380 420
Machine net weight(kg) 6500 7000 7500 8500
Machine dimension(m) 3*1.8*2.5 3.2*2*2.8 3.4*3*3 4.2*3.1*3.1
MODEL FS-55 OTDO FS-65 OTDO FS-75 OTDO
Material PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58
Inveter motor(HP) 10 15 30
Oil hydraulic drive motor(HP) 10 10 15
Optional air compressor(HP) 15 15 20
Air pressurer(kg/cm2) 4-6 5-7 5-7
Clamping force(Ton) 4.4 5.7 5.7
Oil tank capacity(Gallon) 80 120 160
Nunber of heaters(ZONE) 9 10 10
Heating capacity(KW) 15 19.3 21.5
Total installed power(KW) 32 40 56.5
Extruding capacity per hour(kg/hr) 36 55 75
Dry cycle per hour(time/hr) 850*2 720*2 650*2
Product capacity(c.c./L) 15-300 50-600 100-1000
Product weight(g.) 5-25 8-45 10-70
Min./Max. diameter of product(m/m) 10-55 20-70 30-90
Extruding mouth outer diameter(m/m) 40 55 80
Mold center distance(m/m) 85+85 100+100 120+120
Clamping distance(m/m) 140-410 150-540 160-670
Length of mold capacity(m/m) 156-292 200-380 243-466
Width of mold capacity(m/m) 300 380 420
Machine net weight(kg) 7100 7600 8700
Machine dimension(m) 3.4*2*2.8 3.6*3*3 4.4*3.1*3.1
MODEL FS-55 OFDO FS-65 OFDO FS-75 OFDO
Material PE/PP PE/PP PE/PP
Screw diameter(m/m) 55 65 75
Screw L/D ratio(L/D) 24/1 24/1 24/1
Screw R.P.M speed(r.p.m.) 15-60 15-60 15-58
Inveter motor(HP) 15 20 30
Oil hydraulic drive motor(HP) 10 10 15
Optional air compressor(HP) 15 15 20
Air pressurer(kg/cm2) 6-8 6-8 6-8
Clamping force(Ton) 4.4 6.9 13
Oil tank capacity(Gallon) 80 120 160
Nunber of heaters(ZONE) 11 13 13
Heating capacity(KW) 16.5 20.8 25.7
Total installed power(KW) 37.5 48 61
Extruding capacity per hour(kg/hr) 36 55 75
Dry cycle per hour(time/hr) 750*2 750*2 650*2
Product capacity(c.c./L) 50-250 100-400 200-600
Product weight(g.) 5-20 10-30 20-50
Min./Max. diameter of product(m/m) 20-55 20-55 20-70
Extruding mouth outer diameter(m/m) 37 42 50
Mold center distance(m/m) 85+85 85+85 120+120
Clamping distance(m/m) 140-410 150-410 160-670
Length of mold capacity(m/m) 156-292 200-380 243-466
Width of mold capacity(m/m) 410 460 520
Machine net weight(kg) 7200 7700 8900
Machine dimension(m) 3.4*2*3 3.6*3.2*3.2 4.4*3.3*3.3


AIR COOLING CHILLER                                                                                                                        AUTO 2 SIDE LABELING MACHINE


AUTO JAR NECK CUTTING MACHINE                                                                                                    AUTO LOADER


BELT TYPE CONVEYOR                                                                                                                     BLOW MOLD & INJECTION MOLD


CRUSHER                                                                                                                                         HOPPER DRYER


IN MOLD LABELING MACHINE                                                                                                          LEAKING TESTER



MASTER BATCH FEEDER                                                                                                                  MIXER


MOLD TEMPERATURE CONTROLLER                                                                                                     WATER COOLING CHILLER

PRECISE OIL FILTER                                                                                                                                        PROPORTIONAL DEVICE

SERVO MOTOR SYSTEM

Related Products / FULL SHINE PLASTIC MACHINERY CO., LTD.

Automatic-Blow-Molding-Machine-H Series
Automatic-Blow-Molding-Machine-H Series
Automatic Blow Molding Machine - P Series
Automatic Blow Molding Machine - P Series
Automatic CO-Extrusion Blow Molding machine- P Series
Automatic CO-Extrusion Blow Molding machine- P Series
Automatic PET Stretch Blow Molding Machine - FS-2000AD
Automatic PET Stretch Blow Molding Machine - FS-2000AD
PET Stretch Blow Molding Machine-FS-4000AD
PET Stretch Blow Molding Machine-FS-4000AD
Automatic Blow Molding machine- A Series
Automatic Blow Molding machine- A Series
Semi-Automatic Pet Stretch Blow Molding Machine FS-1000HD2
Semi-Automatic Pet Stretch Blow Molding Machine FS-1000HD2
Semi-Automatic PET Stretch Blow Molding Machine - FS 1000HD
Semi-Automatic PET Stretch Blow Molding Machine - FS 1000HD
One Step Injection Blow Molding Machine-FS-IB60
One Step Injection Blow Molding Machine-FS-IB60
Automatic-Blow-Molding-machine-L Series
Automatic-Blow-Molding-machine-L Series

Buyers Also Search

blow molders
