PRM-TAIWAN
Classification : Automatic Blow Molding Machine
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang
Inquiry Now

Full Shine's I Series Blow Molding Machines are suitable for producing large and various plastic products, such as too boxes, water tanks, beer drums, jerry cans, and automobile components.
These machines are equipped with accumulator-type mold heads and multi-point parison controllers. These machines are with lateral take-out mechanism. Machine frame and die head are movable for replacing molds easily.

  • Apply for single station
  • Production volume: from 10L-1000L
  • Cavities: 1 cavity
  • Apply for PE/PP /ABS/PA…
  • Support: Hybrid system, Parison control, turn key solution
  • LCD Touch Screen connects to each mechanical and electric function, and has the self-diagnostic system easy for troubleshooting and adjustment.
  • The plasticizing screw and barrel are precision components with special nitrogen-treated steel for heat durability and resistance.
  • Water cooling system controls the feeding-zone temperature.
  • Blow pin unit has a special and accurate cooling circulation and hydraulic-driven system. (Bottom Blow Unit).
  • Product capacity’s range is from 30 Liter to 50 Liter.
  • Fully-interlocked pneumatic, hydraulic and electric safety devices to protect operators from danger and accident. We can also equip machines with light curtains for additional protection.
  • I Series machines are suitable for producing various and different-shape of plastic products.
  • For high-efficient extrusion, the screw with high mixing combines with gear box, made in Germany, and inverter, made in Japan, which can adjust screw ration speed and reduce power wastage. Unlike using tradition hydraulic motor driving system, it reduces 40% usage of hydraulic oil.
  • Extrusion platen can be adjusted up and down, leftwards and rightwards by the control of hydraulic motor. Extrusion platen is capable of height adjustment for producing picnic table, air ducts, auto parts, and so on.
  • Die head is with special -designed core, hydraulic controlled injection piston and cylinder, and First in and First out design, which is capable of fast accumulation and shortens the time of changing color. To equip MOOG parison wall thickness controller and servo cylinder is good for extruding equal thick parison.
  • Close and open mold is controlled by linear slide way, make in Germany, for accurate positioning and stable carriage movement. Mold carriage is equipped with light curtain/ electric eye protection, and safety gate.
  • Blow pin movement is hydraulic-driven with water-cooling design. This machine is also with bottom blowing and side blowing option. Parison enlarger is pneumatic-driven, which makes equivalent products shape, suitable for blow molding huge containers.
  • Optional robot arm is with water cooling design to avoid material stick, and is capable of taking our heavy products automatically. The material is light aluminum alloy. The movement of robot arm is controlled by linear slide way, which reduces friction and use of power driving.
  • Mold carriage is operated by double piston cylinder. Sub Cylinder speed up mold close, and Main Cylinder is driven with higher clamping force. Carriage movement is controlled by slide rails for easy mold changing. Special-designed mold core-pull function is suitable for making concave products, such as handle jerry cans, expelling products rapidly.
  • With guide bar of molds clamping, the mold platens are with equal clamping force, without the concern of platen deformation. Top and bottom clamping force is with main-cylinder design.
  • Hydraulic system is YUKEN hydraulic valves with proportional flow and proportional pressure control circuit, which can be adjusted based on different products features. Separate and airtight oil tank maintains oil purity, or collocate Full Shine oil cleaner for good and long-term use of hydraulic oil.
  • Separate control cabinet is equipped with Fuji 10.4” colorful HMI, easy for data setting, temperature control, and parison control with detailed information for adopting various products. Error message and 50 sets of memory saving are use-friendly.
EXPOSITION OF FULL SHINE'S MACHINE MODEL
  SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS- 40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
55 (O) Standard / Oblique (T) Three Mold Heads   (D) Two Layers
65 (A) Pneumatic (F) Four Mold Heads   (T) Three Layers
75 (L) Frontal (E) Eight Mold Heads   (F) Four Layers
80 (I) Lateral     (L) Six Layers
90       (V) View Stripe
100       (P) PC baby bottle
Example
FS- 65 P D S D
Model  FS-75ISSO FS-80ISSO FS-90ISSO FS-100LSSO
Material PE PE PE PE
1 Product capacity Liter 1-10 10-30 30-50 50-100
2 Diameter of Product m/m 80-260 120-350 150-400 150-580
3 Screw diameter m/m 75 80 90 100
4 Screw L/D ratio L/D 24/1 24/1 24/1 28/1
5 Extruding capacity Kg/hr 100 120 140 180
6 Accumulator Kg 2.5 2.5 5 7-12
7 Screw Drive Inverter motor HP 30 40 50 -
8 Screw Drive Hydraulic motor C.C. - 2000 2500 3000
9 Screw ration speed r.p.m 15-65 20-65 20-65 20-65
10 Oil Hydraulic drive Inverter motor HP 15 25 30 40
11 Oil Hydraulic drive Hydraulic motor HP 15 50 60 75
12 Power of thickness control HP 5 5 7.5 10
13 Air compressor(Optional) HP 7.5 15 15 20
14 Pressure of air kg/cm2 5-7 5-7 6-8 6-8
15 Clamping force ton 28 32 44 85
16 Oil tank capacity Gallon 80 100 140 200
17 Number of heaters Zone 6 7 7 10
18 Heating capacity Kw 26 28 32 36
19 Total installed power Kw 60 77 92 111
20 Extruding mouth outer diameter m/m 200 280 350 450
21 Open close daylight m/m 160-670 200-800 340-850 400-1000
22 Length of mold capacity m/m 200-450 300-800 850 950
23 Width of mold capacity m/m 450 630 750 1000
24 Machine water consumption L/hr 900 900 1000 1200
25 Mold water consumption L/min 230 230 230 230
kcal/hr 31500 31500 46623 46623
26 Machine net weight ton 7.2 11 12 18
27 Machine dimension<L*W*H> m 3.8*2.6*2.8 4.5*2.6S*2.8 5*3*3.3 5.5*3.5*3.3

PHOTOS

Sample bottles

PHOTOS

Sample bottles

PHOTOS

Bottom blowing system

PHOTOS

Close and open mold is controller by linear slide way, make in Germany

PHOTOS

FS-90ISSO machine outlooking

PHOTOS

Hydraulic system

PHOTOS

Machine outlooking

PHOTOS

Machine outlooking

PHOTOS

Machine outlooking

PHOTOS

PLC control cabinet is equipped with Fuji 10.4” colorful HMI

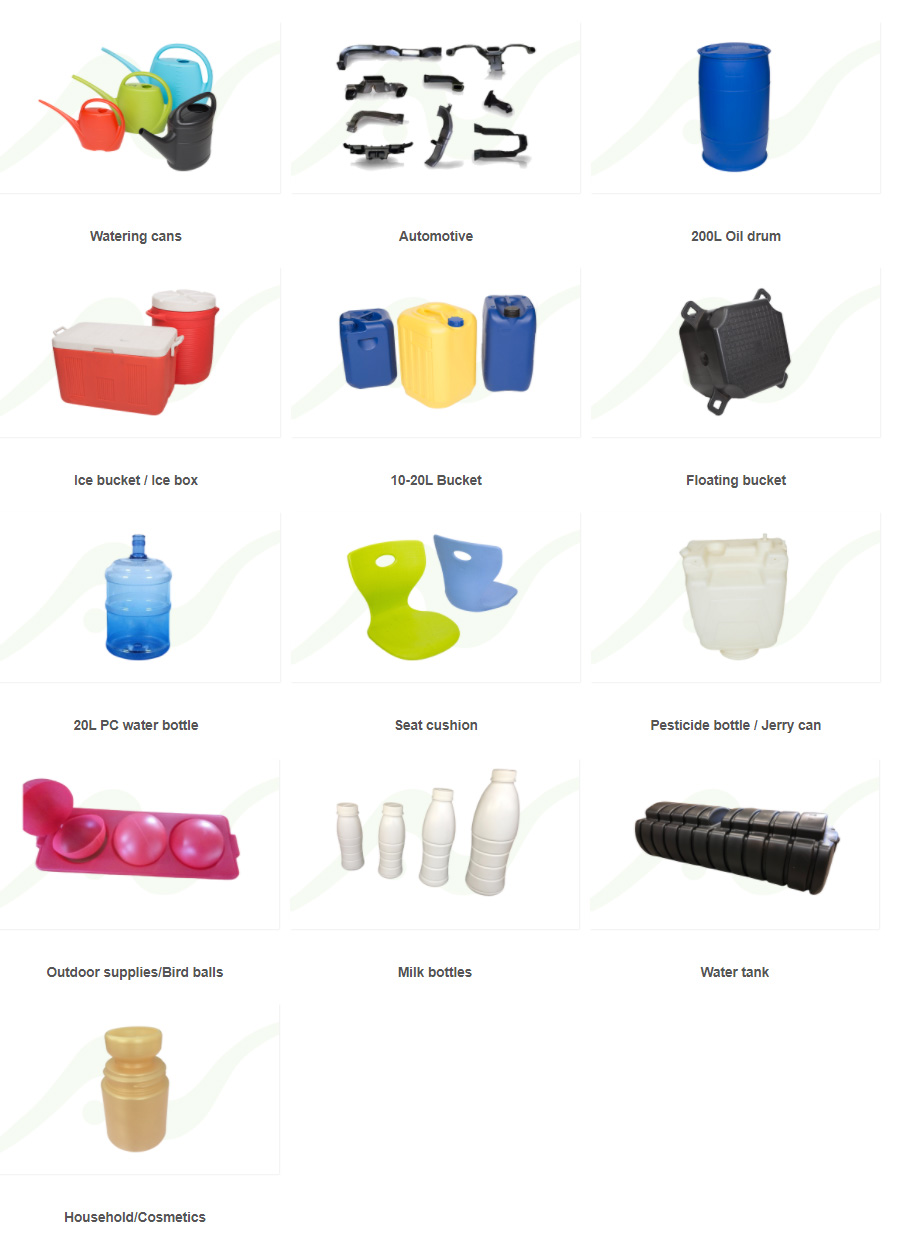

Watering cans

Watering cans

Automotive

Automotive

210L~250L Double L ring drum

210L~250L Double L ring drum

Blow Molded Plastic Bucket

Blow Molded Plastic Bucket

Outdoor supplies/Bird balls

Outdoor supplies/Bird balls

Seat cushion

Seat cushion

Household/Cosmetics

Household/Cosmetics

Water tank

Water tank

Jerry Can Making Machine

Jerry Can Making Machine
