Classification : Automatic Blow Molding Machine
Applications:
All Kinds of Bottles & Containers
Food & Beverage Related Products
Lifestyle & Cosmetics
Detergent Bottles
Hand Washing Bottles
Plastic Bottles
Shell Containers
Thin Shell Containers
Thin Shell Round Containers
Toy Boxes
Watering Cans
Juice Bottles
Kettles
Milk Bottles
PET Bottles
Water / Tea Bottles
Yogurt Bottles
Cosmetic Bottles
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang

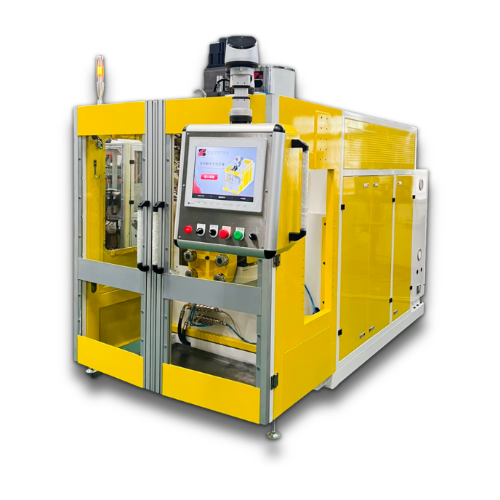

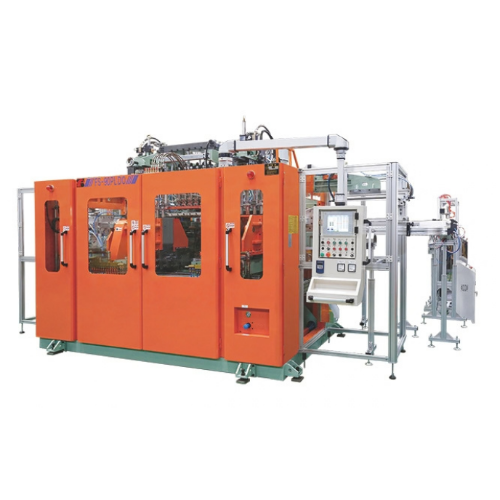

Our versatile and efficient plastic blow molding machine can produce a wide variety of products, from 5ml to 10L, with single-station or double-station configurations, monolayer or multi-layer, and 1 to 6 cavities. It is compatible with PE, PP, PETG, PVC, ABS, PA, PS, and co-extrusion materials. An optional view stripe line is also available. This machine is a great choice for businesses that need to produce high-quality plastic products with precise dimensions in a cost-effective and efficient manner.
● Apply for single station/ double station
● Production volume: from 5ml-10L
● Mono layer and multi layers are available
● Cavities: 1~6 cavities
● Apply for PE/PP/PETG/PVC/ABS/PA/ PS/ Co-extrusion material
● Option: view stripe line
● Support: Hybrid system, Parison control, auto deflashing, turn key solution
• HMI Touch Screen (Option), Incorporating with PLC System for Easy Maintenance.
• Fine Steel Slide Bars for Swift Mold Opening and Closing with Horizontal Motion of Carriages by Linear Slide Way.
• Screw Drive by the Control of Direct-mounted Gear Box and Inverter Motor.
• Mold Head with the Head Lift-Up Device for Swift Material Extrusion.
• Blowing Unit Driven by Hydraulic Motor for Changing Mold Easily − Innovative Design.
• Fine Steel Slide Bars for Swift Mold Opening and Closing with Horizontal Motion of Carriages by Linear Slide Way.
• Screw Drive by the Control of Direct-mounted Gear Box and Inverter Motor.
• Mold Head with the Head Lift-Up Device for Swift Material Extrusion.
• Blowing Unit Driven by Hydraulic Motor for Changing Mold Easily − Innovative Design.
| SCREW DIAMETER(M/M) | MACHINE SERIES | MOLD HEAD(DIE HEAD) | MOLD STATION | PRODUCT TYPE |
| FS-40 | (H) Horizontal | (S) Single Mold Head | (S) Single Mold Station | (O) Original |
| FS-45 | (P) Parallel | (D) Double Mold Heads | (D) Double Mold Stations | (C) Two Colors |
| FS-55 | (O) Standard / Oblique | (T) Three Mold Heads | (D) Two Layers | |
| FS-65 | (A) Pneumatic | (F) Four Mold Heads | (T) Three Layers | |
| FS-75 | (L) Frontal | (E) Eight Mold Heads | (F) Four Layers | |
| FS-80 | (I) Lateral | (L) Six Layers | ||
| FS-90 | (V) View Stripe | |||
| FS-100 | (P) PC baby bottle | |||
| Example | ||||
| FS-65 | P | D | S | D |
| MODEL | FS-40 HSSO | FS-45 HSSO | FS-55 HSSO | FS-65 HSSO | FS-75 HSSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 7.5 | 7.5 | 10 | 15 | 25 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 1.5 | 3.9 | 4.4 | 5.6 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 5 | 4 | 4 | 6 | 5 |
| Heating capacity(KW) | 8 | 9.5 | 12.5 | 16.8 | 18 |
| Total installed power(KW) | 18 | 21 | 30 | 35 | 48 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-500 | 60-1000 | 150-2500 | 500-5000 | 1L-10L |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 50 | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * | * |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 100-300 | 126-232 | 156-292 | 200-400 | 236-452 |
| Width of mold capacity(m/m) | 300 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2300 | 2800 | 3300 | 4200 | 7100 |
| Machine dimension(m) | 2.9*1.37*2.3 | 3*1.4*2.3 | 3*1.5*2.3 | 3.6*1.6*2.6 | 4.2*1.7*2.7 |
| MODEL | FS-40 HDSO | FS-45 HDSO | FS-55 HDSO | FS-65 HDSO | FS-75 HDSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 5 | 7.5 | 10 | 15 | 40 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 20 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 5.6 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 7 | 9 | 9 |
| Heating capacity(KW) | 7.5 | 10.25 | 13.6 | 17.5 | 25 |
| Total installed power(KW) | 15.5 | 22 | 33 | 45 | 56 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 85 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-200 | 40-500 | 100-1250 | 280-1800 | 0.5L-2.5L |
| Product weight(g.) | 4-25 | 5-40 | 10-100 | 20-170 | 40-170 |
| Min./Max. diameter of product(m/m) | 10-65 | 20-70 | 30-85 | 40-100 | 40-130 |
| Extruding mouth outer diameter(m/m) | 38 | 42 | 50 | 65 | 80 |
| Mold center distance(m/m) | 85 | 100 | 120 | 160 | 250 |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 100-210 | 126-232 | 156-292 | 200-400 | 236-452 |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2400 | 3000 | 3400 | 4400 | 7300 |
| Machine dimension(m) | 2.3*1.4*2.2 | 3*1.4*2.3 | 3*1.5*2.3 | 3.8*2.1*2.6 | 4.3*3*2.9 |
| MODEL | FS-40 HTSO | FS-45 HTSO | FS-55 HTSO | FS-65 HTSO | FS-75 HTSO | |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | |
| Screw diameter(m/m) | 40 | 45 | 55 | 65 | 75 | |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 | |
| Inveter motor(HP) | 5 | 7.5 | 10 | 15 | 25 | |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 | |
|
7.5 | 7.5 | 10 | 10 | 15 | |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 | 5-7 | |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 6.9 | 10 | |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 | |
| Nunber of heaters(ZONE) | 8 | 8 | 9 | 10 | 10 | |
| Heating capacity(KW) | 8.5 | 12 | 15 | 19.3 | 21.5 | |
| Total installed power(KW) | 16.5 | 23.5 | 32 | 47 | 52.5 | |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 36 | 55 | 75 | |
| Dry cycle per hour(time/hr) | 1250 | 1000 | 850 | 720 | 650 | |
| Product capacity(c.c./L) | 10-125 | 20-325 | 40-825 | 100-1000 | 180-1500 | |
| Product weight(g.) | 3-10 | 5-25 | 10-50 | 10-90 | 15-145 | |
| Min./Max. diameter of product(m/m) | 10-45 | 20-55 | 30-55 | 30-80 | 30-95 | |
| Extruding mouth outer diameter(m/m) | 30 | 37 | 40 | 55 | 80 | |
| Mold center distance(m/m) | 75+75 | 85+85 | 100+100 | 120+120 | 120+120 | |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 | |
| Length of mold capacity(m/m) | 100-210 | 126-232 | 156-292 | 200-380 | 236-452 | |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 | |
| Machine net weight(kg) | 2600 | 3200 | 3700 | 4700 | 7600 | |
| Machine dimension(m) | 2.3*1.4*2.2 | 3*1.4*2.3 | 3*1.5*2.3 | 3.8*2.1*2.6 | 4.2*1.7*2.7 |
| MODEL | FS-55 HFSO | FS-65 HFSO | FS-75 HFSO | FS-90 HFSO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 | 90 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 | 15-58 |
| Inveter motor(HP) | 15 | 20 | 30 | 50 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 | 20 |
| Air pressurer(kg/cm2) | 6-8 | 6-8 | 6-8 | 6-8 |
| Clamping force(Ton) | 4.4 | 5.6 | 10 | 13 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 250 |
| Nunber of heaters(ZONE) | 11 | 17 | 13 | 15 |
| Heating capacity(KW) | 16.5 | 21.3 | 25.7 | 30 |
| Total installed power(KW) | 37.5 | 47 | 61 | 80 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 | 10 |
| Dry cycle per hour(time/hr) | 750 | 750 | 650 | 650 |
| Product capacity(c.c./L) | 30-300 | 100-500 | 300-1000 | 500-2500 |
| Product weight(g.) | 10-25 | 10-40 | 15-90 | 40-170 |
| Min./Max. diameter of product(m/m) | 20-55 | 30-55 | 30-90 | 30-90 |
| Extruding mouth outer diameter(m/m) | 37 | 42 | 50 | 75 |
| Mold center distance(m/m) | 90+90 | 90+90 | 120+120 | 120+120 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 | 250-550 |
| Width of mold capacity(m/m) | 380 | 450 | 510 | 550 |
| Machine net weight(kg) | 4000 | 5000 | 7900 | 9500 |
| Machine dimension(m) | 3.1*1.8*2.3 | 4.23*2.6*3 | 4.3*2*2.7 | 5.2*3.1*3.5 |
| MODEL | FS-45 HSDO | FS-55 HSDO | FS-65 HSDO | FS-75 HSDO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 7.5 | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 10 | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 4 | 4 | 5 | 5 |
| Heating capacity(KW) | 9.5 | 12.5 | 16.8 | 18 |
| Total installed power(KW) | 22 | 28 | 37 | 53 |
| Extruding capacity per hour(kg/hr) | 24 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1030*2 | 880*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 40-500 | 65-1250 | 150-2500 | 500-5000 |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 |
| Extruding mouth outer diameter(m/m) | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * |
| Clamping distance(m/m) | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 250 | 300 | 330 | 360 |
| Machine net weight(kg) | 6400 | 6900 | 7400 | 8300 |
| Machine dimension(m) | 3*1.8*2.5 | 3*1.9*2.5 | 3.2*2*2.8 | 4.2*2.1*2.9 |
| MODEL | FS-45 HDDO | FS-55 HDDO | FS-65 HDDO | FS-75 HDDO |
| Material | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 45 | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10 | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 10 | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 6 | 7 | 8 | 8 |
| Heating capacity(KW) | 10.25 | 13.6 | 17.5 | 19 |
| Total installed power(KW) | 26 | 30 | 38 | 54 |
| Extruding capacity per hour(kg/hr) | 32 | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1030*2 | 880*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 30-200 | 40-500 | 100-1000 | 280-2000 |
| Product weight(g.) | 4-20 | 5-40 | 10-65 | 20-110 |
| Min./Max. diameter of product(m/m) | 10-65 | 20-70 | 30-85 | 40-110 |
| Extruding mouth outer diameter(m/m) | 42 | 50 | 65 | 80 |
| Mold center distance(m/m) | 100 | 120 | 140 | 160 |
| Clamping distance(m/m) | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 250 | 300 | 330 | 360 |
| Machine net weight(kg) | 6500 | 7000 | 7500 | 8500 |
| Machine dimension(m) | 3*1.8*2.5 | 3.2*2*2.8 | 3.4*3*3 | 4.2*3.1*3.1 |
| MODEL | FS-55 HTDO | FS-65 HTDO | FS-75 HTDO |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10 | 15 | 30 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 4-6 | 5-7 | 5-7 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 110 | 120 | 160 |
| Nunber of heaters(ZONE) | 9 | 10 | 10 |
| Heating capacity(KW) | 15 | 19.3 | 21.5 |
| Total installed power(KW) | 32 | 40 | 56.5 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 850*2 | 720*2 | 650*2 |
| Product capacity(c.c./L) | 15-300 | 50-600 | 100-1000 |
| Product weight(g.) | 5-25 | 8-45 | 10-70 |
| Min./Max. diameter of product(m/m) | 10-55 | 20-70 | 30-90 |
| Extruding mouth outer diameter(m/m) | 40 | 55 | 80 |
| Mold center distance(m/m) | 85+85 | 100+100 | 120+120 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 300 | 330 | 360 |
| Machine net weight(kg) | 7100 | 7600 | 8700 |
| Machine dimension(m) | 3.4*2*2.8 | 3.6*3*3 | 4.4*3.1*3.1 |
| MODEL | FS-55 HFDO | FS-65 HFDO | FS-75 HFDO |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55 | 65 | 75 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 15 | 20 | 30 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 15 | 15 | 20 |
| Air pressurer(kg/cm2) | 6-8 | 6-8 | 6-8 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 80 | 120 | 160 |
| Nunber of heaters(ZONE) | 11 | 13 | 13 |
| Heating capacity(KW) | 16.5 | 20.8 | 25.7 |
| Total installed power(KW) | 37.5 | 48 | 61 |
| Extruding capacity per hour(kg/hr) | 36 | 55 | 75 |
| Dry cycle per hour(time/hr) | 750*2 | 750*2 | 650*2 |
| Product capacity(c.c./L) | 50-250 | 100-400 | 200-600 |
| Product weight(g.) | 5-20 | 10-30 | 20-50 |
| Min./Max. diameter of product(m/m) | 20-55 | 20-55 | 20-70 |
| Extruding mouth outer diameter(m/m) | 37 | 42 | 50 |
| Mold center distance(m/m) | 85+85+85 | 85+85+85 | 100+100+100 |
| Clamping distance(m/m) | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 156-292 | 200-380 | 236-452 |
| Width of mold capacity(m/m) | 300 | 330 | 360 |
| Machine net weight(kg) | 7200 | 7700 | 8900 |
| Machine dimension(m) | 3.4*2.2*3.1 | 3.6*2.3*3.2 | 4.4*3.3*3.3 |
| MODEL | FS-40 HSSD | FS-45 HSSD | FS-55 HSSD | FS-65 HSSD | FS-75 HSSD |
| Material | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 40/25 | 45/25 | 55/25 | 65/25 | 75/25 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 20-66 | 15-61 | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 5/2 | 7.5/2 | 10/2 | 15/2 | 25/2 |
| Oil hydraulic drive motor(HP) | 5 | 7.5 | 10 | 10 | 15 |
| Optional air compressor(HP) | 5 | 5 | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 4-6 | 4-6 | 5-7 | 5-7 | 5-7 |
| Clamping force(Ton) | 2.8 | 3.9 | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 38 | 55 | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 6 | 7 | 7 |
| Heating capacity(KW) | 9.5 | 12 | 15 | 19.5 | 22 |
| Total installed power(KW) | 19 | 25 | 32 | 40.5 | 44 |
| Extruding capacity per hour(kg/hr) | 15 | 24 | 42 | 55 | 75 |
| Dry cycle per hour(time/hr) | 1285 | 1030 | 880 | 720 | 650 |
| Product capacity(c.c./L) | 15-500 | 60-1000 | 150-2500 | 1L-5L | 1L-10L |
| Product weight(g.) | 5-40 | 10-100 | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 10-75 | 20-100 | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 50 | 56 | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * | * | * |
| Clamping distance(m/m) | 120-230 | 130-320 | 140-410 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 126-232 | 156-292 | 200-380 | 236-452 | 236-452 |
| Width of mold capacity(m/m) | 230 | 300 | 350 | 420 | 480 |
| Machine net weight(kg) | 2600 | 3100 | 3600 | 4500 | 7400 |
| Machine dimension(m) | 2.6*1.8*2.7 | 3*1.9*2.8 | 3.3*2*2.9 | 3.6*1.6*3 | 3.9*2.2*3.1 |
| MODEL | FS-55 HSSC | FS-65 HSSC | FS-75 HSSC |
| Material | PE/PP | PE/PP | PE/PP |
| Screw diameter(m/m) | 55/55 | 65/65 | 7575 |
| Screw L/D ratio(L/D) | 24/1 | 24/1 | 24/1 |
| Screw R.P.M speed(r.p.m.) | 15-60 | 15-60 | 15-58 |
| Inveter motor(HP) | 10/10 | 15/15 | 25/25 |
| Oil hydraulic drive motor(HP) | 10 | 10 | 15 |
| Optional air compressor(HP) | 7.5 | 7.5 | 10 |
| Air pressurer(kg/cm2) | 5-7 | 5-7 | 5-7 |
| Clamping force(Ton) | 4.4 | 6.9 | 10 |
| Oil tank capacity(Gallon) | 60 | 80 | 120 |
| Nunber of heaters(ZONE) | 6 | 6 | 7 |
| Heating capacity(KW) | 19 | 24.5 | 26 |
| Total installed power(KW) | 43 | 56 | 77 |
| Extruding capacity per hour(kg/hr) | 42 | 55 | 75 |
| Dry cycle per hour(time/hr) | 880 | 720 | 600 |
| Product capacity(c.c./L) | 150-2500 | 1L-5L | 1L-10L |
| Product weight(g.) | 20-170 | 40-280 | 80-500 |
| Min./Max. diameter of product(m/m) | 30-140 | 50-200 | 80-260 |
| Extruding mouth outer diameter(m/m) | 80 | 150 | 200 |
| Mold center distance(m/m) | * | * | * |
| Clamping distance(m/m) | 140-540 | 150-540 | 160-670 |
| Length of mold capacity(m/m) | 200-380 | 236-452 | 236-452 |
| Width of mold capacity(m/m) | 350 | 420 | 480 |
| Machine net weight(kg) | 3600 | 4500 | 7400 |
| Machine dimension(m) | 3.3*2*2.9 | 3.6*2.1*3 | 3.9*2.2*3.1 |
|
Sample Bottles |
Silde Bars for Clamping & Linear Slideway for Carriages |
Four Column Slide Bars for Mold Clamping |
Direct-mounted Motor, Made in Germany |
|
FS-55HDSO -Automatic blow molding machine, Double die head with single station blow molding machine |
10.4” touch screen |
Four die head with single station blow molding machine |
Temperature setting control panel |
|
Barrel and screw set with fans |
PLC control panel |
FS-55HSDO, Automatic blow molding machine, 55mm screw with Single die head with double station blow molding machine |
Cold Cutter design |
|
Photo of PLC control panel |
left side view from machine operation |
Finish bottle come out from machine operation |
Inside photo of FS-55HDSO automatic blow molding machine, Double die head with single station blow molding machine |
|
Hand washing bottle / cleaning supplies |
Blow Molding Plastic Bottles |
Oil bottle / oil barrel / pesticide |
|
Mask/Closed Wound Drainage Systems |
Household/Cosmetics |
Household/Cleaning product bottle |
|
Household/Cosmetics |
Household/Cosmetics |
Closed Wound Drainage Systems |
|
Toys |
Automotive |
Household/Cosmetics |
|
Outdoor supplies/Bird balls |
Household/Cleaning product bottle |
Mascara bottle |
|
Pesticide bottle |
Household/Cosmetics |
Related Products / FULL SHINE PLASTIC MACHINERY CO., LTD.
Automatic Blow Molding Machine - P Series
Automatic CO-Extrusion Blow Molding machine- P Series
Automatic PET Stretch Blow Molding Machine - FS-2000AD
PET Stretch Blow Molding Machine-FS-4000AD
Automatic Blow Molding machine- O Series
Automatic Blow Molding machine- A Series
Semi-Automatic Pet Stretch Blow Molding Machine FS-1000HD2
Semi-Automatic PET Stretch Blow Molding Machine - FS 1000HD
One Step Injection Blow Molding Machine-FS-IB60
