Automatic Slider Taper Bag Making Machine

Classification : Bag Making

ASARI PLASTIC CORPORATION

Country: Taiwan

Phone: 886-6-5933-566

Fax: 886-6-5933-567

Contact Person: Mr. Liang

Inquiry Now

Suitable for LDPE, PP OPP CPP BOPP and EVA.
The unit begins from triangular folding unit with EPC, Tension control unit with automatic calculation, zipper attachment, automatic slider inserter, gang puncher, ultrasonic stamping, precise triangular sealing, automatic scrape remove system, collector to wicketer windmill fully automatic in one process.
Servo Driven is fast and precise.
Servo motor cutting Control System.
The unit uses PLC Control System.

Zipper Applicator
Take-Up Motor	1HP AC+Inverter
Copper Attachment Knife	2Pc
Side Slitting Knife	1 Set
Zipper Storage Frame	1 Set
Side Sealing Unit
Roll Width	700mm
Tension Control Unit
Main Motor	AC 2HP+Inverter
Ultrasonic Stamping Unit	2000W
Copper Taper Sealing Knife
Photo Cell	German SICK x 1 Set

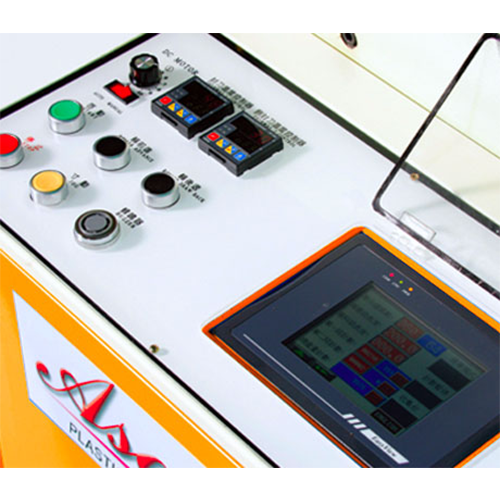

HCI Touch Screen Interface
Feeding Method	2000W Japan Servo Motor
Collector
Total Power Required	8 Kw
Suitable for string like zipper profile
Selective Equipment
White Tape Reinforcement Unit	Perforating Knife
Varies Hole Punch Unit	Gusseting Unit
Triangular Folding Unit with EPC	CE Self Declaration Modification
Hanger Insertion Unit
