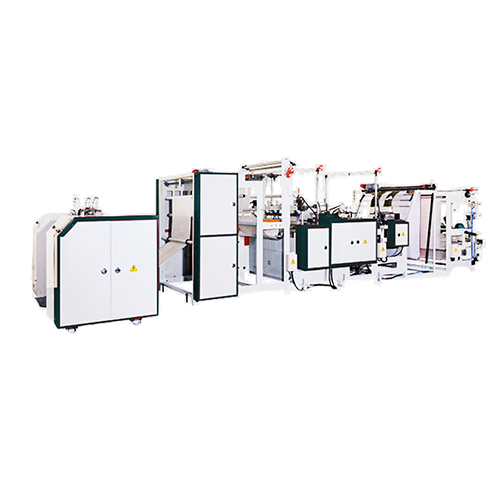

Semi-Automatic Bottom Seal Bag on roll Making Machine + Big Core Rewinding System BFWFA-V+BC

Classification : Bag on roll series

Applications: Packaging Perforated Bag On Roll Bottom Seal Bags

PLAS ALLIANCE LTD.

Country: Taiwan

Phone: 886-5-2217005

Fax: 886-5-2211929

Contact Person: Sammuel Chiu

Inquiry Now

Big core rewinder - For extra-large paper core with diameter over 6". Manual core change by labour.

High speed hot-cut system：Upper sealing blade & bottom heating wire makes strong and high speed sealing. Seperated upper and bottom temperature control for easy micro-adjustment.
Synchronized Feeding and cutting speed：Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
German "Sick" photocell registration：Reliable and accurate print registration and positioning
LCD touch panel：Easily operable human-computer interface to access parameter changes and production monitoring
Socket type IC circuit control：Automated control system can be easily replaced by socket plugin.
Malfunction alarm / stop：Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

32BFWFA-V+BC	42BFWFA-V+BC
Bag Width:40"x1 or 19"x2 Bag Length:3"-60" Film Thickness:0.012mm-0.15mm Capacity (strokes/min):20-120	Bag Width:48"x1 or 23"x2 Bag Length:3"-60" Film Thickness:0.012mm-0.15mm Capacity (strokes/min):20-120
