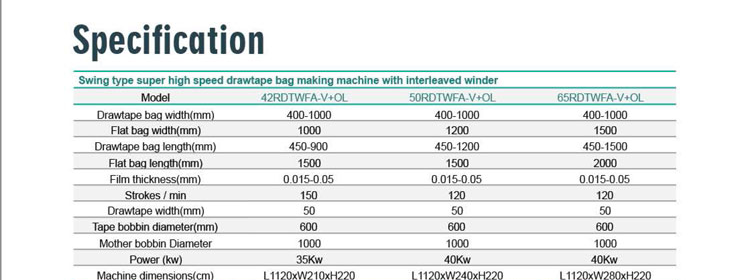

Draw Tape Bag Making Machine with Interleaved Winder

Drawtape Garbage Bag Procedures and Accessories

1. Double triangle folding device

• Folding finished bag vertically prior to rewinding or horizontal folding

2. Main machine

• Servo motor - Accuracy and highspeed @65M/min

• Malfunction alarm / stop - Abnormal temperature / No material feed / Photocell track miss / Bag jam
• Upgradeable to Swing-type sealing unit - Using servo-synchornized counter movement to the film flow, swing type sealing unit can seal without intervals on the film flow securing strong welding results and increase productivity.
• Optional Rotary type perforation device

3. Horinzontal lip sealing

• For lip folding seal, multiple types of sealing are available
• Continuous hot air type
• Continuous heat-wire type
• Up-down sealing type
• Servo-driven up-down sealing type

4. Automatic splice unit

• Dual motor - Driven bobbin feed auto-splices without stopping machine

5. Servo-driven semi-circular hole punch + Air-release notch

• Servo driven punch provides high reaction speed for high-speed production

6. Edge position control guide unit

7. Unwinder System

• High-speed heavy-duty unwinder set
• Pneumatic lift arm - Allow operator to change heavy film alone and avoid occupational harm
• Pressor Roller - Motor driven pressor roller helps to unwind film smoothly during high-speed production

S-shape Garbage Bag Procedures and Accessories

Rotary Die cutter

Servo driven rotary die cutter can be accomodate the highspeed production of swing type sealing with quick response and length/position adjustment by synchronizing the film feed and rotary activation.

Cutter blade strip is attached to the rotary cylinder by magnetic for easy change and disposal.

Heat-slitting & Post-gusset System

• Heat-slitting - Heated slitting blade will slit and seal the edge of the passing film.
• Post-gusset - Heat-slitted tubic films are blown up again and form gusset on the wooden gusset device similar to blown film machines.
