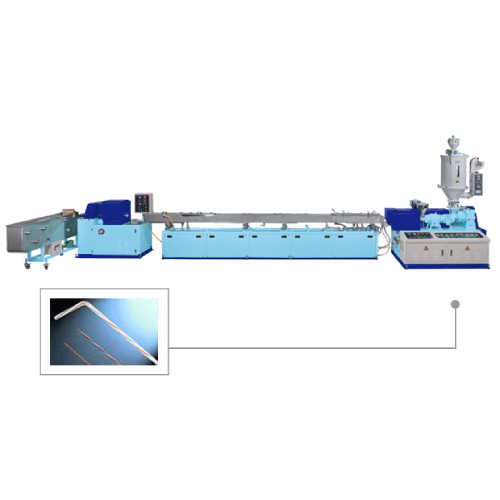

LDPE Foam Tube&Rod Extrusion line

Classification : Product

PITAC INT'L MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-2-27227966

Contact Person: Jenny Chen

Inquiry Now

With the proper mixing of melted resin & blowing agent, provides most homogeneous mixing.
Accurate blowing agent injecting quantity and temperature control to stabilize the foaming process.
High-level safety control, the system will be shut down automatically when extruder motor failure or high pressure.

Fully alarm system to tell the operator the real-time machine conditions :

PLC & WEB Based Computerizing control system recording all the operating condition & parameters, operator will be able to trace log file for quality control.
AC driving system work with the most updated version of Inverter to give lowest energy consumption.
Remote monitoring function will let production state under administrator’s 100% control.

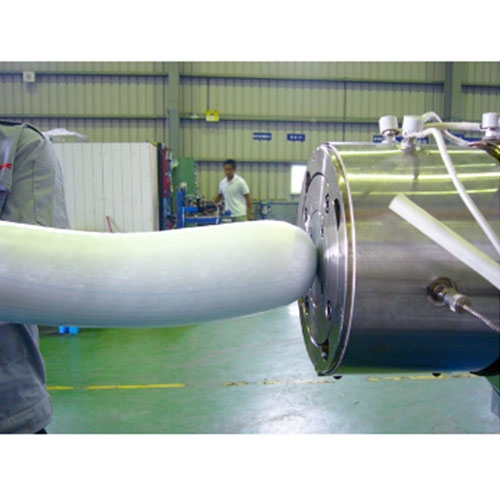

Optima die flow channel design; generate most homogeneous & proper cell size structure.
With remote troubleshooting function through the internet, Pitac provides most in-time after service to the customer.

Model No.	PT-90TUBE	PT-90120TUBE	PT-130180TUBE
Using Material	LDPE	LDPE	LDPE
Using Blowing Agent	HCFC/HFC/Butane	HCFC/HFC/Butane	HCFC/HFC/Butane
Max. Output (kg/hr)	35	100	200
Min. Foam Tube Density (kg/M3)	30	30	30
Max. Tube Diameter (mm)	50	100	150

Production Power Consumption	70	100	200
Water Consumption	Closed-loop circulation	Closed-loop circulation	Closed-loop circulation
Machine Occupation Area	4M(H) x 3M(W) x 15M(L)	4M(H) x 4M(W) x 20M(L)	4M(H) x 5M(W) x 26M(L)
Machine Type	Single extruder	Tandem extruder	Tandem extruder
Control System	Traditional type or PLC & PC-Based	Traditional type or PLC & PC-Based	Traditional type or PLC & PC-Based
Operating Interface	Traditional type or Web Based	Traditional type or Web Based	Traditional type or Web Based
Remote Troubleshooting	Optional	Optional	Optional
Operating Log	Optional	Optional	Optional
Auto Material Blending System	Optional	Optional	Optional
Blowing Agent Synchronize System	Optional	Optional	Optional
Auto-Screen Changer	Optional	Optional	Optional
