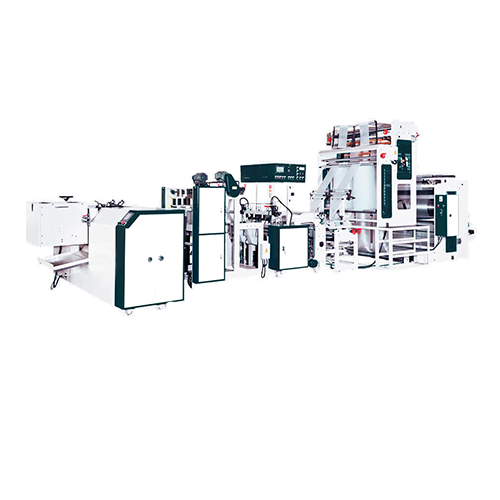

Fully Automatic Bottom Seal Bag on roll Making Machine + Heat-Slitting & Post-Gusset System

Classification : Bag on roll series

Applications: Packaging Perforated Bag On Roll Bottom Seal Bags

PLAS ALLIANCE LTD.

Country: Taiwan

Phone: 886-5-2217005

Fax: 886-5-2211929

Contact Person: Sammuel Chiu

Inquiry Now

Core Features

Up-Down Die Cut System

Synchronized up-down die cut & feeding ensures stable and high-speed performance throughout the production cycle. Equipped with a vacuum waste film removal system specifically designed for T-shirt bags on rolls.

HIGH SPEED & STABILITY

Heat-Slitting + Post-Gusset

Adjustable heat-slitting knives slit and seal jumbo bobbin film into multiple lines simultaneously. Integrated post-gusset stations create gussets on slitted film for versatile bag configurations.

MULTI-LINE PROCESSING

Fully Automatic Rewinder

Fully automatic non-stop system inserts paper core and changes finished rolls seamlessly. The coreless rewinder utilizes 2 sets of forks for automatic non-stop finished roll changeover, maximizing production uptime.

NON-STOP OPERATION

System Features

High Speed Hot-Cut System

Upper sealing blade and bottom heating wire deliver strong, high-speed sealing. Separated upper and bottom temperature control allows easy micro-adjustment for optimal seal quality.

Synchronized Feeding & Cutting

Inverter-controlled feeding automatically matches the main machine speed for seamless operation — no manual adjustment needed during production runs.

German "Sick" Photocell Registration

Reliable and accurate print registration and positioning powered by premium German Sick photocell sensors for consistent print-to-cut alignment.

LCD Touch Panel

User-friendly human-computer interface provides easy access to parameter changes, production monitoring, and real-time operational data at a glance.

Socket Type IC Circuit Control

Automated control system uses socket plug-in IC modules that can be easily replaced on-site, minimizing downtime and simplifying maintenance.

Malfunction Alarm & Auto-Stop

Intelligent protection system with alarm & auto-stop for abnormal temperature, no material feed, and photocell tracking miss (triggers after 3 consecutive misses).

Model Specifications

Specification	32BFWFA-V+SLG2 Standard Width	42BFWFA-V+SLG2 Wide Format
Bag Width	10" – 14"× 2	10" – 19"× 2WIDER
Bag Length	10" – 40"	10" – 40"
Film Thickness	0.01 – 0.15mm	0.01 – 0.15mm
Capacity	30 – 180strokes/min	30 – 180strokes/min
