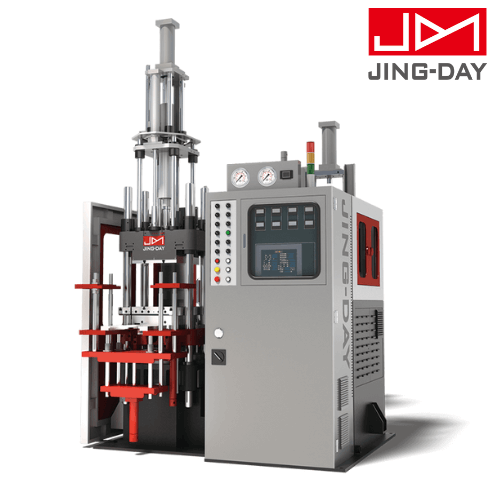

C-Frame Rubber Injection Molding Machine JD-RC series

Classification : Rubber Injection Molding Machine

Applications: Electronics & 3C Shockproof Rubber

JING DAY MACHINERY INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-6-2320999

Fax: 886-6-2325333

Contact Person: Louis Tsai

Blog Inquiry Now

This c-frame rubber injection molding machineis suitable for natural rubber, synthetic rubber, oil resistant, heat resistant rubber and recycled rubber.
PLC and HMI functional control as standard specification.
C-type structure design, for long strip types, such as doors and window sealant strips, insulation barriers, for product manufacturing convenience.
Specialized nozzle design to prevent material overflow.
Specialized feeding device.

MODEL		JD-RC20T	JD-RC30T	JD-RC40T	JD-RC50T
Shot Volume	c.c.	100	300	300	300
Injection Pressure	kgf / cm²	1600	1000	1000	1400
Injection Cylinder Pressure	kg / cm²	160	160	160	160
Injection rate	c.c. / sec	65	105	105	140
Screw Diameter	mm	32	32	32	32
Strip Dimension (T x W)	mm	6 x 30	6 x 30	6 x 30	6 x 30
Clamping Force	Ton	20	30	40	50
Plate Size	mm	400 x 400	400 x 400	400 x 400	400 x 400
Piston Diameter	mm	70 x 2	100 x 2	120 x 2	130 x 2
Piston Stroke	mm	320	400	400	400
Oil Hydraulic System	HP	7.5	7.5	7.5	7.5
Hot Oil Cycling Motor	kw	0.5	0.5	0.5	0.5
Platen Heating Capacity	kw	9.6	9.6	9.6	9.6
System Pressure	kg / cm²	210	210	210	210
Oil Tank Capacity	liters	200	240	240	240
Machine Dimensions	mm	1010 x 1100 x 2800	1120 x 1300 x 2950	1170 x 1700 x 3050	1830 x 2250 x 2800
Machine Weight (Approx)	kg	2500	3000	4000	5000

MOLD INSTALLATION & HEATING PLATE DIMENSION

MODEL		JD-RC20T	JD-RC30T	JD-RC40T	JD-RC50T
STROKE		320	400	400	400
DIMENSION		320	400	400	400
A	mm	400	400	400	400
B	mm	400	400	400	400
C	mm	150	150	150	150
D	mm	90	90	90	90
E	mm	14	14	14	14
F	mm	20	20	20	20
G	mm	10	10	10	10
H	mm	10	10	10	10
I	mm	100	100	100	100
J	mm	100	100	100	100
K	mm	450	450	450	450
