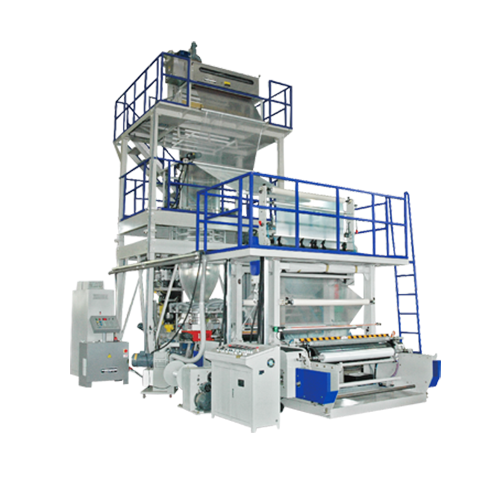

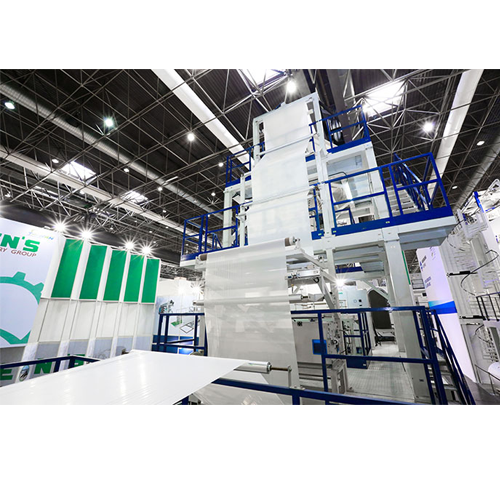

Blown Film Machine - QL Series

Classification : Film Extrusion Line

QUEEN'S MACHINERY CO., LTD.

QUEEN'S MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-2-28011185
Fax: 886-2-28015377
Contact Person: James Chen

Model.
QL-55-1000H QL-55-1000L QL-65-1500H QL-65-1500L
EXTRUDER
Screw Dia. 55mm 55mm 65mm 65mm
Screw Length L/D 28 28 28 28
Barrel Material SACM-645 SACM-645 SACM-645 SACM-645
Screw Material SACM-645 SACM-645 SACM-645 SACM-645
Gear Material SNCM-21 SNCM-21 SNCM-21 SNCM-21
Temperature Control Zones 3+1 3+1 4+1 4+1
Barrel Cooling System Air Cooling Air Cooling Air Cooling Air Cooling
Max. Extrusion Output/hr 75 kgs for HDPE 90 kgs for HDPE 120 kgs for HDPE 150 kgs for HDPE
Main Motor 40 HP AC 40 HP AC 50 HP AC 50 HP AC
Inflation Spiral Dies Φ 120/150 mm Φ 250 mm Φ 175/225 mm Φ 300 mm
For HDPE For HDPE For HDPE For HDPE
Thickness of Tube 0.01 - 0.1 mm 0.025 - 0.15 mm 0.01 - 0.1 mm 0.025 - 0.15 mm
Width of Tube 550-1000mm 550-1000mm 800-1400mm 800-1400mm

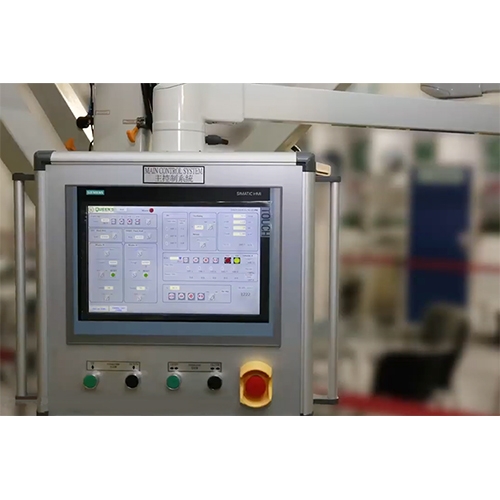

Control Panel Complete set with Complete set with Complete set with Complete set with
operation switch operation switch operation switch operation switch
A-meter, magnetc A-meter, magnetc A-meter, magnetc A-meter, magnetc
switch power relay switch power relay switch power relay switch power relay

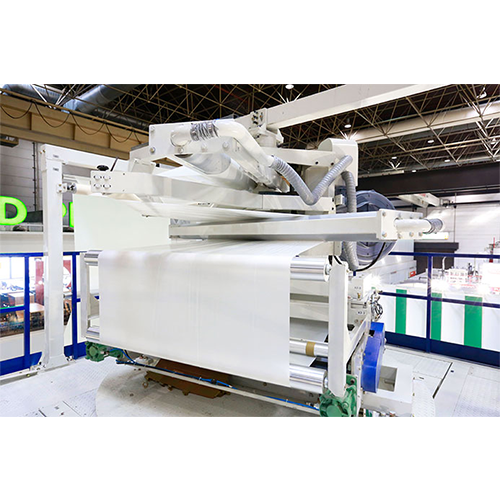

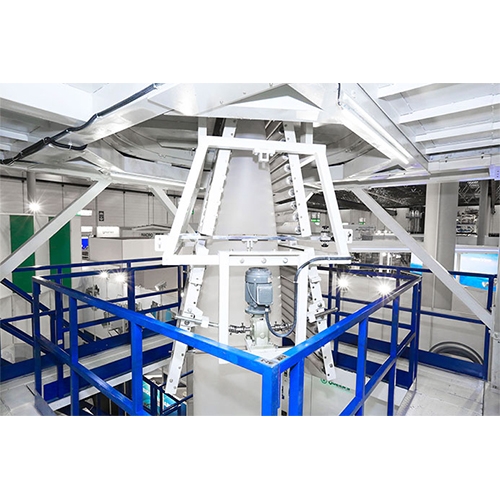

TAKE-UP MACHINE TD Type TD Type TD Type TD Type
Rubber Roller Φ160mm*1100mm*1 Φ160mm*1100mm*1 Φ160mm*1500mm*1 Φ160mm*1500mm*1
Hard Chromium Steel Roller Φ160mm*1100mm*1 Φ160mm*1100mm*1 Φ160mm*1500mm*1 Φ160mm*1500mm*1
Aluminum Guide Roller Φ76mm*1100mm*2 Φ76mm*1100mm*2 Φ76mm*1500mm*2 Φ76mm*1500mm*2
Take-up Moter 1 HP DC 1 HP DC 1 HP DC 1 HP DC
Take-up Speed 100 M/Min/max 60 M/Min/max 80 M/Min/max 60 M/Min/max

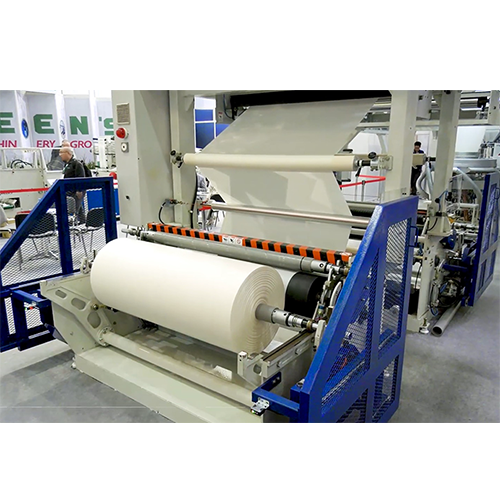

WINDER FCW TYPE FCW TYPE FCW TYPE FCW TYPE
Winder Motor 1 HP D.C 1 HP D.C 1 HP D.C 1 HP D.C
Winding Rubber Roller Dimensions Φ260mm*1100mm*1 Φ260mm*1100mm*1 Φ260mm*1500mm*1 Φ260mm*1500mm*1
Rubber Roller Φ110mm*1100mm*1 Φ110mm*1100mm*1 Φ110mm*1500mm*1 Φ110mm*1500mm*1
Winding Aluminum Roller Dimensions Φ76mm*1100mm*2 Φ76mm*1100mm*2 Φ76mm*1500mm*2 Φ76mm*1500mm*2
Second Pinch Roller Motor 1 HP D.C 1 HP D.C 1 HP D.C 1 HP D.C
Second Rubber Roller Φ110mm*1100mm*1 Φ110mm*1100mm*1 Φ110mm*1500mm*1 Φ110mm*1500mm*1
Second Hard Chromium Steel Roller Φ160mm*1100mm*1 Φ160mm*1100mm*1 Φ160mm*1500mm*1 Φ160mm*1500mm*1
Max. Winding Dia. 1000mm 1000mm 1000mm 1000mm
Max. Winding Width 1000mm 1000mm 1400mm 1400mm

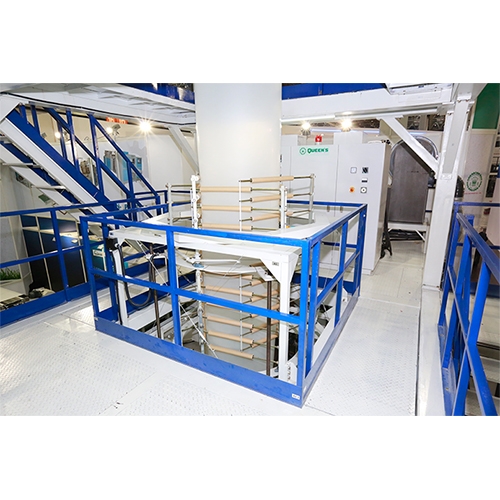

COOLING EQUIPMENT

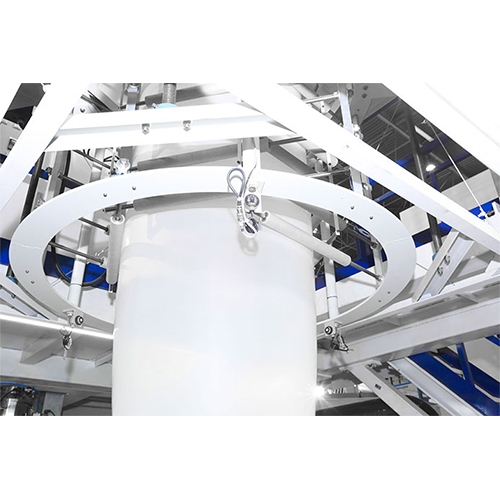

Aluminum Alloy Air Ring 1 set 1 set 1 set 1 set
Air Blower 7.5 HP 7.5 HP 7.5 HP

7.5 HP


Model.
QL-80-2000H QL-80-2000L QL-100-2500H QL-100-2500L QL-120-3200
EXTRUDER
Screw Dia. 80mm 80mm 100mm 100mm 120mm
Screw Length L/D 28 28 30 30 30
Barrel Material SACM-645 SACM-645 SACM-645 SACM-645 SACM-645
Screw Material SACM-645 SACM-645 SACM-645 SACM-645 SACM-645
Gear Material SNCM-21 SNCM-21 SNCM-21 SNCM-21 SNCM-21
Temperature Control Zones 4+1 4+1 54+1 5+1 5+1
Barrel Cooling System Air Cooling Air Cooling Air Cooling Air Cooling Air Cooling
Max. Extrusion Output/hr 160 kgs for HDPE 230 kgs for HDPE 230 kgs for HDPE 300 kgs for HDPE 430 kgs
Main Motor 100 HP AC 100 HP AC 125 HP AC 125 HP AC 175 HP AC
Inflation Spiral Dies Φ 225/275 mm Φ 450 mm Φ 300/450 mm Φ 450/600 mm Φ 550/700 mm
For HDPE For HDPE For HDPE For HDPE
Thickness of Tube 0.01 - 0.1 mm 0.025 - 0.15 mm 0.01 - 0.1 mm 0.025 - 0.15 mm 0.025 - 0.15 mm
Width of Tube 1200-1900mm 1200-1900mm 1700-2400mm 1700-2400mm 1800-3000mm
Control Panel Complete set with Complete set with Complete set with Complete set with Complete set with
operation switch operation switch operation switch operation switch operation switch
A-meter, magnetc A-meter, magnetc A-meter, magnetc A-meter, magnetc A-meter, magnetc
switch power relay switch power relay switch power relay switch power relay switch power relay
TAKE-UP MACHINE TEH Type TEH Type TEH Type TEH Type TEH Type
Rubber Roller Φ200mm*2000mm*1 Φ200mm*2000mm*1 Φ200mm*2500mm*1 Φ200mm*2500mm*1 Φ200mm*3200mm*1
Hard Chromium Steel Roller Φ200mm*2000mm*1 Φ200mm*2500mm*1 Φ200mm*2500mm*1 Φ200mm*2500mm*1 Φ200mm*3200mm*1
Aluminum Guide Roller Φ100mm*2000mm*2 Φ100mm*2000mm*2 Φ100mm*2500mm*2 Φ100mm*2500mm*2 Φ100mm*3200mm*2
Take-up Moter 2 HP DC 2 HP DC 2 HP DC 2 HP DC 3 HP DC
Take-up Speed 80 M/Min/max 40 M/Min/max 80 M/Min/max 40 M/Min/max 40 M/Min/max
WINDER FCW TYPE FCW TYPE FCW TYPE FCW TYPE FCW TYPE
Winder Motor 2 HP D.C 2 HP D.C 3 HP D.C 3 HP D.C 3 HP D.C
Winding Rubber Roller Dimensions Φ260mm*2000mm*1 Φ260mm*2000mm*1 Φ260mm*2500mm*1 Φ260mm*2500mm*1 Φ260mm*3200mm*1
Rubber Roller Φ110mm*2000mm*1 Φ110mm*2000mm*1 Φ160mm*2500mm*1 Φ160mm*2500mm*1 Φ160mm*3200mm*1
Winding Aluminum Roller Dimensions Φ100mm*2000mm*2 Φ100mm*2000mm*2 Φ100mm*2500mm*2 Φ100mm*2500mm*2 Φ100mm*3200mm*2
Second Pinch Roller Motor 2 HP D.C 2 HP D.C 2 HP D.C 2 HP D.C 3 HP D.C
Second Rubber Roller Φ260mm*2000mm*1 Φ260mm*2000mm*1 Φ260mm*2500mm*1 Φ260mm*2500mm*1 Φ260mm*3200mm*1
Second Hard Chromium Steel Roller Φ110mm*2000mm*1 Φ110mm*2000mm*1 Φ160mm*2500mm*1 Φ160mm*2500mm*1 Φ160mm*3200mm*1
Max. Winding Dia. 600mm 600mm 600mm 600mm 600mm
Max. Winding Width 1900mm 1900mm 2400mm 2400mm 3000mm
COOLING EQUIPMENT
Aluminum Alloy Air Ring 1 set 1 set 1 set 1 set 1 set
Air Blower 10 HP with Inverter 10 HP with Inverter 10 HP with Inverter 10 HP with Inverter 10 HP with Inverter
