PP Honeycomb Board Machine (YSW-FS)

Classification : PP Honeycomb Board Machine

YEN SHENG MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-24914567

Fax: 886-4-24913333

Contact Person: Mr. Jason Chen

Inquiry Now

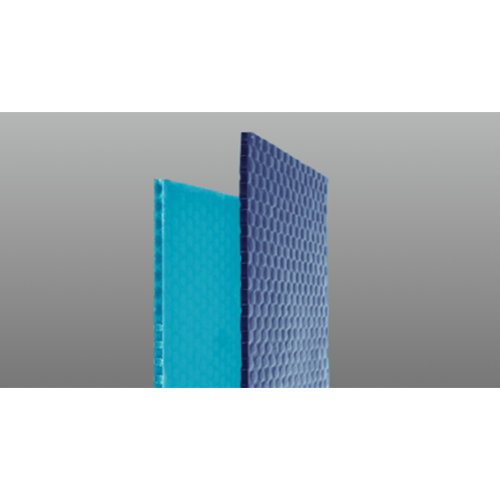

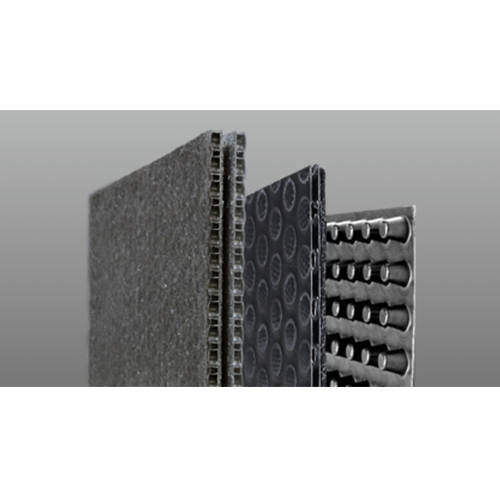

Air bubble hollow profile sheet is 100% PP sheet, the weight range could be from 250 GSM to 3000 GSM, thickness range could be from 2MM above, and products width could be 1000MM to 2000MM. It can be in-line laminated with textile, carpet…etc. and flat surface for printing directly. The honey-comb structure panel is extremely rigid and amazingly lightweight, the application can be False Ceiling, Wall Panel, Door Panel / Partition, wood protector, floor protector, wall facing board, packaging, printing, automotive interiors.

Successful air bubble hollow profile sheet machine installed countries: Japan, China

Model	YSW-FS	YSW-FS-D
Resin	PP, (Additive)
Sheet Weight	250~3000 GSM
Product Width	1000~2000 MM
Machine Speed	10 M / MIN
Optional Accessories	Unwinder, Forming Roller
Production Type	Mono Layer	Multilayer Co-extrusion

YSW-FS machine for making air bubble hollow profile sheet, not regular straight wall type hollow profile, Especially in packaging field, automobile field and construction material field.

Automotive:box multiway, separator layers, inner covering.
Construction:false ceiling, wall panel, door panel/partition, floor protector.
Glass Mills:box multiway, separator layers.
Steel Mills:separator layers.
Consmetic/Pharma:inner box, separator layers.
Logistic:box multiway, layers, cases inner covering.
Food/Beverage:box multiway, separator layers.
