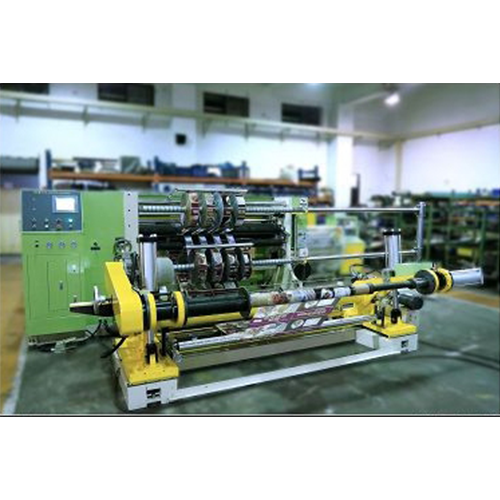

Slitting Machine Integration Series FSL-KT

Classification : Slitting Machine Slitter Rewinder

HCI CONVERTING EQUIPMENT CO., LTD.

HCI CONVERTING EQUIPMENT CO., LTD.
Country: Taiwan
Phone: 886-4-2359-0632
Fax: 886-4-2359-0710
Contact Person: Mr. Alan Ho
  • Unwinding Section
    • Unwind and rewind in the same side, the operator can monitor the jumbo roll and slit reel at same time.
    • Lift-up & floating type unwind stand with 3" air shaft. Single operator is required to manipulate and loading.
    • Web guiding system enable to detect the printing line and web edge.
    • Unwind tension auto controller with load cell sensor.
    • Pneumatic nip roller for tension isolation point between the unwind and rewind.
  • Slitting Section

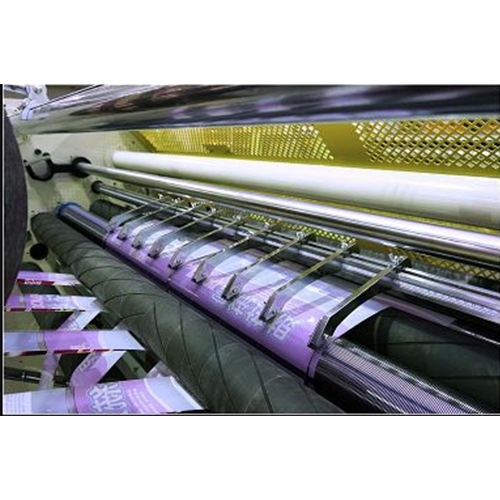

    • Duo cutting system: razor cutting in the air and shear knives.
    • Equipped with statics eliminator, it discharges electrostatic charge while plastic film is being slit and rewound.

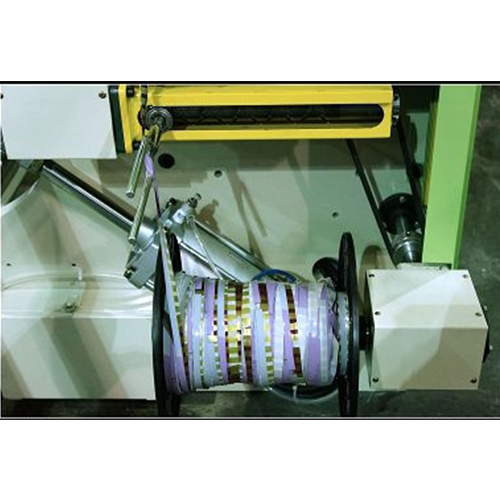

    • Equipped with left/right moving type trim winder on the machine side.

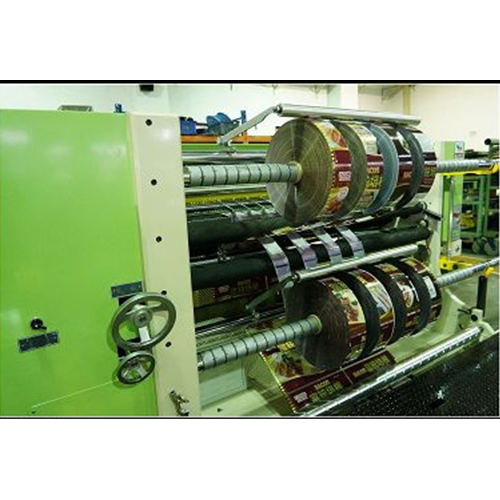

  • Rewinding Section
    • The rewinding mechanism is designed incorporating HCI friction quick lock rings to overcome the problems of material thickness variation.
    • Rewind Lay-on roller *4 sets.
    • Equipped with products discharge device: helps heavy rolls unloading as well as efficiency during slit roll exchange.
  • Control System
    • Three individual motors: 2 for rewind shaft, 1 for the main drive.
    • LCD colorful touch screen.
    • PLC- programmable logic controller.
    • Parameters memory function.
    • Tension manual/ auto mode.
    • Unwind auto stop and break stop function.
    • Meter reached auto stop function.
    • Upper and lower rewind shaft different winding direction function.
    • Rewind tension auto increase function.
  • Optional Accessories
    • Hydraulic ascent / descent unwind stand:
      unwind dia.1,000mm, rewind dia.600mm
    • Laser core positioning device.

Specifications

FSL-KT1300 Slitting Machine

Mechanical Speed(m/min)

300

Unwind Stand

Shafted & Floating Type

Unwind Core Inner Diameter (mm)

76 / 3" or (152 / 6" Optional)

Unwind Web Width (mm)

500 - 1,300

Maximum Unwind Diameter (mm)

800

Unwind Tension Control

Magnetic Powder Brake

Slitting Techniques

Razor In Groove / Shear Knives

Trim Removal

Blower with Trim Winder

Rewind Core Inner Diameter (mm)

76 / 3"

Minimum Rewind Web Width (mm)

50

Maximum Rewind Diameter (mm)

450
