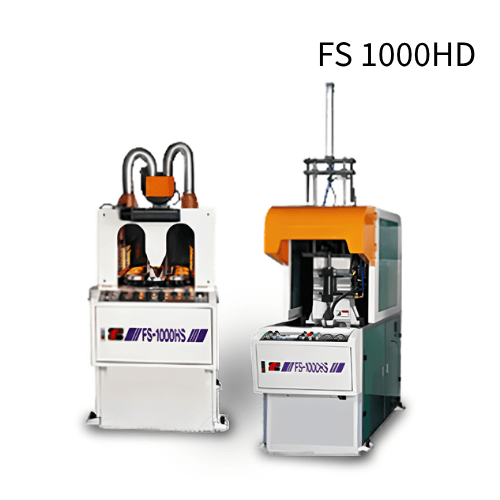

SEMI-AUTO PET Stretch Blow Molding Machine - FS 1000HD

Classification : PET Stretch Bolw Molding Machine

FULL SHINE PLASTIC MACHINERY CO., LTD.

FULL SHINE PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang

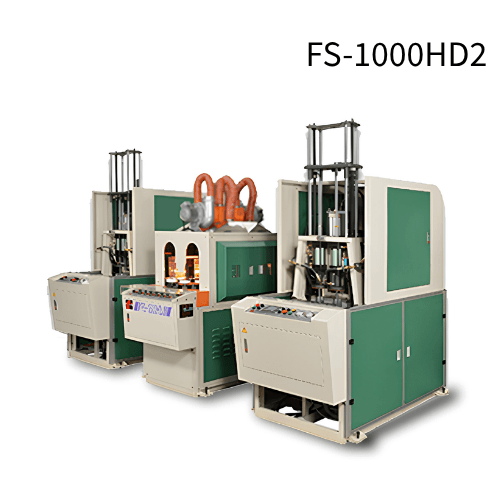

• One Heating Machine Two Stretching Machine.
• Small size and unoccupied space. It could produce 300c.c.~20Liter PET bottles and suitable for various bottles.
• Semi-auto PET Stretch Blow Molding Machine is suitable for limited production but various products.
• This type of machine can produce plastic containers for the widest range of product's capacity. Moreover, machine's size is small and occupies few space.

Model FS-1000HD FS-1000HS FS-2000HS
Number of cavities 1 - 2 1 1
Mold base board mas. width(mm) 390 290 590
Clamping stroke(mm) 200 200 320
*Figures and data are subject to change without notice due to constant research and development.

EXPOSITION OF FULL SHINE'S MACHINE MODEL
SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS-40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
FS-45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
FS-55 (O) Standard / Oblique (T) Three Mold Heads (D) Two Layers
FS-65 (A) Pneumatic (F) Four Mold Heads (T) Three Layers
FS-75 (L) Frontal (E) Eight Mold Heads (F) Four Layers
FS-80 (I) Lateral (L) Six Layers
FS-90 (V) View Stripe
FS-100 (P) PC baby bottle
Example
FS-65 P D S D
Model  FS-1000HD FS-1000HS FS-2000HS
1 Number of cavities   2-Jan 1 1
2 Mold base board max. width mm 390 290 590
3 Clamping stroke mm 200 200 320
4 Mold of thickness mm 210 210 210
5 Cavity stroke mm 110~140 - -
6 Number of carriage   40 40 20
7 For preform internal diameter mm 12~126 12~150 12~150
8 For preform height mm 80~220 80~220 200~400
9 For preform thickness mm 1~4.8 1~4.8 4~9
10 Container diameter mm 45~200 45~200 200~300
11 Container height mm 380 380 320~520
12 Container volume ml 300~1500 1000~5000 10-20L
13 Production output pcs/per-hr 130~240 65~120 65~80
14 Heating power   32 32 60
15 Heating machine length m 1.7 1.7 2.6
16 Heating machine width m 0.95 0.95 0.95
17 Heating machine height m 1.8 1.8 1.85
18 Stretching machine length m 2 2 2.4
19 Stretching machine width m 0.95 0.85 0.85
20 Stretching machine height m 2.8 2.8 2.8
21 Heating machine weight kg 960 940 1200
22 Stretching machine weight kg 1200 1160 3500
