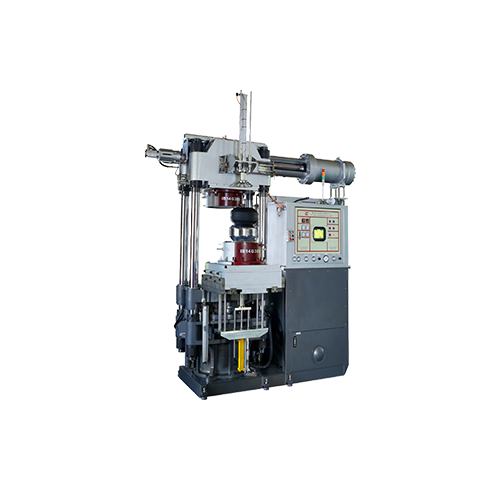

2RT Mold-Open Tire Bladdeer Rubber Injection Molding Machine IRH-S2
Classification : Injection Molding Machine
LIN CHENG TECHNOLOGIES CO., LTD.

Country: Taiwan
Phone: 886-3-5372135
Fax: 886-3-5372381
Contact Person: Danny Lin
-
Mold opening design
The 2RT surpasses the traditional top opening mold that can be used for the double or triple molds with the design of the opening mold and pushing out the mold in the between. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.
-
Material supply system
A special design of two-stage material supply is adopted. It expels bubbles out of the raw material in the most effective way and there is no dead material.
-
Injection volume control
A design incorporating a high precision optical ruler, made in Germany, is adopted. The injection volume can be calculated and controlled precisely.
-
Design of rotary injection board
Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.
-
Safety design
A high-tech infrared safety electronic eye, made in Japan, is available. An automatic warning system is available. To monitors the status of the machine in order to provide extra protection to ensure the operation safety for operators.
-
Oil system design
Dual powers and individual oil system are adopted. Each oil system is designed respectively. It is steady, quiet and low frequency of malfunctions. Two shafts can be operated simultaneously.
Diameter of piston (mm) |
700 |
800 |
900 |
960 |
Clamping force (ton)
|
800 | 1000 | 1200 | 1500 |
Stroke (mm)
|
700 | 700 | 900 | 1000 |
Daylight (mm) | 1200 | 1200 | 1400 | 1700 |
Heating platen (mm)
|
Up1000*1000 Dn1000*1000 |
Up1100*1100 Dn1100*1100 |
Up1200*1200 Dn1200*1200 |
Up1500*1500 Dn1500*1500 |
Horse (hp)
|
30 | 30 | 40 | 40 |
Injection volume(c.c.)
|
8000 | 12000 | 18000 | 24000 |
