Classification : Viatran / Pressure Transducers
Country: Taiwan
Phone: 886-4-2631-3001
Fax: 886-4-2631-7717
Contact Person: Harrison Chang

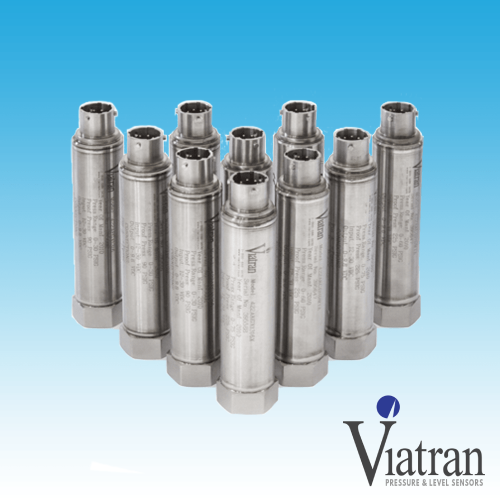

Features
Many Options available
All Stainless Steel construction
IP-68 Rated
ShuntCal
High Pressure Applications
Full Scale Pressure Range
0-100 thru 0-100K PSIS (0-6.89 thru 0-6894 bar)
Accuracy (RSS)
(BFSL Non-Linearity, Hysteresis, Non-Repeatability)
0-300 PSI thru 0-15K PSI Ranges±0.20% FSO ( ±0.15% FSO improved with "DN" option)
< 0-300 PSI or > 0-15K PSI Ranges±0.25% FSO ( ±0.15% FSO improved with "DN" option)
Linearity (Best Fit Straight Line)
0-300 PSI thru 0-15K PSI Ranges±0.10% FSO (BFSL), Typical
< 0-300 PSI or > 0-15K PSI Ranges±0.15% FSO (BFSL), Typical
Hysteresis
< ± 0.05% FSO, Typical
Repeatability
< ± 0.05% FSO, Typical
Full Scale Output (FSO)
16 mA
Zero and Span Balance
±1% FSO
Long Term Stability
≤±0.25% FSO per 6 months
Response Time
<2 mSec to reach 90% FSO
Temperature Effect on Zero
≤±1% FSO per 100°F (37°C)
Temperature Effect on Span
≤±1% FSO per 100°F (37°C)
Compensated Temperature
70°F to 170°F (21°C to 76°C)
Operating Temperature
-40°F to 190°F (-40°C to 87°C)
Storage Temperature Limit
-65°F to 250°F (-53°C to 121°C)

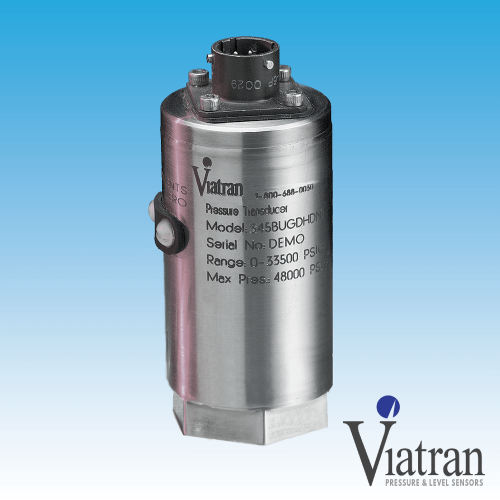

Features
High Accuracy
Many Options available
All Stainless Steel construction
ShuntCal
High Pressure Applications
Performance
Full Scale Pressure Ranges
7500,10K, 15K, 20K, 25K, 30K, 50K, 60K, 75K, 100K PSIA or PSIG
Nonlinearity (Best Fit Straight Line)
≤±0.1% FSO (≤±0.25% FSO for 100K PSI)
Repeatability
≤±0.03% FSO
Hysteresis
≤±0.06% FSO
Full Scale Output (FSO)
16 mA at 70°F (21°C)
Long Term Stability
≤±0.2% FSO per 6 months
Compensated Temperature Range
70°F to 170°F (21°C to 76°C)
Process Media Temperature Range
-40°F to 250°F (-40°C to 121°)
Ambient Operating Temperature Range
-40°F to 185°F (-40°C to 85°)
Storage Temperature Limits
-40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero
≤±0.01% FSO per 1°F - see options
Temperature Effect on Span
≤±0.01% FSO per 1°F - see options

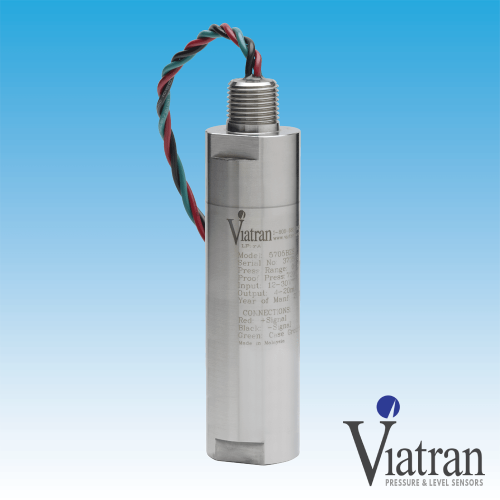

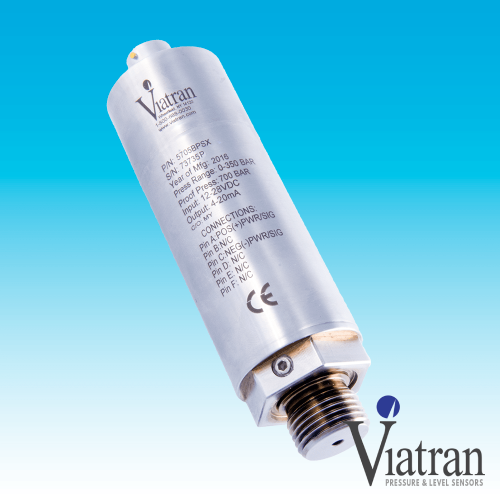

Features
Many Options available
All Stainless Steel construction
High Overpressure Applications
IP-68 Rated
Performance
Full Scale Pressure Range (FSPR)
0-100 Bar (0-1450 psi)
0-150 Bar (0-2175 psi)
0-250 Bar (0-3625 psi)
0-350 Bar (0-5076 psi)
Static Error Band
≤±0.25% FSO typical(Includes BFSL, Hysteresis and Repeatability by RSS)
Full Scale Output (FSO)
4-20 mA (16 mA FSO)
Zero and Span Balance
±1% FSO
Response Time
<2 mSec to reach 90% FSO
Temperature Effect on Zero
≤±1% FSO per 100°F (55.5°C)
Temperature Effect on Span
≤±1% FSO per 100°F (55.5°C)
Compensated Temperature
70°F to 170°F (21°C to 76°C)
Operating Temperature
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Limit
-65°F to 185°F (-53°C to 85°C)
