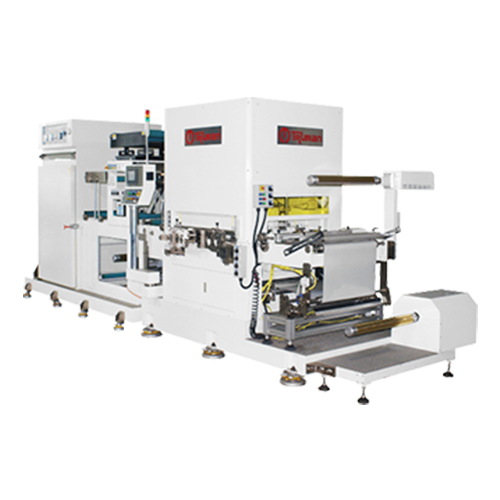

Double-Axle Synchronous Feed Mechanism：
Enhances the production speed and Yield Rate through double-axle synchronous feeding.
Well-Designed And Stabilized Bottom Dead-Point Accuracy：
Uses the patented Bottom Dead-Point Mechanism exclusively developed by TRURAN to achieve +/-0.005mm of repeated positioning accuracy.
High-Accuracy Depth Adjusting Mechanism：
Uses high-accuracy mechanism to achieve 0.01mm of fine-tune accuracy (0.001mm is for optional).
High-Efficiency Boosting Circuit：
Reduces over 30% of power consumption as compared to conventional circuit.
Photoelectric Material Flexibility：
Uses as the dedicated moving system according to the material characteristics.
Unique Material Moving Mechanism：
High-stability servo control system is used to avoid contaminating and scratching the material.
Automatic Lubrication Mechanism：
The entire machine uses Automatic Lubrication Mechanism to reduce daily maintenance work.
Waste Recovery Mechanism：
The System will recover the waste of cutting automatically to save space, while enhancing the operability.
All types of high-performance photoelectric films.
|Working Area L x W (mm)||550mmX650mm|
|Cutting Efficiency||600mm /24times /per min|
|Cutting force (TONS)||70 TONS|
|Motor (HP)||220V 60Hz 3P|
|Air Pressure Requirement||0.5Mpa|
|Weight of Main Unit||Approximately 5500Kg|
