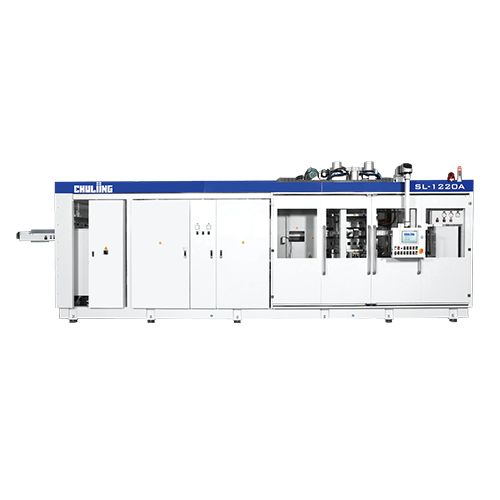

Continuous Thermoforming Machine SL-1220A

Classification : Thermoforming Machine

CHULIING MACHINERY CO., LTD.

CHULIING MACHINERY CO., LTD.
Country: Taiwan
Phone: +886-4-779-5268~9
Fax: +886-4-779-4870
Contact Person: Sales Team

High-Rigidity Design Of Machine Bed:

Integral casting design combined with high-tension steel plate structure offers steady and low noise operation.

4-Column High-Rigidity Guide-Rod Mechanism:

Guide-rods are made of top grade steel, offering high repetitivity of mold clamping in combination with the 4-column mold structure for steady forming.

Servo Chain Feeding System:

Japanese chain operated by servo-controller ensures exact precision of high-speed feeding.

Precision Temperature Control System:

Independent temperature control with respective setting for each temperature zone, uses SSR with PID calculus for controlling the temperature, combined with high-speed transmission and control, offers precision adjustment and is convenience for elevated yield.

Upper And Lower Heating Oven:

German made ceramic heater, temperature accuracy can be controlled very well.

Automatic Lubrication System:

Automatic oil feed for slide parts, eliminating any failure resulting from insufficient lubrication.


Model SL-1220A
Max Forming Area 1200 mm (Feeding direction) x 1000 mm (W)
Min Forming Area 840 mm (Feeding direction) x 600 mm (W)
Max. Forming Height 150 mm
Mold Close Force 84 tons
Sheet Thickness 0.2 - 2.0 mm
Machine Dimension (L) 8400 x (W) 3500 x (H) 3000 mm
Weight Approx. 17,500kg

Third-Movement Forming:

Servo-drive mechanism to enable arbitrary positioning and travel corresponding to mold height.

Rim Pre-Heating System:

Pre-heating the material prior to material feeding, facilitating smooth operation of the subsequent process.

Universal Voltage:

Any voltage is available when specified in advance.

CE Certificate.

EU Version With Entire Stainless Steel System.

    PS    (Polystyrene)
    PLA  (Poly Lactic Acid)
    ABS  (Acrylonitrile Butadiene Stryrene)
    PE    (Polyethylene)
    PET  (Polyethylene Terephthalate)
    PVC  (Polyvinyl Chloride)
    PP    (Polypropylene)
    HIPS (High Impact Polystyrene)
    OPS  (Oriented Polystyrene)
    EPS   (Expandable Polystyrene)
    PSP... Other formable plastic sheet.
