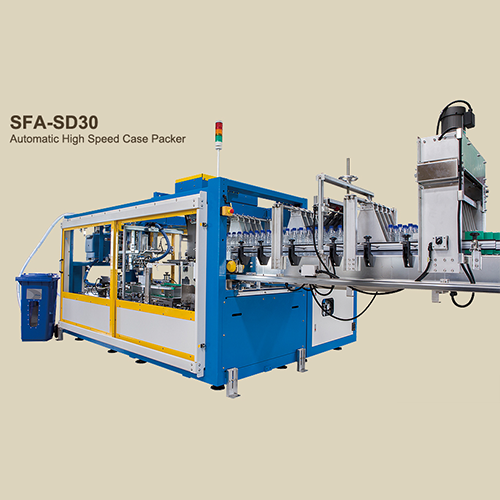

Automatic High Speed Case Packer

Country: Taiwan
Phone: (+886) - 5 - 5913161
Fax: (+886) - 5 - 5912581
Contact Person:
Inquiry Now

  Human-Computer Interaction Design.
  The large processing range comprises PVC, PE, PET, PP Bottles, Glass Bottles, Cans and aluminum cans etc.
  Parameters can be set and modified on the screen.
  Top Load Case Packing system for the Widest Range of Rigit Containers.

Minimization of the changeover times, in order to quickly Switch from a production to another one..

  All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized
    lubrication at outside through oil tubes.
  Product and case/basket size ranges available on request.
  Power Source
According to Installation Place, Local Electricity Sources
  Power Capacity
2.25 kw
  Air Pressure
5.0 ~ 7.0 kg / cm2
  Machine Dimensions
L:4332 x W:1780 x H:1830 mm
  Machine Weight
10 ~ 14 case / basket per min
  Operation Control
English / Chinese Display System
