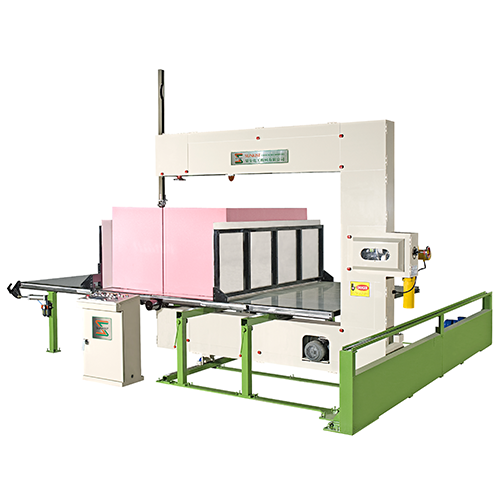

Auto Vertical Cutting Machine

Classification : Vertical & Angle Cutting Machine

SUNKIST CHEMICAL MACHINERY LTD.

Country: Taiwan

Phone: 886-2-23956686

Fax: 886-2-23217266

Contact Person: Ken Hwang

Inquiry Now

Cutting Table Size	Inside of blade : 2184 mm Outside of blade : 2184 mm Length : 2184 mm
Cutting Blade	10 - 20 mm
Motorize Grinding Unit	With dia. 100 mm cup
Right Side Fence	Height : 800 mm ( standard ) Feeding cutting material speed : aprrox. 0 m - 11 m / min.
Left Side Fence	Height : 600 mm
Cutting Height	1000 mm, Motorized up and down adjustment of knife guide.
Power Require	Approx.9.3 kW
Floor Space	Approx. L 6410 x W 4600 x H 2960 mm

Fully automatic vertical cutting machine just by placing the foam block on the cutting table and preset the cutting thickness. The cutting fence in the right side of the table can be moved to the left according to the pre-selected space and it will stop automatically and the cutting unit to move forward or backward to cut any desired thickness. The cutting direction can be pre-selected on the monitor for cutting single or both directions, and the cutting number can also be preset by the control panel.
