PRM-TAIWAN

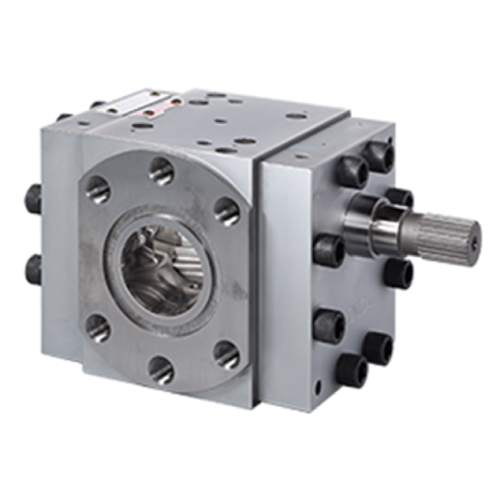

Gear Pumps Polymer Resin

Classification : EXTRUSION PERIPHERALS
Country: Taiwan
Phone: 886-4-2630-3228
Fax: 886-4-2630-3208
Contact Person: Rose Wang #110 /Emma Liao #126
Blog Inquiry Now
  • 90% strong volume rate guarantee.
  • Low EGR rate for fast and stable supply of flow.
  • Pressure difference between inlet and outlet: up to 150 Bar.
  • Gear enables high speed performance and cut body heating.
  • Cut operation costs.
  • Reduce power consumption by extruder drive.
  • Extend screw life cycle.
  • Reduce wastes and losses and materials consumption for better yield.
  • Reliable product quality.
  • Heating method: Electric heating, oil heating (56 CC or later model).
Application   LD - PE,
LLD - PE
PC PMMA HI - PS ABS GP-PS PP A - PET
Viscosity
(Pas at 10 / sec.)
  1500 - 4000 1000 - 2500 2000 - 4000 2000 - 4000 3000 - 5000 1500 - 2500 1000 - 2000 1300 - 2000
Density at melt
(g / cm3)
  0.73   1.08   1.09   0.93   0.96   0.93   0.73   1.17
  (cc / rev.) rpm kg / h rpm kg / h rpm kg / h rpm kg / h rpm kg / h rpm kg / h rpm kg / h rpm kg / h
JYP - 20 2.1 155 13.5 78 10.2 116 15.2 124 13.8 109 12.5 157 17.5 156 13.6 158 22.3
JYP - 22 4.7 155 30.5 78 23 116 34 124 31 109 28 157 39 156 30.5 158 50
JYP - 28 10.2 148 63 70 44 114 72 120 65 107 60 142 77 151 64 145 100
JYP - 36 25.6 132 140 62 100 104 165 110 150 100 140 136 185 141 150 139 240
JYP - 45 46.3 125 240 62 180 94 270 96 235 86 216 122 300 125 240 128 400
JYP - 56 92.6 107 410 62 360 85 490 92 450 83 420 111 545 117 450 118 735
JYP - 70 176 102 750 56 610 76 830 82 760 77 740 102 950 106 775 107 1265
JYP - 90 371 87 1350 52 1200 66 1520 72 1410 67 1350 85 1680 96 1480 96 2415
JYP - 110 716 77 2300 42 1880 57 2520 62 2360 58 2260 67 2540 86 2550 86 4140
