Extrusion Blow Molding Machine PK-3L Series

Classification : Extrusion Blow Molding Machine

PARKER PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-23396828

Fax: 886-4-23394679

Contact Person: Sanni Yang

Inquiry Now

Features

HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance.
Blowing Unit/ Die Head movement for changing mold easily, as option.
Built with safety devices to provide maximum protection for the machine operator.
High plasticizing capacity extrusion screw is designed to handle material variations.
Plasticizing screw and barrel is precision machined from special nitrogen treated steel.
Water cooling technology controls feed zone temperature.
Chiller circulated hydraulically controlled blow-pin.
Pneumatically operated automatic deflashing unit.
This model is excellent for producing containers with viewing stripe with three color/three layer containers such as oil bottle, body lotion bottles, shampoo bottles, etc.

Application

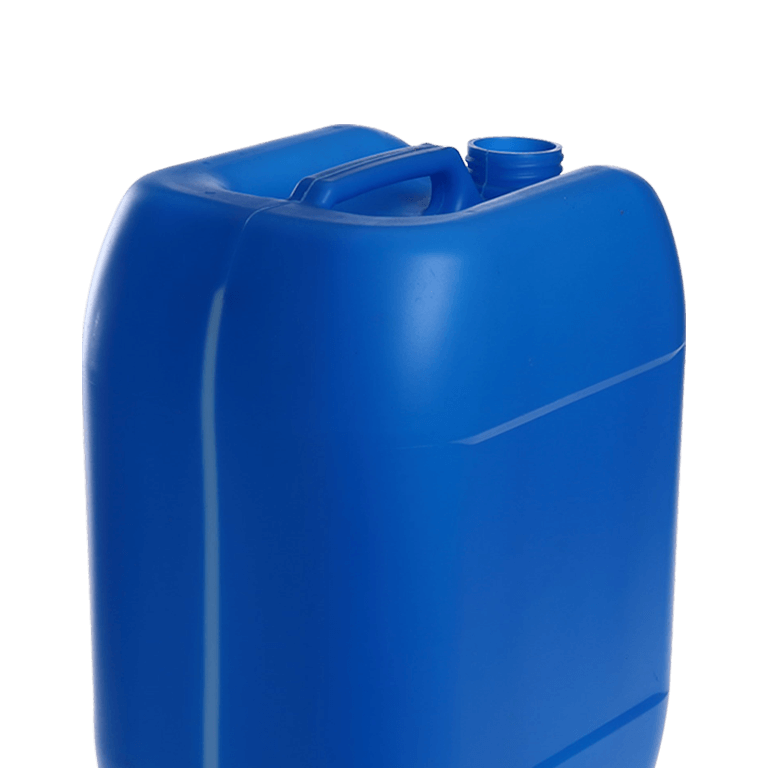

Jerry Can

Cosmetic / Personal care

Edible Oil

Jerry Can

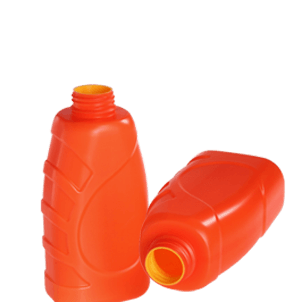

Lub-oil Containers

Household Chemical

Lub-oil Containers

Single/Double Station
Single/Double/Triple/Quardruple..8 Head
Production Volume:2ml~35L
Multi layers: 3 Layers or 3 Colors
Multi cavities: 1~8 cavities
Specialize for the PE/PP/Co-Extrusion material
Special function:View Stripe
Clampoing system:Toggle/3 tie bar/4 Tie Bar
Driven Model: Hybrid servo motor drive system/ high performace Hydraluic power saving system/Close loop proportional valve
Support Parison controller/Auto Deflasing/Auto Recycling/Auto material feeder/Remote trouble shooting funciton/IML

MODEL	UNIT	PK55C - 3LV		PK65C - 3LV		PK75C - 3LV		PK75C - 3LV		PK90C - 3LV		PK90C - 3LV		PK90C - 3LV		PK65CT - 3LV		PK75CT - 3LV		PK75CT - 3LV		PK90CT - 3LV		PK100CT - 3LV		PK110CT - 3LV		PK120CT - 3LV
Material To Be Used		PE/PP		PE/PP		PE/PP		PE/PP(Toggle)		PE/PP		PE/PP(Toggle)		PE/PP(Toggle)		PE/PP		PE/PP		PE/PP(Toggle)		PE/PP(Toggle)		PE/PP(Toggle)		PE/PP(Toggle)		PE/PP(Toggle)
PRODUCT		S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D
Product Volume (Min/Max)	cc	500-2500	200-1000	1000-5000	400-2000	4000-10000	10000-3000	4000-10000	1000-3000	10000-20000	2000-5000	10000-20000	2000-5000	10000-20000	2000-5000	500-2500	300-1000	1000-5000	400-2000	1000-5000	400-2000	4L-10L	1L-3L	10L-20L	2L-3L	10L-20L	2L-5L	10L-20L	2L-5L
Product Dia. (Min/Max)	mm	30-130	30-100	50-180	50-120	70-220	40-140	70-220	40-140	150-220	80-200	150-220	80-200	150-300	80-230(270)	30-130	30-120	50-180	40-120	50-180	40-140	70-180	40-160	150-220	80-220	150-220	80-220	150-220	80-220
EXTRUDER		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20		20/60/20
Screw Diameter	mm	25/35/45/35		25/40/55/40		25/45/65/45		25/45/65/45		25/55/75/55		25/55/75/55		25/55/75/55		25/40/55/40		25/45/65/45		25/45/65/45		25/55/75/55		25/65/90/65		25/65/90/65		25/75/100/75
L / D		20/22/24/22		20/22/24/22		20/24/24/24		20/24/24/24		20/24/24/24		20/24/24/24		20/24/24/24		20/22/26/22		20/24/26/24		20/24/26/24		20/24/26/24		20/24/28/24		20/26/28/26		20/26/28/26
Screw-speed Range (PE/PP)	RPM	20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80		20-80
Induction Motor + Inverter (PE/PVC)	HP	2/5/10/5		2/7.5/15/7.5		2/10/25/10		2/10/25/10		2/15/40/15		2/15/40/15		2/15/40/15		2/7.5/20/7.5		2/10/22/10		2/10/25/10		2/15/40/15		2/25/60/25		2/30/75/30		2/40/100/40
Max. Extruding Output/Per Hour	kgs	3/8/20/8		3/12/30/12		3/16/50/16		3/16/50/16		3/24/80/24		3/24/80/24		3/24/80/24		3/12/40/12		3/16/50/16		3/16/50/16		3/24/80/24		3/40/120/40		3/50/150/50		3/66/200/66
Barrel Heating Zone	zone	3/3/3/3		3/3/3/3		3/4/4/4		3/4/4/4		3/4/3/4		3/4/3/4		3/4/3/4		3/3/4/3		3/3/4/3		3/3/4/3		3/4/4/4		3/4/4/4		3/4/4/4		3/4/4/4
Barrel Heating Capacity	kw	3/4.5/4.9/4.5		3/5.7/7.4/5.7		3/7.4/11.6/7.4		3/7.4/11.6/7.4		3/9.6/14/9.6		3/9.6/14/9.6		3/9.6/14/9.6		3/5.7/8.1/5.7		3/7.4/11.6/7.4		3/7.4/11.6/7.4		3/9.6/15.8/9.6		3/14.6/23.6/14.6		2.3/14.6/23.6/14.6		2.3/15.8/24.8/15.8
DIE HEAD
Twin Cavity Center Distance	mm	x	140	x	140	x	160	x	160	x	225	x	250(290)	x	250(290)	x	140	x	160(140)	x	160(140)	x	180	x	250	x	250	x	250
Heating Zone	zone	5	6	5	6	5	6	5	6	5	9	5	9	5	9	5	6	5	6	5	6	5	6	5	9	5	9	5	9
Heating Capacity	kw	6.5	11.9	10.1	11.9	13.5	15.1	13.5	15.1	16.8	24.8	16.8	24.8	16.8	24.8	5.2	11.9	10.1	11.9	10.1	11.9	13.5	15.1	16.8	24.8	16.8	24.8	16.8	24.8
MOLD PLATEN
Clamping Force	Ton	6.5		10.5		15.5		15.5		18		21.5		21.5		6.5		10.5		15.5		18		21.5		21.5		21.5
Max. Opening Stroke	mm	410		550		660		660		660		660		660		410		550		550		550/660		660/900		660/900		660/900
Min. Claming Stroke	mm	140		185		220		220		220		220		220		140		185		185		185/220		220/300		220/300		220/300
Platen Size (WxH)	mm	320x340		350x410		460x430		460x485		520x485		600x485		600x600		350x410		460x430		460x485		520x485		600x485/660		600x485/660		300x485/660
Carriage Stroke	mm	∅40x380		∅40x410		∅50x520		∅50x520		∅50x580		∅50x720		∅50x720		∅40x450		∅50x520		∅50x520		∅50x580		∅50x720		∅50x720		∅50x720
HYDRAULIC SYSTEM
Pump Motor	HP	15		20		30		30		30		30		30		30		30		30		30		40		40		40
Pump Pressure	kg/cm²	160		180		180		180		180		180		180		180		180		180		180		180		180		180
Air Pressure	kg/cm²	5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7		5-7
Air Volume	NL/Min	500		600		750		750		1500		1500		1500		600		900		900		1500		1500		1500		1500
Oil Tank Capacity	gallon	61		61		107		107		107		107		107		100		100		100		100		107		107		107
Total Power Consumption	kw	50.5	56.6	70.2	72.7	100	102.3	100	102.3	128.8	140.5	128.8	140.5	128.8	140.5	77.3	84.7	96.9	99.1	96.9	99.1	127.3	129.6	185.9	194.6	204.7	213.4	242	250.7
Average Power Consumption	kw	35.35	39.62	49.14	50.89	70	71.61	70	71.61	90.16	98.35	90.16	98.35	90.16	98.35	54.11	59.29	67.83	69.37	67.83	69.37	89.11	90.72	130.13	136.22	143.29	149.38	169.4	175.49
Machine Weight	Ton	5.9	5.9	7	7	8.1	8.2	3	8.4	11.4	11.5	11.9	12.1	12.2	12.3	9.7	9.8	11.8	11.9	12	12.1	14	14.1	15	15.1	15.6	15.7	16.4	16.5
