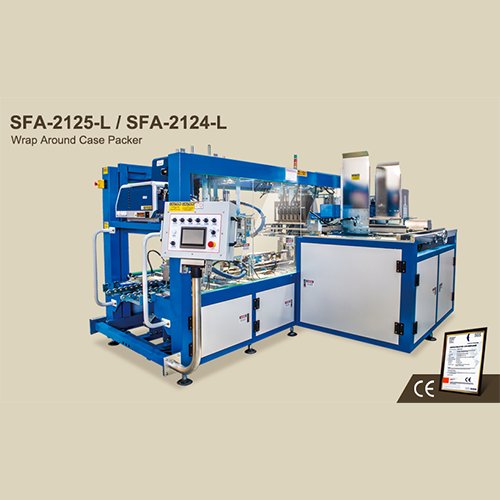

Wrap Around Case Packer

Wrap Around Case Packer
SA FWU industry co. ltd
SA FWU industry co. ltd
Country: Taiwan
Phone: (+886) - 5 - 5913161
Fax: (+886) - 5 - 5912581
Contact Person:
Inquiry Now


  Human-Computer Interaction Design.
  Fully Wrap Around carton packing and Tray Packing operation.
  The large processing range comprises PVC, PE, PET, PP Bottles, Glass Bottles, Cans and aluminum cans etc.
  Parameters can be set and modified on the screen.
  Glue Spraying distance is control by encoder, ensuring consistent glue spraying length on each carton and permit adjustment and
    memorizing at any time.
  Minimization of the changeover times, in order to quickly Switch from a production to another one
  All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized
    lubrication at outside through oil tubes.
  Glue spraying is calculated by encoder, ensuring consistent glue spraying length on each carton and permits adjustment and
    memorizing at any time.
  CE Certification.



  MODEL
SFA-2125-L SFA-2124-L
  Power Source
According to Installation Place, Local Electricity Sources
  Power Capacity
8 kw
  Air Pressure
5.0 ~ 7.0 kg / cm2
  Machine Dimensions
L : 6070 mm x W : 2800 mm x H : 2006 mm
  Machine Weight
1500 kg
  Processing Capacity
25 cases / min 15 cases / min
  Operation Control
English / Chinese Display System
  Sealing Method
Hot Melt Glue
