The lamination machine are used for coating of thin layer of Polyolefin (mainly LDPE/PP) on substrates like woven fabric, BOPP film, paper, jumbo bag (FIBC) etc, which is for moisture-proof, dust-proof, and structurally strong enough.

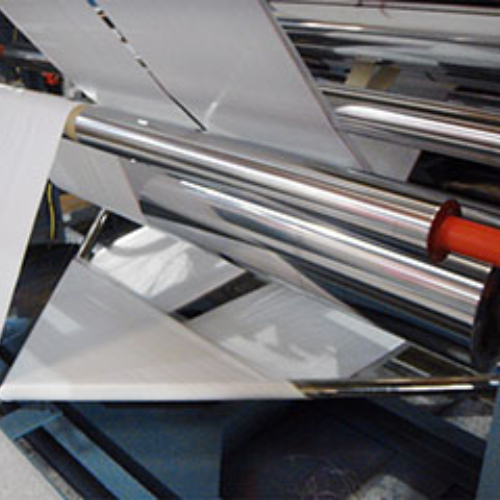

- Adopts “Turn Bar” to make double side lamination in one time with one extruder.
- Adopting SCR control for power saving and precise PID temperature controller.
- Machine is synchronously controlled by PLC program and easy to operate through HMI for receipt setting, temperature control, length counting, alarm record.
- The brake system for unwinder is clip type pneumatic brake that keeps machine working long-lasting.
- With Pre-Heating Roller and heating pipe to treat the material to get the good sticking effect.

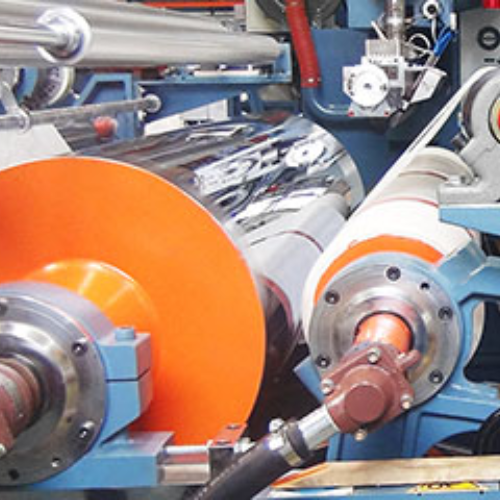

- Mirror Finished Chill Roller (Optional) gives the shiny appearance on the bag to provide the smooth basis prior to printing.

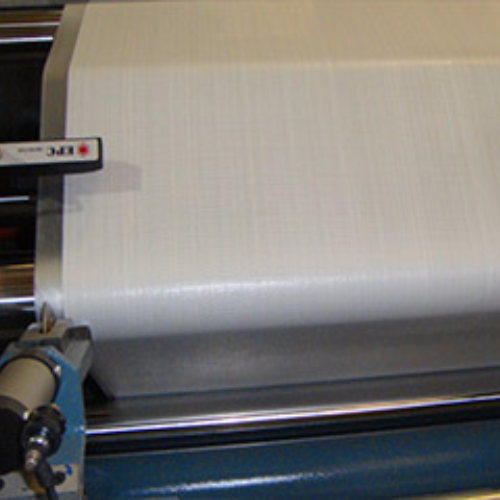

- Printing Mark Tracking System (Optional) of the printed BOPP on both sides by means of precise tension controller, color mark sensor and software.
FD-LA 90/1650 (ST-B)
FD-LA 100/1850 (ST-B)
FD-LA 100/2000 (ST-B)
|T-Die Length||1650 mm||1850 mm||2000 mm|
|Screw Diameter||90 mm||100 mm||100 mm|
|Width of Product||500~1400MM (Single Side), 400~650 MM (Double Side by Turn Bar)||700~1600MM (Single Side), 400~750 MM (Double Side by Turn Bar)||900~1800MM (Single Side), 400~850MM (Double Side by Turn Bar)|
|Extrusion Capacity||Max. 150 kgs/hr||Max. 200 kgs/hr||Max. 200 kgs/hr|
|Machine Speed||40-90M/MIN (Single Side), 30~70M/MIN (Double Side by Turn Bar)||40~80M/MIN (Single Side), 30~60M/MIN (Double Side by Turn Bar)||40~90 M/MIN (Single Side), 30~60 M/MIN (Double Side by Turn Bar)|
- Auto Loader: 1 Set
- Air Compressor (1 HP): 1 Set (For FD-LA90/1650(ST-B) & FD-LA100/1850(ST-B)
- Air Compressor (3 HP): 1 Set (For FD-LA100/2000(ST-B)
- Crusher for Edge Yarn + Cyclone Separator
- Edge Yarn Collection Winder: 1 Set
- Mixer: 1 Set
- Cooling Tower: 1 Set
- Turn Bar
- Water Chiller
- 3”/4” Air Shaft for Unwinder
- BOPP Unwinder
- Auto. Tension Controller for BOPP
- Corona Treater
- Mirror Surface Roller
- Silicone Roller
- Mirco-Perforation Device
- Auto. Cutting Device for Winder
- Single Rail Crane
- Second Unwinder
- Dozer with Auto. Loader
- Hopper Dryer
- Smoke Exhausting Device
