Precision Air Cutter / Aluminum Extrusion Air Cutter / Vacuum Blower

Precision Air Cutter / Aluminum Extrusion Air Cutter / Vacuum Blower
Classification : EXTRUSION PERIPHERALS
GMA MACHINERY ENTERPRISE CO., LTD.
GMA MACHINERY ENTERPRISE CO., LTD.
Country: Taiwan
Phone: 886-4-2630-3228
Fax: 886-4-2630-3208
Contact Person: Rose Wang #110 /Emma Liao #126
Blog Inquiry Now

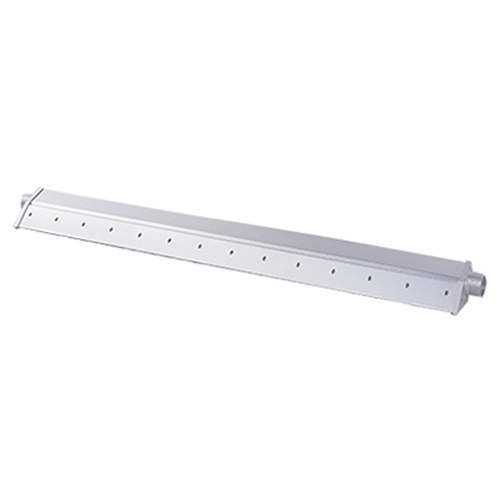

AIR KNIFE
  • Product type: Standard air cutter
    Span: 300 - 2500 mm.
    Opening range: 1 mm ~ 1.5 mm.
    Outlet type: direct or 45 degree air blow.
    Air volume adjustment: blower.
    Blower specification recommendations:
    > 3 HP for 300-1000 mm.
    > 5 HP for 1001-2000 mm.
    Blower type recommendation: ring type.
    Others: For thin film (dripping) production line, custom design and manufacturing, upon request.
  • Product type: precision air cutter
    Span: 500-2500 mm.
    Opening range: 1 mm ~ 1.5 mm.
    Outlet type: direct or 45 degrees air blow.
    Air volume adjustment: opening adjustment by bolt.
    Blower specification recommendations:
    > 3 HP for 300-1000 mm.
    > 5 HP for 1001-2000 mm.
    Blower type recommendation: ring type.
    Others: For thin film (dripping) production line, custom design and manufacturing, upon request.

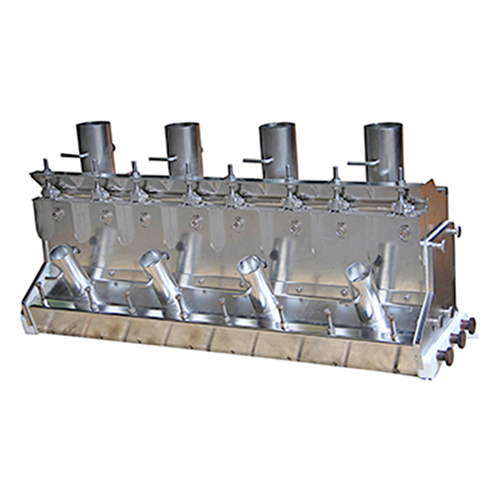

VACUUM BOX

  • Blower width: 500-2500 mm
AIR KNIFE
  • Air cutter designed to Extrusion Die thin film on roller surface.
    Provide stable air flow.
    Compress and exhaust heat generated by rolling wheel.
  • Aluminum made body for easy cleaning.
  • Built-in special design deflector.
  • Uniform air outlet and stable air flow.
  • Adjustable air outlet size.



VACUUM BOX

  • Vacuum the space between roller and Extrusion Die.
  • Reduce air generated between film and roller during high speed thin film production which, in turn, leads to less product flaws.
  • Customization according to customer production requirements, upon request.
