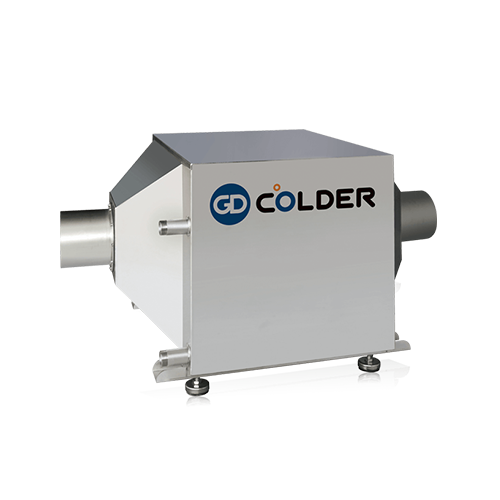

Blown Film Cooler

Blown Film Cooler
Classification : Positive Pressure Blown Film Cooler
GIN-DAI PRECISION TECHNOLOGY CO., LTD.
GIN-DAI PRECISION TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-6-6530678
Fax: 886-6-6529053
Contact Person: Reiko Huang
Inquiry Now
Model BFC-0120P BFC-0205P BFC-0308P BFC-0510P
Collocation windmill HP 1 2 3 5
Collocation GIN-DAI chiller AT-24B AT-60A AT-90A AT-120A
Cold-wind export temperature ℃ 12~30℃
Cold-wind ability Kcal/hr 50HZ 5,000 12,000 18,000 24,000
60HZ 6,000 15,000 22,500 30,000
Ventilation amount CMM 7.5 13 19 25
Cold-wind Caliber mm ψ100 ψ125 ψ150 ψ150
Ice-water caliber inch 3/4 1 1 1¼
Drain pipe caliber inch 1/4 1/4 1/4 1/4
Dimension mm 600×510×500 640×730×650 720×730×650 900×875×770
Weight kg 45 130 150 170
Model BFC-0815P BFC-1020P BFC-1525P BFC-1530P
Collocation windmill HP 8 10 15 15
Collocation GIN-DAI chiller AT-180A AT-240A AT-300A AT-360A
Cold-wind export temperature ℃ 12~30℃
Cold-wind ability Kcal/hr 50HZ 34,000 48,000 60,000 72,000
60HZ 45,000 60,000 75,000 90,000
Ventilation amount CMM 38 50 65 80
Cold-wind Caliber mm ψ150 ψ200 ψ250 ψ250
Ice-water caliber inch 1½" 2 2½ 2½
Drain pipe caliber inch 1/2 1/2 1/2 1/2
Dimension mm 990×875×770 1,100×1,010×940 1,250×1,010×940 1,330×1,010×940
Weight kg 190 210 230 250
Model BFC-2040P BFC-2550P BFC-3060P
Collocation windmill HP 20 25 30
Collocation GIN-DAI chiller AT-480A AT-600A AT-720A
Cold-wind export temperature ℃ 12~30℃
Cold-wind ability Kcal/hr 50HZ 96,000 120,000 144,000
60HZ 120,000 150,000 180,000
Ventilation amount CMM 100 125 150
Cold-wind Caliber mm ψ300 ψ300 ψ300
Ice-water caliber inch 3 3 3
Drain pipe caliber inch 3/4 3/4 3/4
Dimension mm 1,330×1,010×1,090 1,570×1,120×1,090 1,700×1,120×1,090
Weight kg 270 290 310
