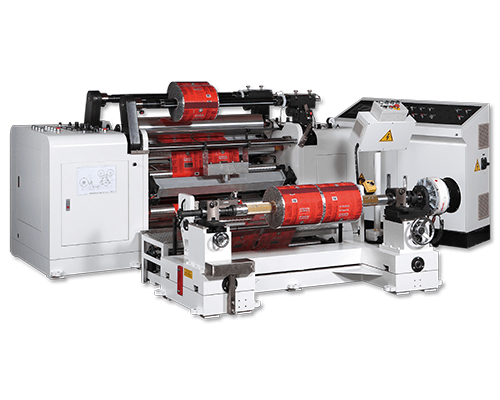

Narrow Width Slitting Machine－Nera Series

Classification : Slitting Machine

DAH BAH MACHINERY INDUSTRIAL INC.

Country: Taiwan

Phone: 886-4-24832477

Fax: 886-4-24830852

Contact Person: Angela Chi

Inquiry Now

Materials

Laminated films 40-150μ; OPP 30-150μ; CPP 30-150μ; PVC (Soft), 30-150μ; PET 30-80μ.

Rewinding Type

Unwinding Section

Shaft less unwinding stand (Motorised left / right movement) with mechanical chuck.
Equipped with digital type line position control (LPC) to ensure accurate slitting position.

Slitting Section

Rewinding Section

Cantilevered type mechanical rewinding shafts for easy operation.
Equipped with ball type friction rings, which not only can facilitate the concentricity of the paper cores and finish rolls, but also can make unloading easier without causing paper dust.
Equipped with automatic tension controlling system and load-cells. The actual tension is digitally displayed, increasing the tension control precision with minimal operation effort.
Static eliminated brush equipped.
Lay-on roller pneumatic pressure control system.
Unloading device.

Model No.		SLF-MB200
MAX. PARENT WEB WIDTH		500~2000mm
MAX. PARENT WEB DIAMETER		500/ 650/ 800/1000mm
THICKNESS RANGE		Depends on various materials’ conditions
MAX. REWIND DIAMETER		420/600/800mm
MIN. SLIT WIDTH		20mm(Depends on various materials' conditions)
UNWIND/REWIND CORE I.D.		3" (Or as request)
MAX. MACHINE SPEED		200/300M/min.
INSTALLATION INFORMATION (For 1000mm standard machine)	NET WEIGHT	3000kg
	AREA REQUIRED	L2200xW3300XH1405
	POWER	As request
	AIR	6kg/cm 3

APPLICATION & MATERIALS

OPP, PET, CPP, PVC(rigid), Shrinkable PP Film, Cellophane, Paper, Silicon Coated Paper, Metalized Paper,
Self-adhesive Paper, Aluminum Foil, Copper Foil, Thermal Transfer Film, Non-woven Cloth, Formed PP, PS.

REWINDING TYPE

UNWINDING SECTION

Lift-up type mechanical shaft with φ3" adapters for heavier web loading.
Equipped with edge position control (EPC) to provide accurate slitting position.

UNWINDING TENSION CONTROL

Equipped with automatic tension controller (diameter-calculating type) to provide stable tension and easy operation.

SLITTING SECTION

Shear knife cutting or razor blade cutting in the air or groove is available according to material characteristics.
Static eliminating device equipped.
Equipped with automatic counter which will stop the machine when reaching pre-set length.

REWINDING SECTION

Equipped with rewind AC induction servomotors to provide constant tension. Rewind tension gain is also adjustable.
Lift-up type mechanical shaft for heavier roll unloading.

REWINDING TENSION CONTROL

Automatic tension control system.
Equipped with pneumatic/hydraulic pressure control system. Pressure is adjustable according to finish-rolls' condition.

TRIMMED WASTE

OPTIONAL ACCESSORIES

Unwind hydraulic loading device (with shaft)
Unwinding/rewinding airshaft φ3"/6"
φ 6" air chuck
Shaftless unwind stand (Electrical left/right moving)
Unwind shaftless hydraulic loading device (Hydraulic up/down, left/right moving)
Line position control (LPC)
Automatic tension controller with load cell (Unwinding section)
Splicing table with suction device
Shear cutter blade/razor blade/cutter holder
Shear cutter/razor cutter holder for slitting width less than 20 mm
Trim rewinder with speed synchronizing system
Mechanical shaft for different rewinding core sizes
