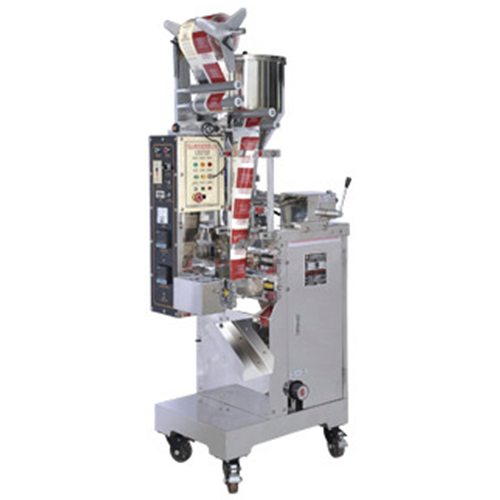

AUTOMATIC QUANTITATIVE LIQUID FILLING AND PACKAGING MACHINE

Classification : product

CHUNG SHAN MACHINERY WORKS CO., LTD.

Country: Taiwan

Phone: 886-5-268-8619

Fax: 886-5-268-8729

Contact Person: Dabby Wu

Inquiry Now

Packaging type(One option only)	3 sides sealing, 4 sides sealing or pillow type packaging
Packaging volume	5-30cc or 30-80cc or 80-150cc or 150-300cc or 300-500cc (varies with product density)
Packaging size	Film width (W)40-160mm or 80-240mm Bag length (L)50-110mm or 70-180mm (Other size are available upon request)
Packaging speed	20-70 bags/min
Motor	1/4 HP (Main drive) 1/25 Hp (Controller)
Power supply	110/220V, 50/60HZ Single phase (can be made upon request)
Machine dimensions (L x W x H)	80 x 78 x 190 cm (Approximately)
Packing dimensions (L x W x H)	112 x 103 x 200 cm (Approximately)
Net weight	450 kgs
Gross weight	550 kgs

Photo-cell controlled ensure accurate packaging performance.
This unit can perform either three sides sealing, four sides sealing or pillow type packaging. Specify desired packing choice when ordering.
Equipped with a product counting device.
All components in direct contact with the product are made of stainless steel, conforming to sanitary standards.
Convenient package size & packing speed are adjustable. Adjustment can be made while the machine is running.
The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatically operated.
Machines can be made to customers' own specifications on request.
Equips filling and sealing control ensure clean sealing performance
