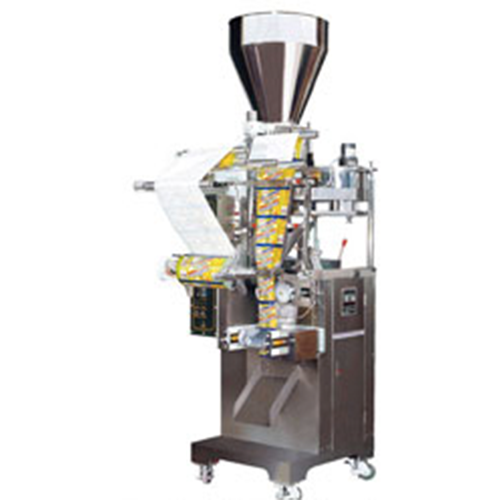

  • Photo-cell controlled, ensure extremely accurate bag forming, sealing and cutting performance.
  • This unit can perform either three sides sealing, four sides sealing or pillow type packaging.Specify desired packing choice when ordering.
  • Equipped with a product counting device.
  • All components in direct contact with the product are made of stainless steel, conforming to sanitary standards.
  • Convenient package size & packing speed are adjustable. Adjustment can be made while the machine is running.
  • The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatically operated.
  • Date coder available on request.
  • Machine can equip vibration loading system according to the packaging product characteristic.
  • Machines can be made to customers' own specifications on request.
Packaging type(One option only) 3 sides sealing, 4 sides sealing or pillow type packaging
Packaging weight 100-600g (varies with product density)
Packaging size Packing film width (W) 200-360mm
Bag length (L) 120-240mm
(Specifications available upon request)
Packaging speed About 20-50 bags/min
Motor 1/4 HP (Main drive)
1/25 Hp (Controller)
Power supply 110/220V, 50/60HZ single phase (can be made upon request)
Machine dimensions (L x W x H) 165 x 120 x 230 cm (Approximately)
Packing dimensions (L x W x H) 185 x 140 x 215 cm (Approximately)
Net weight 860 kgs
Gross weight 980 kgs
