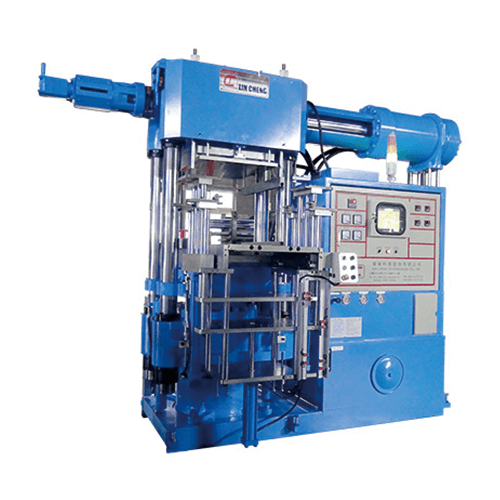

3RT Mold-Open Rubber Injection Molding Machine IRH-S3

Classification : Injection Molding Machine
Country: Taiwan
Phone: 886-3-5372135
Fax: 886-3-5372381
Contact Person: Danny Lin
Inquiry Now
  • Mold opening design

    The 3RT surpasses the traditional top opening mold that can be used for the triple or four molds with the design of the opening mold and pushing out the mold in the between. The opening mold can be adjusted by the software with separate opening, separate pushing out the mold in between, continuous opening and continuous pushing out the mold in between.

  • Injection volume control

    High precision optical ruler is adopted for precisely calculating and controlling.

  • Design of rotary injection board

    Special designs for loading/unloading functions are provided. It causes no dead material in the injection nozzle. It is easy to clean the material. It is durable and the quality is stable.

  • Safety design

    A high-tech infrared safety electronic sensor and automatic warning system are adopted to monitors the status of machine in order to provide extra protection to ensure the operation safety for operators.

  • Hydraulic system Design

    Hydraulic system Designed by proportional pressure and flow ratio, which is steady, quiet and low frequency of malfunction. Two shafts can be operated simultaneously.

Diameter of piston (mm) 225 250 350 400 450 500 560 630 700 900
Clamping force (ton) 83 100 200 250 300 400 500 600 800 1200
Stroke (mm) 400 400 500 600 600 600 600 600 700 900
Heating platen (mm) 350*450 400*400 503*508 560*560 580*600 700*700 800*900 1000*1100 1100*1100 1300*1300
525*560 700*700
Horse (hp) 10 10 15 20 20 20 20 30 40 50
Injection volume(c.c.) 500 500 1500 2000 3000 5000 7900 10000 12000 18000
900 4000
Injection pressure (kgf/cm²) 1650 1650 1680 1700 1700 1750 1778 1800 1800 1900
