Medical Tube Extrusion: Essential Equipment, Materials, and Techniques for Precision Manufacturing

Medical tube extrusion is at the heart of modern healthcare device production. From IV lines to catheters, this specialized process delivers the high-precision tubing that powers today’s medical innovations. In this guide, we’ll break down the key machinery, materials, and production methods that ensure performance, compliance, and reliability in every length of medical tubing.

1. What Is Medical Tube Extrusion?

Medical tube extrusion is a continuous manufacturing process that converts medical-grade plastic into flexible or rigid tubing with exact dimensions. These tubes must meet strict tolerances to ensure patient safety and meet regulatory standards. Understanding the basics allows manufacturers to optimize both quality and efficiency.

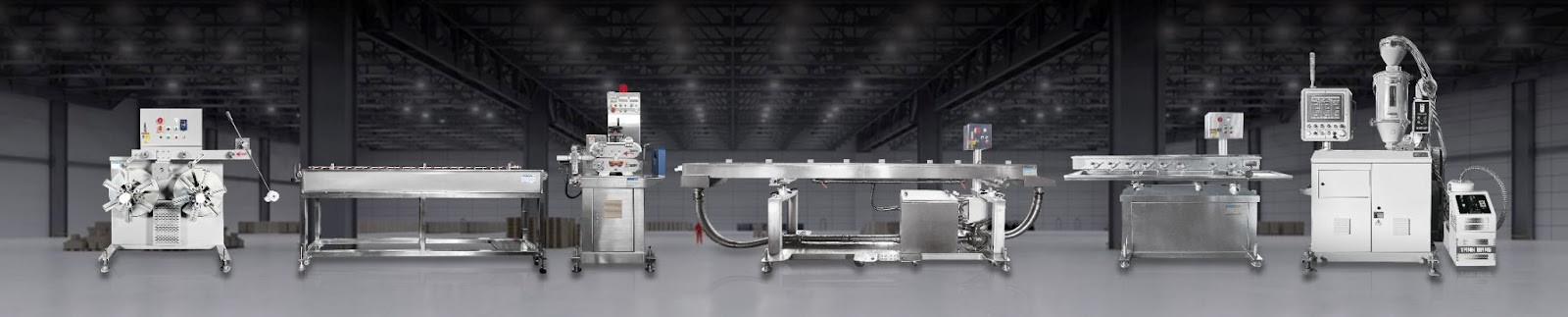

2. Core Machinery in a Medical Tube Extrusion Line

Extruder Systems

The extruder is the centerpiece of the line, melting and shaping raw materials into tubing.

Key features include:

• Precision Screws and Barrels: Designed to maintain consistent melt flow and mixing, ensuring minimal material degradation and tight dimensional control.
• Advanced Temperature Controls: Multi-zone heating and smart sensors keep material viscosity stable across the barrel for high-quality output even during long runs.

Dies & Calibration Systems

• Multi-Lumen Dies: Create tubes with multiple channels, ideal for multi-functional catheters.
• Micro Dies: Used for ultra-small tubes required in minimally invasive surgeries.
• Automated Calibration: Ensures precise outer diameter and roundness, reducing human error and enhancing repeatability.

Cooling & Cutting Units

• Cooling Tanks: Stabilize the tube’s shape using uniform temperature regulation.
• Automated Cutting Systems: Provide clean, precise cuts at programmable lengths to reduce waste and boost productivity.

3. Common Extrusion Techniques for Medical Tubing

• Single-Layer Extrusion: Standard process for uniform tubing.
• Co-Extrusion: Combines two or more materials to enhance strength, biocompatibility, or chemical resistance.

4. Choosing the Right Material for Medical Tubing

Material selection is critical to meeting functional and regulatory demands:

• PVC: Cost-effective and flexible, ideal for general use.
• Silicone: Biocompatible and suitable for implantable devices.
• Polyethylene (PE): Offers chemical resistance and soft flexibility for various medical applications.

5. Automation and Smart Control Systems

Modern medical extrusion lines rely heavily on automation to ensure precision. Key technologies include:

• Real-Time Monitoring Systems: Provide instant feedback for in-line adjustments.
• PLC-Based Control: Enables automated fine-tuning of speed, pressure, and temperature.
• Smart Connectivity: Supports Industry 4.0 integration for predictive maintenance and process optimization.

6. Ensuring Quality in Medical Tube Production

Strict quality assurance is non-negotiable in the medical sector. Essential practices include:

• Dimensional Checks: Confirm tubing meets tight tolerances.
• Material Compatibility Testing: Validate performance under sterilization and real-use conditions.

7. Future Trends in Medical Tube Extrusion

Innovation continues to reshape the field with advancements such as:

• Microextrusion: Enables production of ultra-thin, high-precision tubes for next-gen medical devices.
• Digitalized Manufacturing: Industry 4.0 tools improve traceability, production efficiency, and compliance.

8. Why Choose TwinScrew for Medical Tube Extrusion?

At TwinScrew, we specialize in designing and delivering complete medical tube extrusion lines tailored to your production needs. Our advantages include:

• Customizable extruders and die systems
• Advanced automation and control integration
• End-to-end technical support and consultation
• Proven track record in global medical manufacturing

From equipment setup to full-line solutions, TwinScrew is your reliable partner in medical tube extrusion.

Meet TwinScrew at K 2025 – Hall 12 / E54

TwinScrew will be attending K 2025, the world’s leading trade fair for plastics and rubber industry. Visit us at Hall 12 / E54 to connect with our team and learn more about our extrusion solutions. Mercedes, TwinScrew's business manager, will be on-site to explore how TwinScrew can help meet your production goals. See you at K!
