ANNTONG introduces Micro Liquid Silicone Rubber Injection Molding Machine, with compact design and ideal for medical parts manufacture

Micro Liquid Silicone Rubber Injection Molding Machine ( Micro-LIM )

ANNTONG introduces the new Micro-LIM (PDMS/LSR) Liquid Silicone Injection Molding Machine. Micro-LIM is ideal for clean room and medical parts manufacture. This is an ultra-compact molding machine designed for injection-molding of ultra-viscosity liquid resin.

．Injecting molding of “Liquid Silicone Rubber” or “Low-Viscosity & High-Clear PDMS” is possible.
．Can be performed the injection molding process without the dosing system.
．Precision molding based on precise weighing by power-driven plunger & unique shut-off valve.
．Far more excellent productivity in PDMS molding compared to casting.
．Compact in size & excellent in maintainability. It can be set up in clean booth in your laboratory.
．Molding produced in small quantities of resins (100g)：It's ideal for special & expensive materials tests.
．Capable to mold other thermosetting liquefied materials (epoxy or acrylic systems) well.

Main Specifications:
．Mold Clamping Force：2 ton
．Dimensions：W495 x D530 x H915 (mm)
．Target Materials：LSR, PDMS, EPOXY
．Drive：Motor, Air
．Control：3 Speed rates, 2 Pressure setting, Position / Pressure switchover control, etc.

Applications:

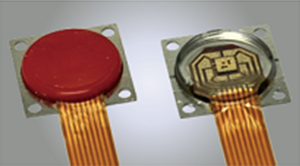

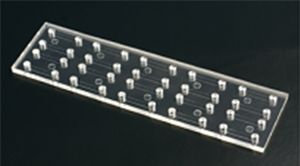

Tactile Sensor (LSR sealing molding) Micro Chemical Chips (Made of PDMS)

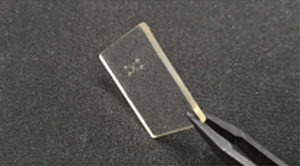

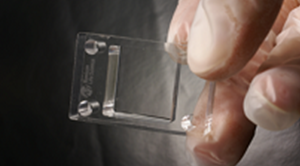

Cell culture vessels (Made of PDMS) Microchannel (Made of PDMS)
