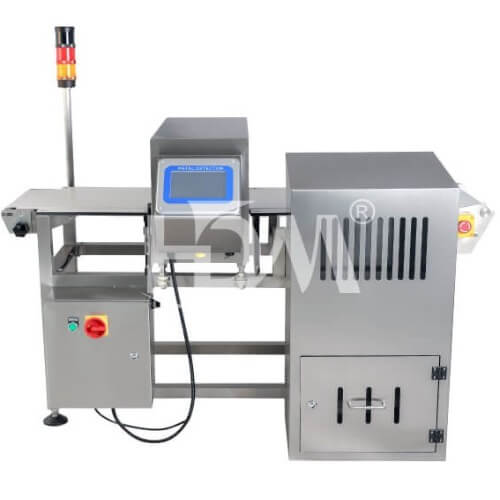

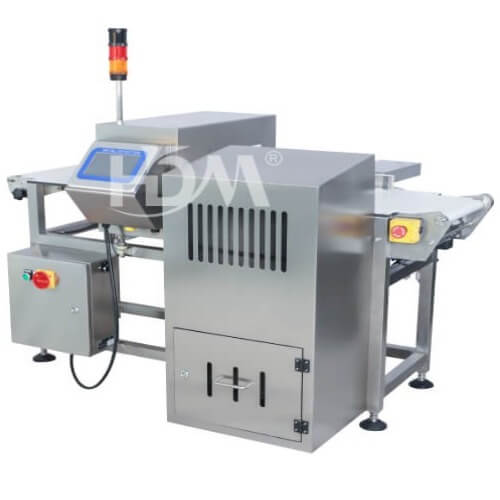

AC-RCB Conveyor Belt Type Metal Detector

Classification : Metal Detector

TAIWAN HIGHDREAM INTELLECTUALIZED MACHINERY CO., LTD.

Country: Taiwan

Phone: 04-22515064

Fax: +886 (4) 22515064

Contact Person: Nicole Yang

Inquiry Now

Widely used in industries of food, medicine, chemical and textile etc, to detect metallic impurities in small and middle-sized packet and reject it automatically.

7 inch touch screen with upgraded software.
Pneumatic rejecting device for unqualified product.
4 different operating levels with password.
Sound and light alarm.
6 languages and 99 programs for memory.
Lockable collecting bin.
System self-learning product, to replace complicate operation.
USB port for data outputting; Internet port for remote control.

ltem	Conveyor Belt Meta Detctor
Model	AC-RCB
Tunnel size	w350mm x H175mm
Passing through area	w300mm x H135mm
Detecting sensitivity	FEØ0.8mm,susØ 1.8mm
Belt width	310 mm
Conveyor belt speed	10-45 m/min
Transmission capacity	MAX 5kg
Power	220Vac,50/60 Hz,single phase,300W
Dimension	1531.7×1199.3×1357mm
Optional rejecting device	Air blow / pusher / flipper

Note: When machine detects dilfferent products, it will have different sensitivity. The final sensitvity on your product depends on product effect, working environment and place of metal.
