Classification : Sheet Cutting
Country: Taiwan
Phone: 886-6-3562788 (21)
Fax: 886-6-3562777
Contact Person: Peggy
- PLC computer control system.
- Non-hydraulic design, no pollution, low noise, best for using in dustless room.

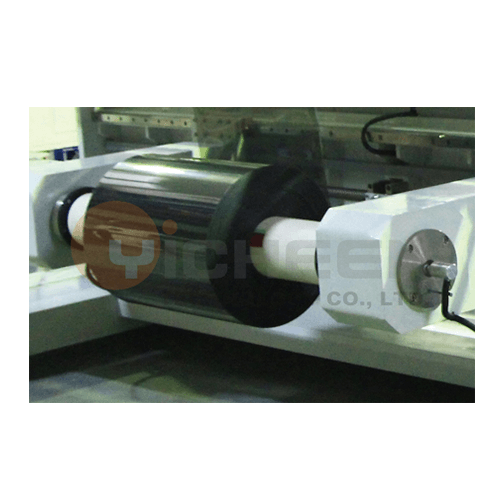

- Active unwind and servo motor control feeding length, make sure precise cutting length.
- Anti-static PU roller drive for reducing scrape happened.
- Adopt air pressure slitting knife.
- Two steps type feeding system to keep slitting knife running stably.
| Model | ECR-600S | ECR-800S | ECR-1000S |
| Cuttingwidth | MAX.550mm | MAX. 750mm | MAX. 950mm |
| Material thickness | 0.10~2mm | 0.10~2mm | 0.10~2mm |
| Cutting length | 1~2000mm | 1~2000mm | 1~2000mm |
| Cutting speed | 70 times/min | 70 times/min | 70 times/min |
| Cutting precision | +/-0.10mm | +/-0.10mm | +/-0.10mm |
| Machine size | L3460xW2000xH1650 mm | L3460xW2200xH1650 mm | L3460xW2400xH1650 mm |
| Model | ECR-1200S | ECR-1400S | ECR-1700S |
| Cutting width | MAX.1150mm | MAX.1350mm | MAX.1650mm |
| Material thickness | 0.10~2mm | .15~2mm | 0.15~2mm |
| Cutting length | 1~2000mm | 1~2000mm | 1~2000mm |
| Cutting speed | 70 times/min | 70 times/min | 70 times/min |
| Cutting precision | +/-0.10mm | +/-0.15mm | +/-0.15mm |
| Machine size | L2550xW2250xH1650 | L2750xW2250xH1650 | L2750xW2650xH1650 |
Specifications are subject to change without notice for design improvement.
The specification can be designed by customers demand.

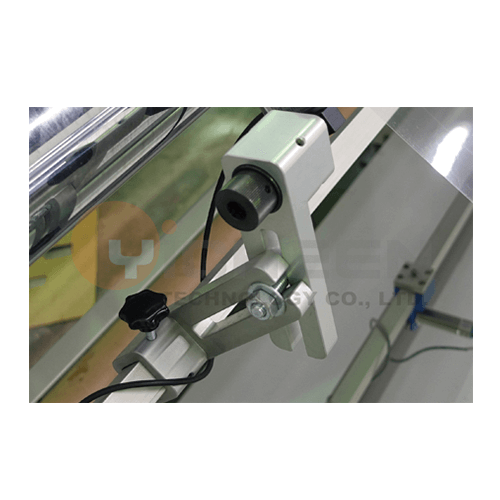

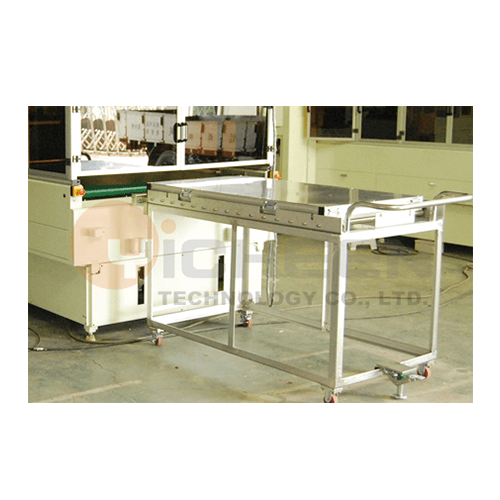

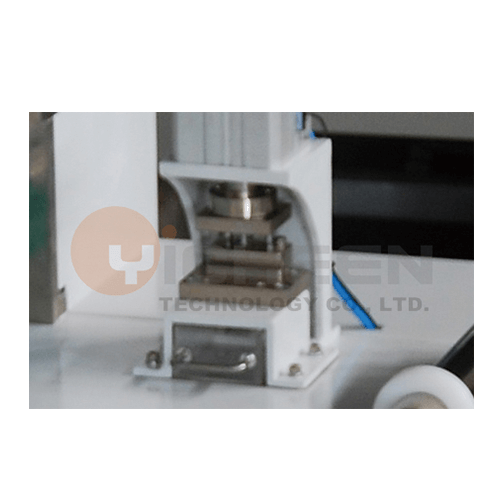

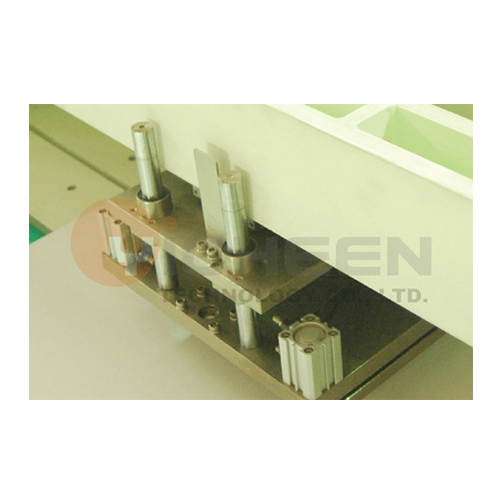

EPC, Punch hole device, Die cut device, Stacking for soft material, Shaftless device
Film for Solar power and FPD industry such as EVA, TEDLAR, Backsheet, ITO, PET, MICRO, Lens, Copper Foil.
