Classification : Slitting and Rewinding
Applications: Packaging Others BOPP Film BOPP
Country: Taiwan
Phone: 886-6-3562788 (21)
Fax: 886-6-3562777
Contact Person: Peggy
Inquiry Now
  • Machine speed 5M~300M/min
  • PLC and HMI computer system
  • Algorithm type auto tension control system
  • Equipped with three sets of motors connectively speed control, Main driving roller controlled by independent motor, up & down rewind shafts
  • Various of slitting knives by option combination, air blade, round razor, industrial flat blade for different types of slitting demands
  • Rewind press roller system quipped with center & surface type rewinding mechanism which can keep the press roller and the finished product the shortest distance in process, but also can press auxiliary finished product in order to satisfy multi-material requirements by slitting
  • Equipped meter counter device which is auto stop while the meter reached
  • Unwind & rewind diameter reached, it is auto stop

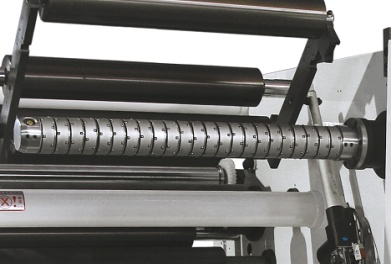

  • Rewind shaft can be quick changed to air shaft and differential shaft
  • Scrap rewind system can be applied for left & right movement in surface type or applied for air blowing type by options
Parent web width 1300; 1600mm
Parent web diameter 800mm (max)
Rewind inner core Ø77mm
Rewind web 180mm (max)
Min. Slit width 48mm
Machine speed Max. 240M/min

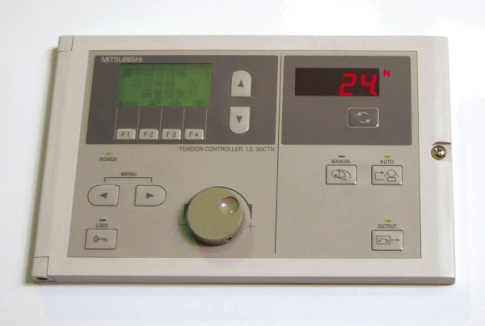

  • Tension control system

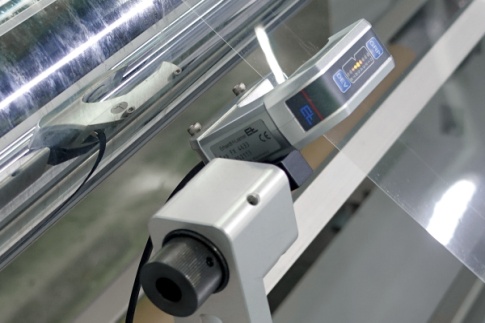

  • EPC control system

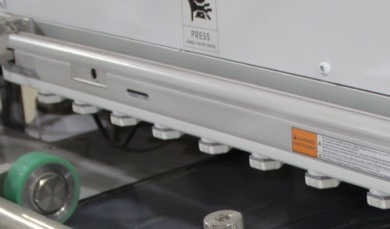

  • Static elimination control system
  • Differential shaft
  • Hydraulic lifting mechanism

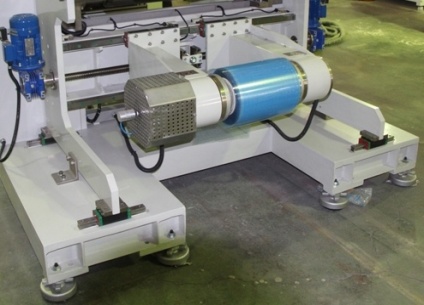

  • Shaftless type of unwind set
  • Collection platen device

BOPP tape, cellophane tape, masking tape… (according to customer informed material)
