Sheet Cutting Machine For Solar Power and FPD Film

Sheet Cutting Machine For Solar Power and FPD Film

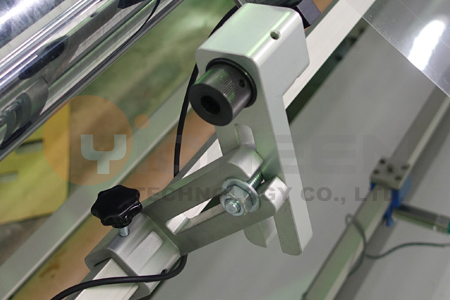

EPC

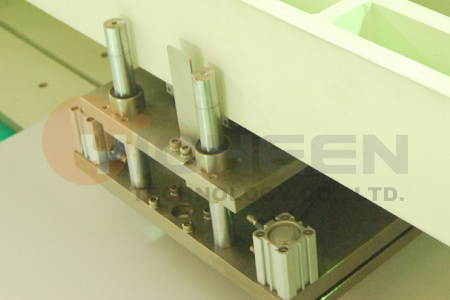

Punch hole device
Die cut device
Stacking for soft material
Shaftless device
Classification : Sheet Cutting
Applications: Optical Elements Others Lenses Plastic Films
YICHEEN TECHNOLOGY CO., LTD.
YICHEEN TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-6-3562788 (21)
Fax: 886-6-3562777
Contact Person: Peggy
Inquiry Now
  • Friendly interface, PLC computer touch-panel screen control system.
  • Non-hydraulic design, no pollution, low noise, best for using in dustless room.
  • Servo motor control feeding (for EVA sheet cutting tolerance +/-1mm).
  • Modulating control for tension control, it keeps cutting stable.
  • Anti-static PU roller drive for reducing scrape happened.
  • Optional devices: Shaftless unwind stand (electrical left/right moving), EPC (Edge Position Controller), Slitter, Punching device (electrical left/right moving), Automatic stacker, Static eliminating device.
Model ECR-800 ECR-1000
Materia width MAX. 750mm MAX. 950mm
Material thickness 0.15~2mm 0.15~2mm
Cutting length 1~2000mm 1~2000mm
Cutting speed 70 times/min 70 times/min
Cutting precision +/-0.10mm +/-0.10mm
Model ECR-1200 ECR-1400 ECR-1700
Materia width MAX. 1150mm MAX.1350mm MAX.1650mm
Material thickness 0.15~2mm 0.15~2mm 0.15~2mm
Cutting length 1~2000mm 1~2000mm 1~2000mm
Cutting speed 70 times/min 70 times/min 70 times/min
Cutting precision +/-0.10mm +/-0.15mm +/-0.15mm

Specifications are subject to change without notice for design improvement.

The specification can be designed by customers demand.

EPC,Punch hole device,Die cut device,Stacking for soft material,Shaftless device

Film for Solar power and FPD industry such as EVA, TEDLAR, Backsheet, ITO, PET, MICRO, Lens, Copper Foil.
