Classification : PRODUCTS
Country: Taiwan
Phone: 886-6-2531251
Fax: 886-6-2535271
Contact Person: Ping Shun Huang

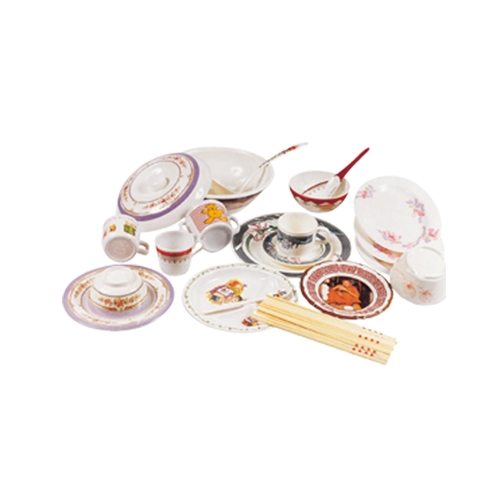

● Melamine dinner sets, urea, bakelite, fiber etc, heated compression material products.
| SPEC | TYPE | FC-37 | FC-50 | FC-60 | FC-70 | FC-80 | FC-100 | FC-150 | FC-200 | FC-300 |
| CLAMPING FORCE | TON | 37 | 50 | 60 | 70 | 80 | 100 | 150 | 200 | 300 |
| PLATE SIZE | MM | 330x355 | 355x380 | 400x405 | 405x455 | 475x480 | 530x605 | 660x710 | 720x720 | 860x915 |
| STROKE | MM | 300 | 300 | 330 | 360 | 410 | 460 | 480 | 500 | 500 |
| DAYLIGHT | MM | 530 | 580 | 600 | 610 | 630 | 750 | 800 | 820 | 850 |
| OIL TANK CAPACITY | GAL | 50 | 60 | 60 | 70 | 70 | 100 | 100 | 120 | 200 |
| PUMP PRESSURE | KGF/CM2 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| MOTOR | HP | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 7 1/2 | 10 |
| HEATER CAPACITY | KW | 3 1/2 | 4 | 5 | 5 | 6 | 8 | 10 | 12 | 20 |
| MACHINE DIMENSIONS | L | 1410 | 1510 | 1540 | 1600 | 1650 | 1780 | 1950 | 2180 | 2400 |
| MM W | 1100 | 1100 | 1170 | 1400 | 1450 | 1450 | 1500 | 1600 | 1700 | |
| H | 1850 | 1910 | 2200 | 2100 | 2120 | 2480 | 2500 | 3120 | 3200 | |
| MACHINE WEIGHT | KG | 1250 | 1550 | 2000 | 2400 | 3200 | 3800 | 4500 | 6500 | 9600 |
| WRAPPING WEIGHT APPROX | KG | 1550 | 1850 | 2400 | 2800 | 3600 | 4300 | 5000 | 7200 | 10200 |
