Introduction

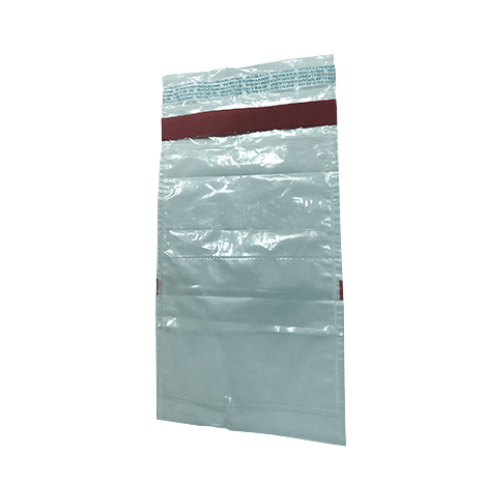

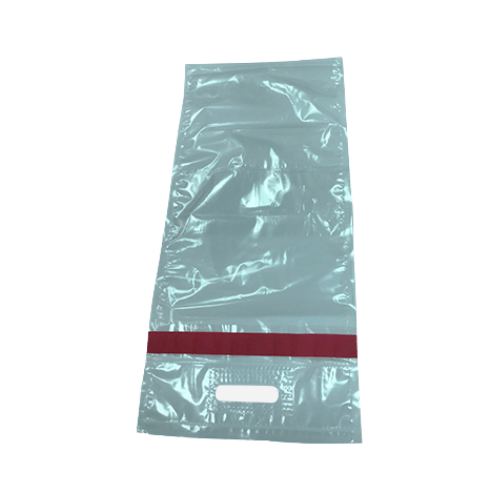

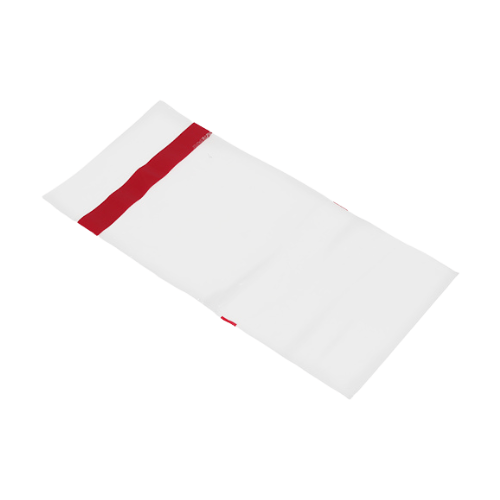

- LY-800DHL is a courier bag making machine. Its unique design of continuous hot air sealing system seals outer pocket film smoothly and efficiently. With other options, it can produce not only courier bag but security bag.
Features
- Servo-driven feeding system with one set of photocell for printed bag.
- Human-machine interface for easy setting.
- Auto-lifter unwind stand with edge position control for jumbo roll.
- Continuous hot air sealing system for outer pocket.
- Triangle folding device.
- Self-adhesive tape applicator.
- Auto tension control.
- Other options are available depends on sample bag.
Model
|
Bag Size | Output | Material | Film Thickness (mm) | Heater | Air compressor | |
Bag length (mm) | Bag width (mm) | (Not included) | |||||
LY-800DHL | 250-600 | 250-600 | 40-80 bags/per min | PE | 0.04-0.08 | 2.6KW | 5HP |
Model
|
Power Required | Machine Dimensions | Net Weight | Packing Size | Gross Weight | ||
L(M) | W(M) | H(M) | (KG) | (2 Pallets) | (KG) | ||
LY-800DHL | 8KW | 8.7 | 4 | 2 | 2500 | 3.7m x 2.3m x1.8m 5m x 2.3m x 2.1m |
3000 |
