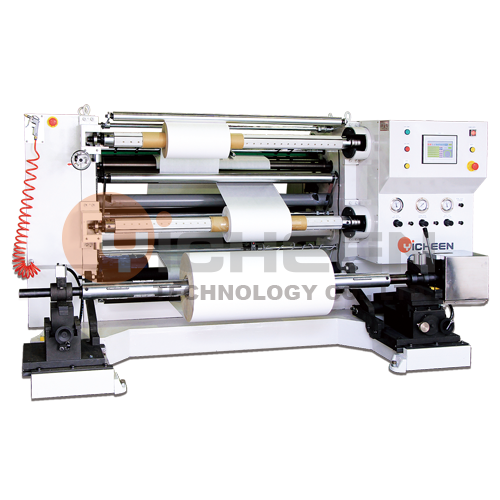

Economic Type Slitting Machine

Classification : Slitting and Rewinding

Applications: Packaging Recycling Materials Aluminum Foil PP Non-Woven Fabric

YICHEEN TECHNOLOGY CO., LTD.

Country: Taiwan

Phone: 886-6-3562788 (21)

Fax: 886-6-3562777

Contact Person: Peggy

Video Inquiry Now

High speed rewind, machine speed is 1~300M/min
duplex rewinder
Swing out unwind and rewind air shaft.

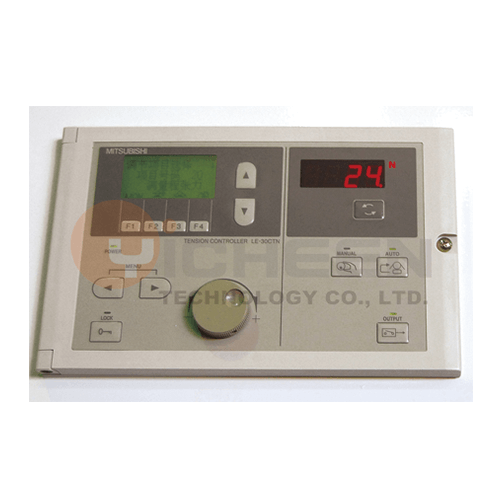

Equipped with automatic tension controller and load cell, tension value digitally display, increase tension control precision and stable.

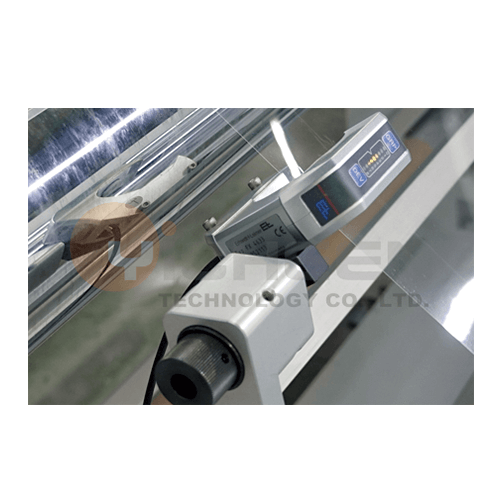

Equipped with EPC/LPC position control to ensure accurate slitting position.

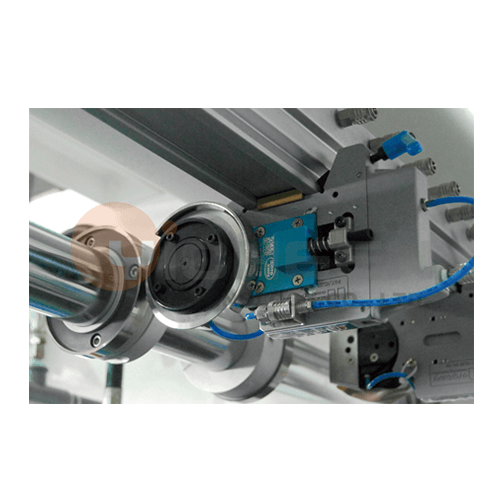

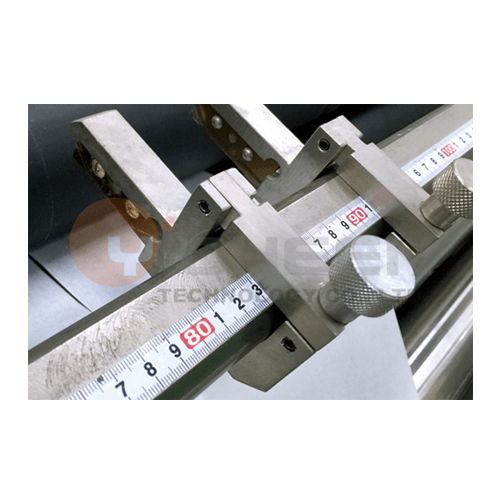

Equipped with razor cutter and circular shear cutter.

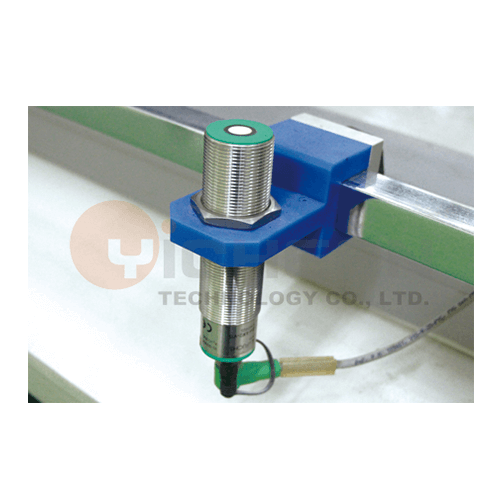

Rewind section equip with diameter-detector to control rewind motor speed.
Equipped with pneumatic press roller on re-winder to eliminate the air go into rewind film and avoid film slip.
Full digitally computer control system, equipped with PLC and touch panel system ,error message alarm and indication are displayed on the screen.

Model	S2M-V
Available Width	0.6M/1.0M/1.3M/1.6M
Min. Cutting Diameter	20mm up
Max. Unwind Diameter	800mm
Max. Rewind Diameter	500mm/600mm
Un/Rewind Shaft Diameter	76.2mm/152mm
Machine Speed	15-300M

Specifications are subject to change without notice for design improvement.

The specification can be designed by customers demand.

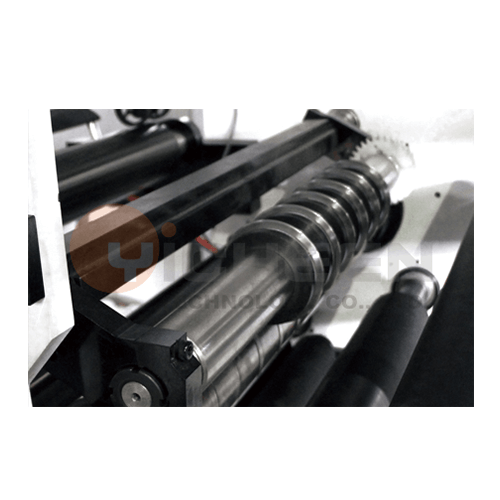

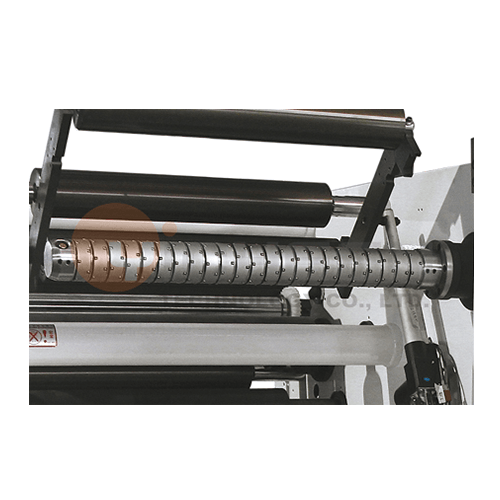

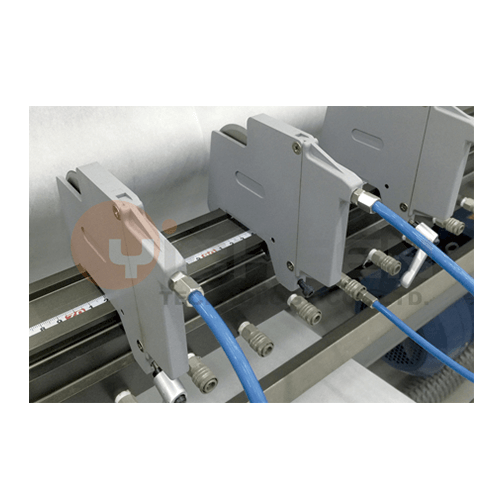

Differential shaft, Air Slitter, Tension control system, EPC system, Shear cutter (up & down), Diameter detector, Meter counter, Flat blade, Air knife

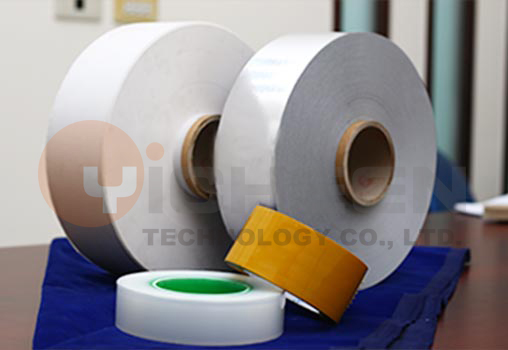

OPP、BOPP、PET、PVC、transfer paper、foil、Non-woven cloth…etc.
