Country: Taiwan
Phone: 886-6-3562788 (21)
Fax: 886-6-3562777
Contact Person: Peggy
- Machine speed 5M~240M/min
- PLC and HMI computer system
- Equipped with a surface press roller device of rewinding roll smoothly
- Equipped with AC motor for single power driving and inverter speed control
- Equipped industrial flat blade which is suitable for slitting film tape
- Auto tabbing, while set length reached, the rewind shaft is auto switched
- Equipped with four-shaft full auto switch rewind, continuous rewind, auto shaft switched by setting length
- Equipped with surface rewind press roller and independent sliding sleeve device
- Auto rewind rolls smoothing & cutting off device, scrap rewind device
| Parent web width | 1300; 1600mm |
| Parent web diameter | 800mm (max) |
| Rewind inner core | Ø77mm |
| Rewind web | 150mm (max) |
| Min. Slit width | 45~48mm (標準規格 Standard specs.) |
| Machine speed | Max. 240M/min |

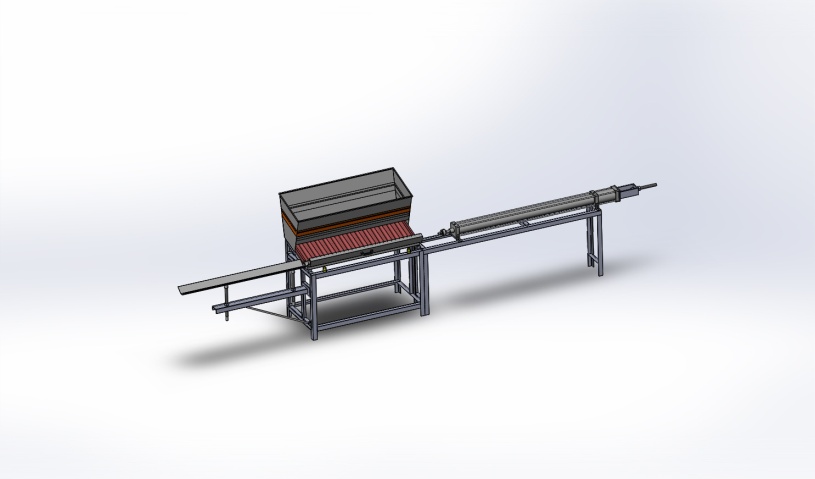

- Paper core loader device

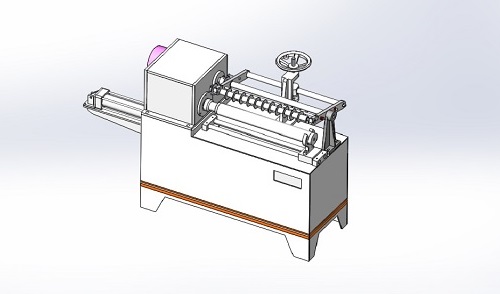

- Core cutter device
- Static elimination control system
- Hydraulic lifting mechanism
- Soundproof cover
BOPP tape, cellophane tape, masking tape… (according to customer informed material)
